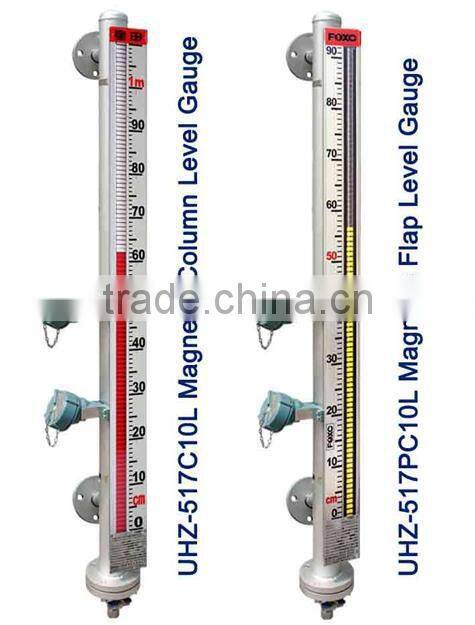

UHZ 517C10 magnetic float level gauge for liquid level controller with level alarm switch

Measure Range:

150~8000mm (center distance) or on request.

Nominal Pressure:

PN2.5MPa  Class 150LB ANSI

Working Pressure:

≤1.875Mpa 112.5LB

Working Temperature

200°C   392K

Medium Density

500~2000kg/m³

Chamber(bypass tube)

Φ63.5×2.5 mm

Process Connection

Factorty Standard:  DN25 PN1.0,  PN1.6,  2.5MPa  HG20592-97;

150LB 1" ANSI B16.5;

Optional std:

ANSI B16.5  1/2"~ 4";

DN10-DN100 GB/T 9112-2000;

JB/T 79.1-94 SH3406-1996

DIN 2635;  DN10-DN100;

DIN 2527;  DN10-DN100

10A~100A  JIS 10K FF RF;

1/2"~4" JPI  150LB RF

Chamber/Flange/ Wetted Material

304, 316, 316L, 316Ti, 321, 1.4301, 1.4435, 1.4401,

1.4571, 1.4783, 0Cr18Ni9, 1Cr18Ni9Ti, 00Cr17Ni14Mo2,

0Cr17Ni12Mo2, 0Cr18Ni2Mo2Ti

Magnetic Float

Its size depends on liquid density

Material: Titanium, 316SS or 316L SS

Optional Items

1. Three-magnet level switch
2.  Heating Jacket
3. Depth Vacuum insulation jacket
4. Coil type heating jacket
5. Drain/Vent valves
6. Remote Transmitter(4~20mA, two/ three wire,HART)
7. Magnetostrictive level transmitter
