Manufacturer 1000X600X300 Galvanized Metallic Enclosure , Meter Box Electrical Suppliers / Electronic Box

Yueqing Yomin Electric Co., Ltd.
Manufacturer 1000X600X300 Galvanized Metallic Enclosure , Meter Box Electrical Suppliers / Electronic Box thumbnail-1
Manufacturer 1000X600X300 Galvanized Metallic Enclosure , Meter Box Electrical Suppliers / Electronic Box photo-1
US$ 10 - 30 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YOMIN Meter box
Model Number:
1000 X 600 X 300
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name YOMIN Meter box
Model Number 1000 X 600 X 300
Protection Level IP65
Type Control Box
External Size 1000X600X300(WxHxL)mm

Manufacturer 1000X600X300 Galvanized Metallic Enclosure , Meter Box Electrical Suppliers / Electronic Box

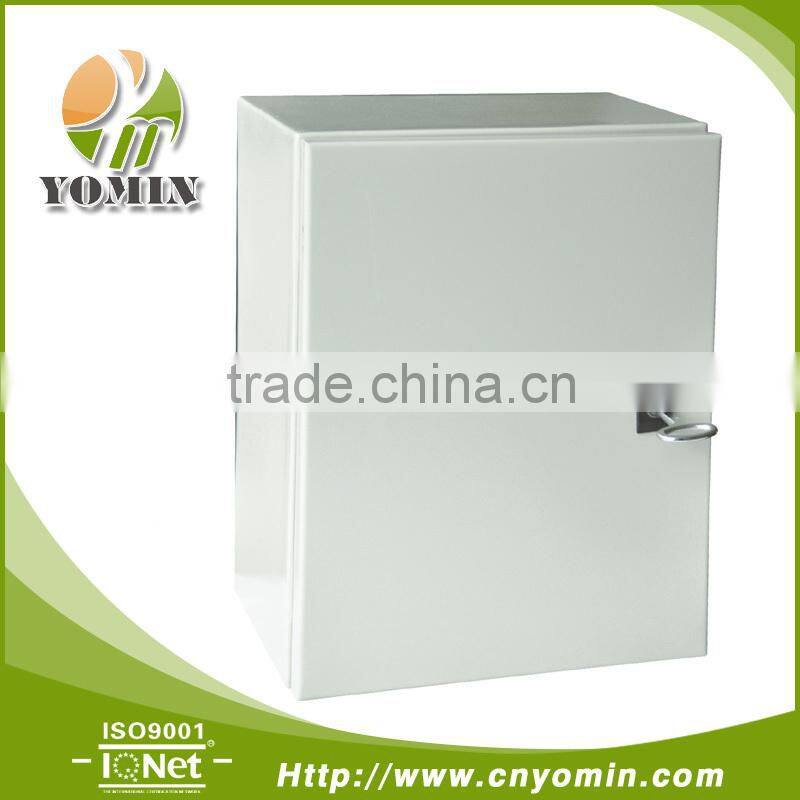

[1000X600X300] Galvanized Metallic Enclosure

Model: 1000X600X300

 Manufacturer 1000X600X300 Galvanized Metallic Enclosure , Meter Box Electrical Suppliers / Electronic Box

Product Description

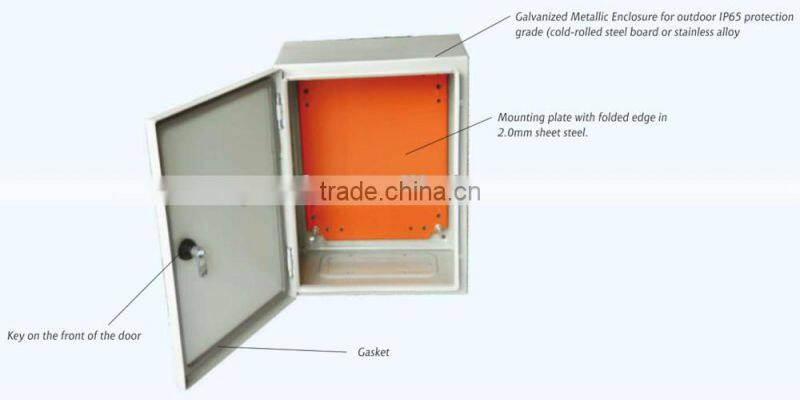

Galvanized Metallic Enclosure for outdoor IP65 protection grade (cold-rolled steel



board or stainless alloy), Mounting plate with folded edge in 2.0mm sheet steel.



Key and lock are provided on the front of the door. We provide many sizes of the



products for customers' solution.

Manufacturer 1000X600X300 Galvanized Metallic Enclosure , Meter Box Electrical Suppliers / Electronic Box

Specifications



  • Rated Insulated Voltage.............................................690VAC
  • Size....................................................................1000X600X300(WxHxL)mm
  • Lock & Key..................................................................Provided
  • Standards................................................................... IEC60947
  • IP / NEMA Rating.........................................................IP65
  • Mounting......................................................................Surface Mounting
  • Working Temperature................................................-20℃~+80℃
  • Sample Service...........................................................Pay to Provide
  • Quality Assurance......................................................24 months
Technical parameters



SizeLock & KeyProtection GradeCase Qty.
W X H X L (mm)IP/NEMA(Pcs.)
200 X 200 X 150ProvidedIP651
250 X 200 X 150ProvidedIP651
300 X 200 X 150ProvidedIP651
300 X 200 X 200ProvidedIP651
300 X 300 X 200ProvidedIP651
300 X 300 X 250ProvidedIP651
400 X 300 X 150ProvidedIP651
400 X 300 X 200ProvidedIP651
400 X 300 X 300ProvidedIP651
400 X 400 X 150ProvidedIP651
400 X 400 X 200ProvidedIP651
400 X 400 X 300ProvidedIP651
500 X 300 X 150ProvidedIP651
500 X 300 X 200ProvidedIP651
500 X 300 X 250ProvidedIP651
500 X 300 X 300ProvidedIP651
500 X 400 X 150ProvidedIP651
500 X 400 X 200ProvidedIP651
500 X 400 X 250ProvidedIP651
500 X 400 X 300ProvidedIP651
500 X 500 X 150ProvidedIP651
500 X 500 X 300ProvidedIP651
600 X 400 X 150ProvidedIP651
600 X 400 X 200ProvidedIP651
600 X 400 X 300ProvidedIP651
600 X 500 X 200ProvidedIP651
600 X 600 X 150ProvidedIP651
600 X 600 X 200ProvidedIP651
700 X 500 X 200ProvidedIP651
700 X 500 X 250ProvidedIP651
700 X 600 X 200ProvidedIP651
800 X 600 X 200ProvidedIP651
800 X 800 X 200ProvidedIP651
800 X 800 X 300ProvidedIP651
1000 X 600 X 200ProvidedIP651
1000 X 600 X 250ProvidedIP651
1000 X 600 X 300ProvidedIP651
1000 X 800 X 200ProvidedIP651
1000 X 1000 X 250ProvidedIP651
1000 X 1000 X 300ProvidedIP651
1000 X 800 X 300ProvidedIP651
1400 X 600 X 300ProvidedIP651
1400 X 800 X 300ProvidedIP651
1600 X 800 X 300ProvidedIP651
1600 X 1000 X 300ProvidedIP651
1800 X 1000 X 300ProvidedIP651
