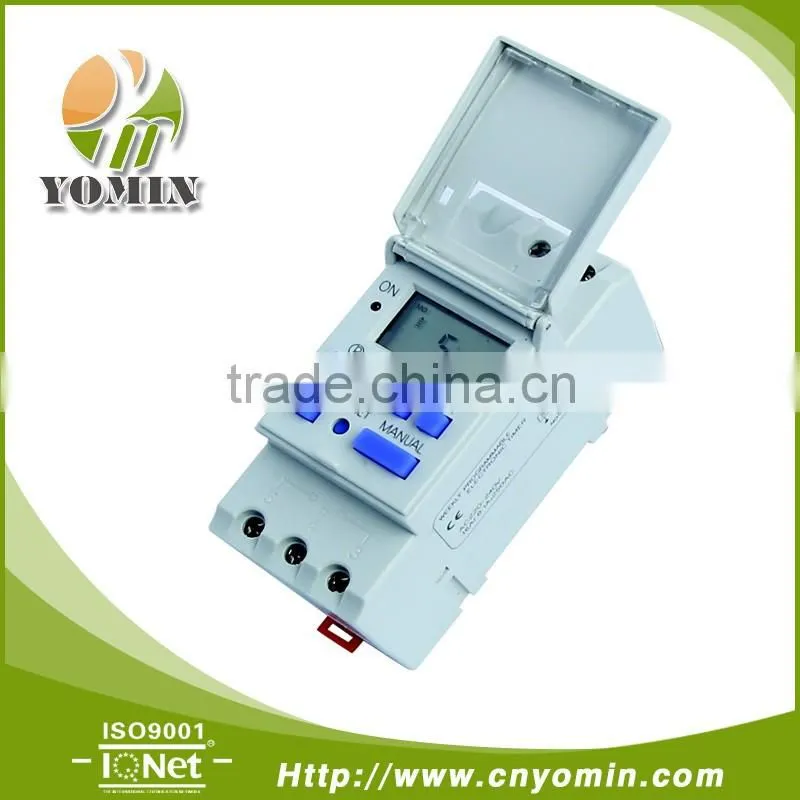

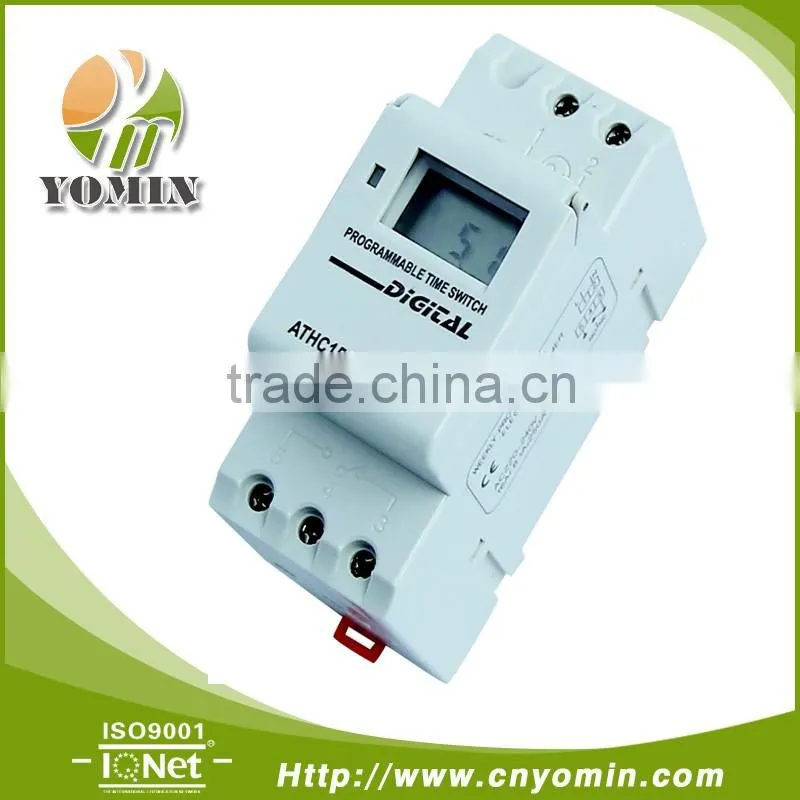

Digital Programmable Time Switch
Function:
DIN RALL installion
LCD display, Day /week program
18 ON/OFF program
18 times pulse grograms
Lithium battery power reserve 3 years, when electric cut off
Technicai data:
Voltage rating : AC220V 50/60Hz
Voltage limit : 180-250
Hysteresis:≤2sec/day (25°C )
On/off operation: 18on & 18 off, 18 times pulse
Power consumpyion:5VA(max)
Disply: LCD
Service life:mechanacally 10 7
Electricallly 10 5
Minimum interval : minute (pulse/cycle 1 s)
Weight :approx 150g
Time basis :quartz
Ambient humidity : 35-85%rh
Ambienty temperature :-10+40°C
When the battery reserve ,you cansee the battery mark on the LCD dispally.
If use the power, the battery mark will disappers.
Count down :1 sce-99 min 59 sec
Switching power :16A 250VAC (COSφ=1)
10A 250VAC (COS φ=0.60)
Incandescent lamp load :2300W
Halogen lamps Non compensated, series compensated 1000VAC, Parallel compensated 400VA(42µf)
Switching contact :1 changeover switch
Power reserve :3 years (lithium battery)

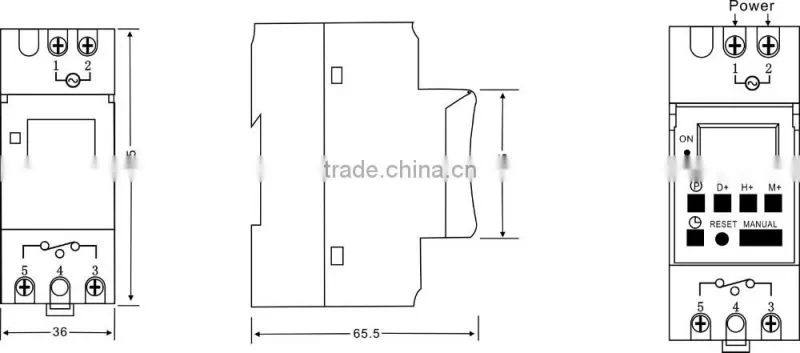

Dimensions:
