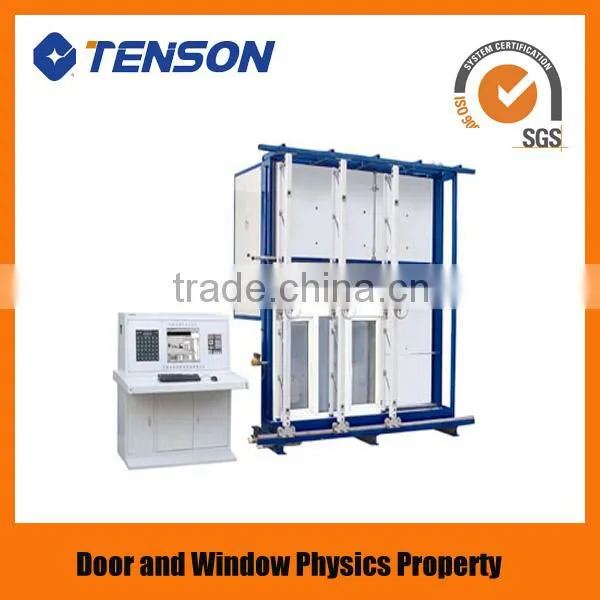

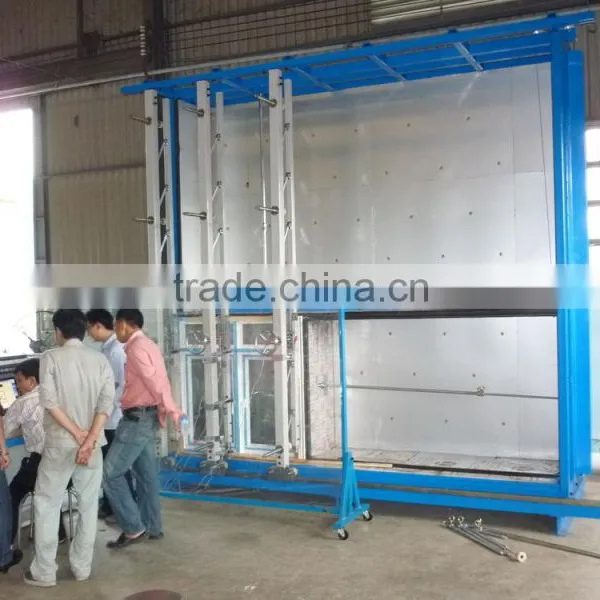

air tightness and water tightness test machine window and door testing machine
Main functions
CW series door and window physical property tester is the latest computer control door and window testing equipment and conforms to GB/T 7106~7108-2002. This series machines are applicable for the physical property test of building outer windows, such as wind pressure resistance ability, air tightness and water tightness. It is ideal testing instrument for project quality testing section, product quality testing section, university and college and research institution.
Product features

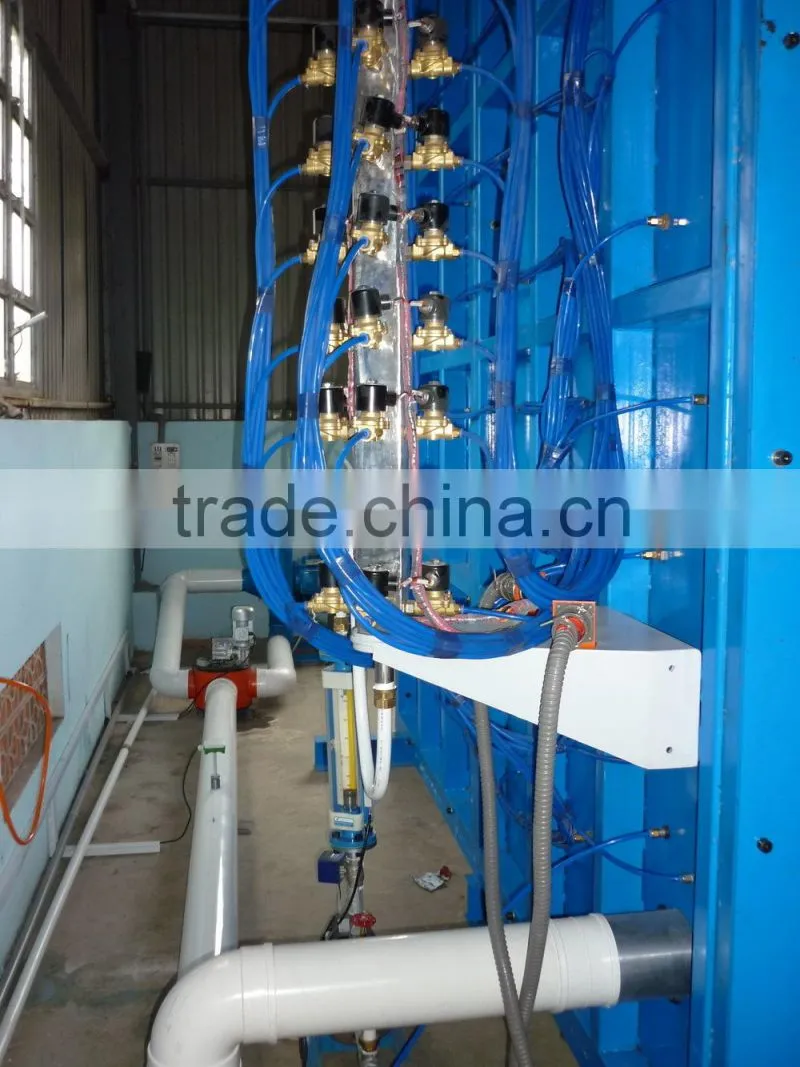

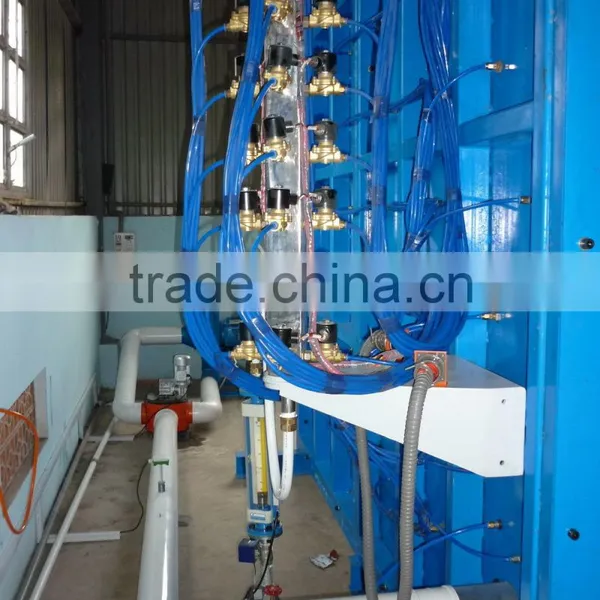

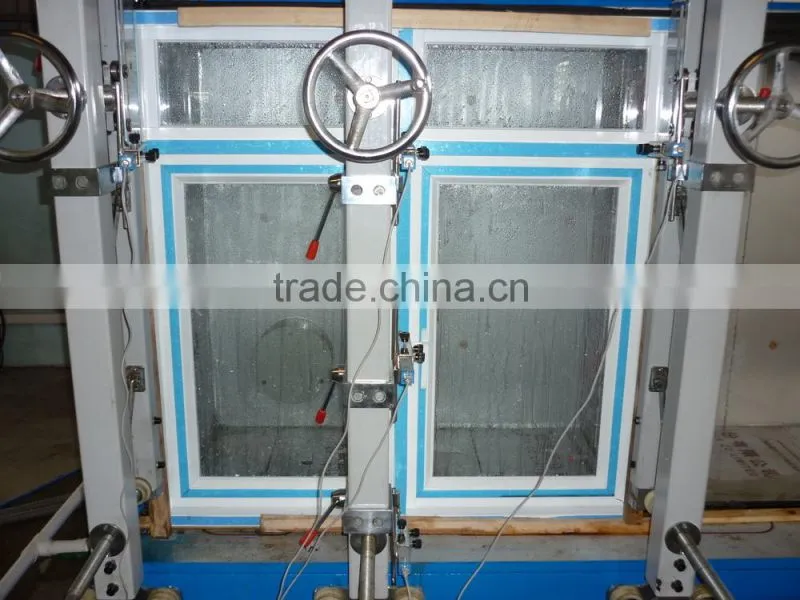

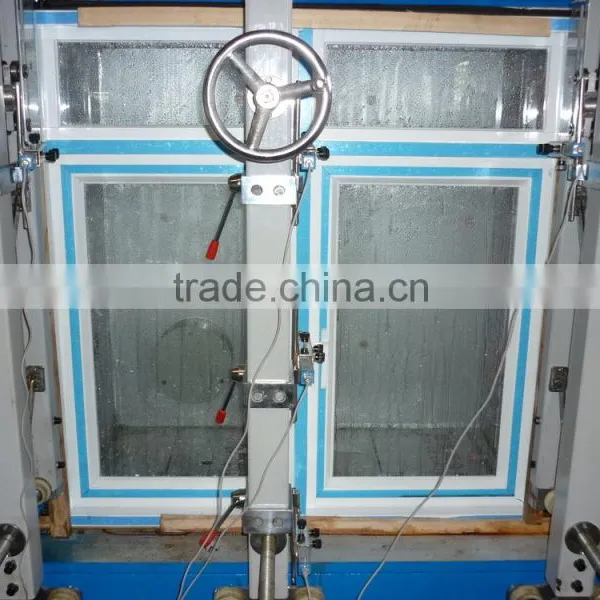

The fan of this machine adopts variable frequency control. And the monitoring system uses embedded Monitor, uses the unique control algorithm and enables it to be more accurate, stable and reliable. Solenoid valve controls spray, operates conveniently. Improved pilot clamping bodies can save more time and effort.
CWWS Computer control type:

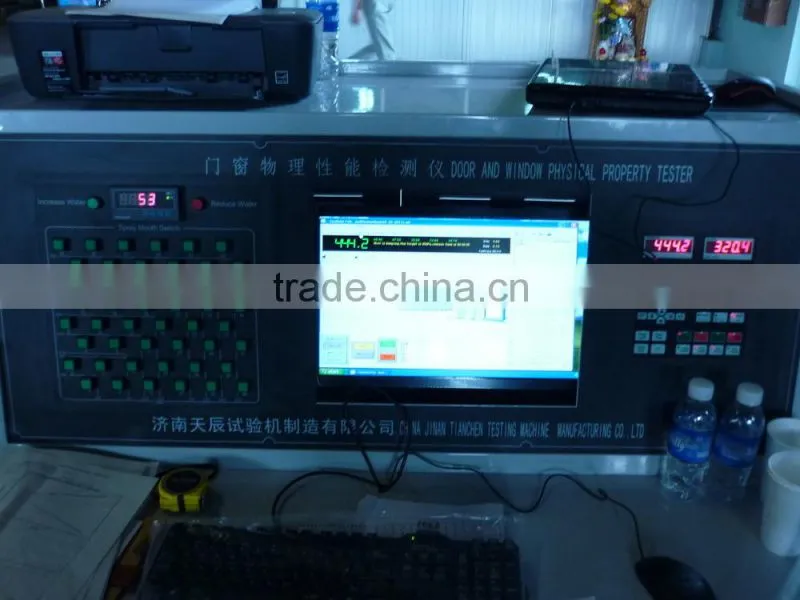

Digital tube displays the pressure of wind and the air flow; LCD displays the deformation and deflection. Only to press a button to accomplish detection steps, it can operate in order at the standard steps then finish the whole test. Monitor automatically calculates the deflection and the value of P1, P2, P3, and the preserve for view, and will not lose the data when power off. The judgment of results completes artificially. It communicates by Ethernet The software can automatically finish test by “one key type”, evaluate testing results and print the reports. It can complete the by semi-automatically control when testing machine is offline, which is real double-control and double-display.
Main Technical Specifications
Water tightness test:
Range of water flow supply:100-1000L/h Accuracy levels:1.5;
Range of tricking water:2-3L/m2.min;
Range of control pressure:+100Pa~+5000Pa;
Accuracy:<±2% ;Resolution:1Pa;
Air tightness test:
Span of flux:0~520m3/h Precision levels:1.5;
Range of controlling pressure:±10Pa~±150Pa; Accuracy:<±1Pa;
Resolution of pressure:0.1Pa;
Properties of wind pressure test:
Range of regulation:-5000Pa~+5000Pa;Accuracy of sensor:0.2%;
Range of controlling pressure:±100Pa~±5000Pa Precision:<±2%;
Resolution of displacement:0.01mm;Resolution of pressure:1Pa;
Fluctuating period of compression:3s-5s;
Fluctuating time of each grape:5min;
Control mode: Computer control full automation and programmed control semi automation;
Power supply:380V±10%, 50Hz
1.Client
We treasure and try to understand all the different needs of our clients and seek to forge a long term professional relationship with them. The satisfaction of each and every customer is our main goal and motivation in conducting our business.
2. People
We work as a team and treat each other with respect. Our solid, capable and knowledgeable team is valued as the greatest asset and an integral part of the business.
3. Product
Our products are of HIGH quality standards and always come with certificate of compliance by the manufacturers.
4. Performance
We aim to achieve high level of performance and satisfaction to both our client and people, which include delivering high quality services and treating people with integrity.
5. Service
You can come to visit our factory if possible, we will pick you up at the airport and let our engineer to show you the details about our machines; We can also provide the service that our engineer go to your workshop to install the machine
Warranty
The warranty of all our testing machines is one year.
During this warranty, it is free to replace the spare parts.
Without this warranty, it only charges the cost of the spare parts.
All our testing machines enjoy a long life after-sales service.
