Home > Products > 12. Automatic Voltage Stabilizer > Manufacturer Three phase AC Voltage Regulator , 1500VA Input 380V Regulator /

Manufacturer Three phase AC Voltage Regulator , 1500VA Input 380V Regulator /

FOB Price

US$ 27 - 29 / Piece

1 Piece(Min. Order)

Port Ningbo or Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	YOMIN regulator
Model Number	TSGC2-1.5 regulator	Usage	Other, voltage regulator
Phase	Three Phase	Current Type	AC

Product Description

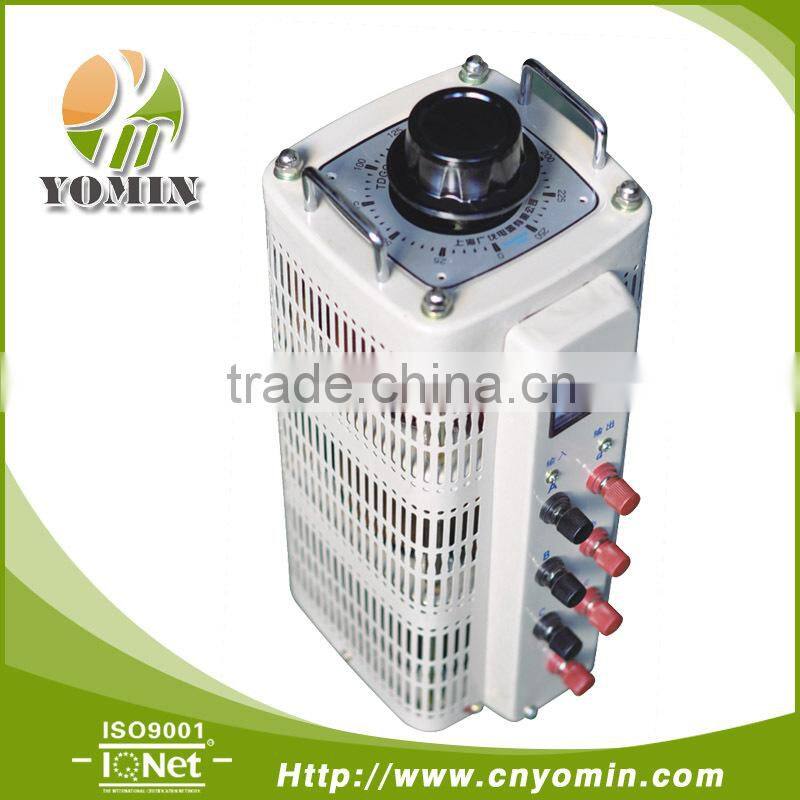

Manufacturer Three phase AC Contact Voltage Regulator

Model: TSGC2-1.5

Product Description

The Voltage regulators (Variac) are used to adjust the voltage from 0 volts up to

the maximum voltage for which they have been designed and among the most

usuall applications. No additional wave from distortion. The main applications are:

Laboratory control equipment.
Lighting equipment.
Temperature controls.
Motor speed control.
Controlling of other transformers.
Etc.

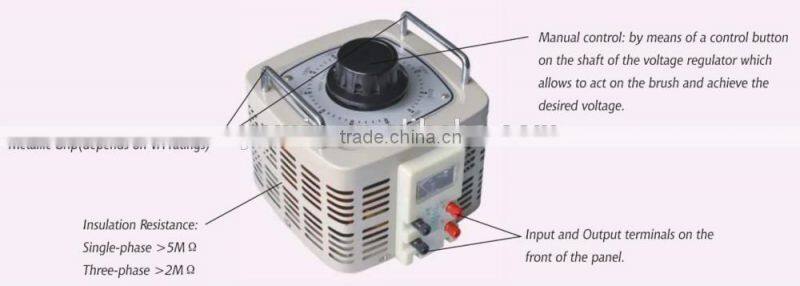

Manually Operated Rotary Knob to control output voltage, by means of a control

button on the shaft of the voltage regulator (Variac) which allows to act on the

brush and achieve the desired voltage. The voltage can be smoothly varied

between turns as the brush has a relatively high resistance (compared with a

metal contact) and the actual output voltage is a function of the relative area of

brush in contact with adjacent windings.

In international, some countries call voltage regulator as Variac or variable

transformer, or variable autotransformer.

Features

Capacity.............................................................1,500VA
Output Current..................................................2A
Output................................................................0~430V AC
Frequency.........................................................50/60Hz
Input...................................................................380V AC
Insulation Resistance......................................>2MΩ
No. of Phase......................................................Three-Phase
Winding Material...............................................100% Copper
Max.Temperature..............................................60℃
Insulation Class................................................Class B (130 ℃)
IP/NEMA Rating.................................................IP20
Variable Operation............................................Manually Operated Rotary Knob
Portable Carrying Grip.....................................Provided
Pollution Rating................................................Class III
Analog Voltmeter Display................................Provided
Housing Material...............................................Shock-Proof Metal
Voltage Setting..................................................Manual Control
Standards........................................................VDE0550, IEC204-1, IEC61588, EC439
Sample Service.................................................Pay to Provide
Quality Assurance............................................18Months
Item Condition...................................................Brand-New

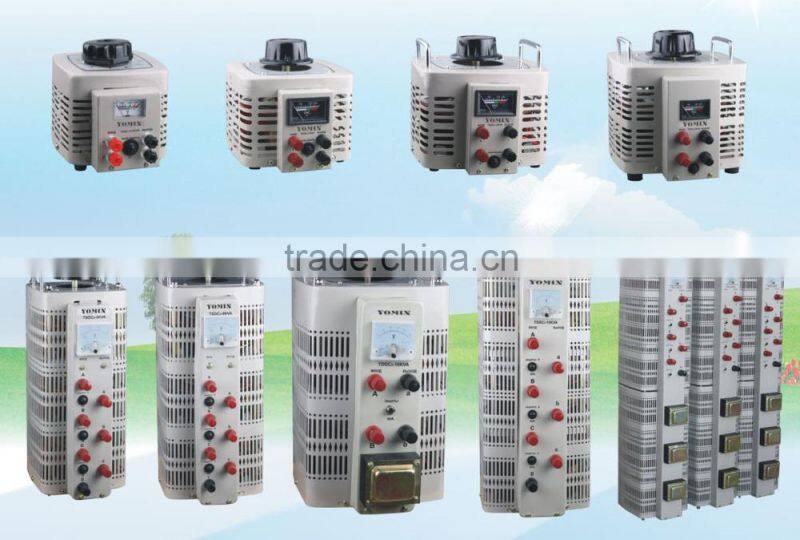

Selection Form

Item	Capacity	Input Voltage	Output Voltage	Output Current	Case Qty.
Model	(kVA)	(V)	(V)	(A)	(Pcs.)
TSGC2-1.5	1.5	380	0~430	2	2
TSGC2-3	3	380	0~430	4	1
TSGC2-6	6	380	0~430	8	1
TSGC2-9	9	380	0~430	12	1
TSGC2-10	10	380	0~430	12	1
TSGC2-15	15	380	0~430	20	1
TSGC2-20	20	380	0~430	27	1
TSGC2-30	30	380	0~430	40	1
TSGC2-40	40	380	0~430	53	1
TSGC2-60	60	380	0~430	80	1

Packaging & Shipping

Packaging voltage regulator always be very important to our customers,

especially when we tranport these expensives devices from our location to

customer's locations, We make each voltage regulator packaged by tailor-made

foam which have enough support to our voltage regulators.

All means of shipping are supported, by Air, by Sea, by courrier.
