Specifications
1. Applicable for testing the dag weight,warp,bending,distortion,diagonal deformation of the door and window.2. 0.1 grade

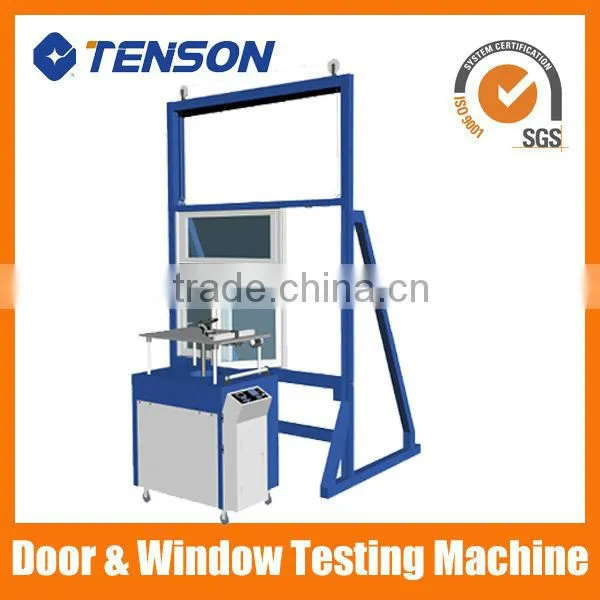

Door and Window Mechanical Property Tester,Door and window test machine
1. Main function
This machine is applicable for testing the dag weight, warp, bend, distortion, diagonal deformation of the door and window, forced open-close and open-close fatigue test.
2. Main testing item
1. Measure the force to control the switch
2. Measure the deformation and damage situation when window suffer improper force.
3. Warp or bending deformation test
4. Twist test
5. Diagonal deformation test
6. Measure the resistance of window when violently closed.
7. Measure the fatigue performance for open and close of window
3. Main technical parameters
1. Max. load force: 0-500N, accuracy: 0.1N, 0.5 class
2. Air pressure: 0.4-0.7Mpa
3. Max. deformation measuring: 0-50mm, accuracy: 0.01mm
4. Casement window open and close speed: 5-20 time/min
5. Sliding window open and close speed: 15m/min
6. Fatigue test time: within 100000 times, auto stop
7. Max. testing window size: 2100×2400(mm)
8. Specimen store condition: 18-28 °C for at least 16 hours
9. Overall dimension: L×W×H: 3500×4600×3700mm
10. Power supply: 380V±10%
