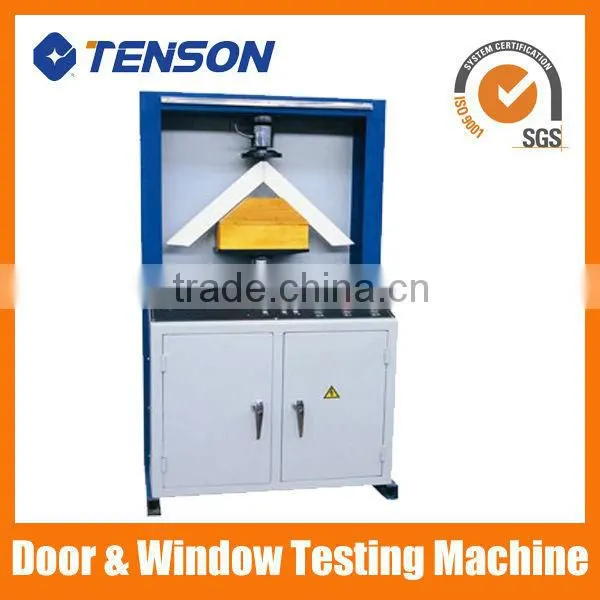

PVC Door and Window Angle Strength Testing Machine XYJ-20B

Specifications

1. Model: XYJ-20B
2. Door and window angle strength tester

PVC Door and Window Angle Strength Testing Machine XYJ-20B



1. Introduction
It is mainly applied in the detection of PVC door and window profile welding test.



2. Standard
GB/T 8814-2004 unplasticized polyvinyl chloride (PVC-U) profiles for the doors and windows

3. Main technical parameters
1). Max. testing force: 20kN
2). Accuracy of testing force: ±1%;
3). Loading speed: 50±5 mm/min
4). Power supply: 380V±10%, 50Hz
5). Overall dimension (L×W×H)(mm): 950×460×1590
6). Weight: 230kg
