Manufacturer TDGC2-3 Single Phase Voltage Regulator , Variac / Variable Transformer 3000VA . Quality Choice
US$ 39 - 41
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Yomin Regulator
Model Number:
TDGC2-3 Regulator
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Manufacturer YMTSVC-30 Three Phase Servo Motor Stabilizer , Automatic Voltage Stabilizer 30KVA /US$ 100 - 300MOQ: 1 Piece -
Manufacturer YMTSVC-40 Stabilizer Three Phase Servo Motor , Automatic Voltage Stabilizer 40KVA /US$ 100 - 300MOQ: 1 Piece
-
Manufacturer YMTSVC-45 Three Phase Servo Motor Stabilizer , Automatic Voltage Stabilizer 45KVA /US$ 100 - 300MOQ: 1 Piece
-
Manufacturer YMTSVC-50 Three Phase Servo Motor Stabilizer , Automatic Voltage Stabilizer 50KVA /US$ 100 - 300MOQ: 1 Piece
-
Manufacturer YMTSVC-60 Three Phase Servo Motor Stabilizer , Automatic Voltage Stabilizer 60KVAUS$ 100 - 300MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
Yomin Regulator
Model Number
TDGC2-3 Regulator
Usage
Other
Phase
Single Phase
Current Type
AC

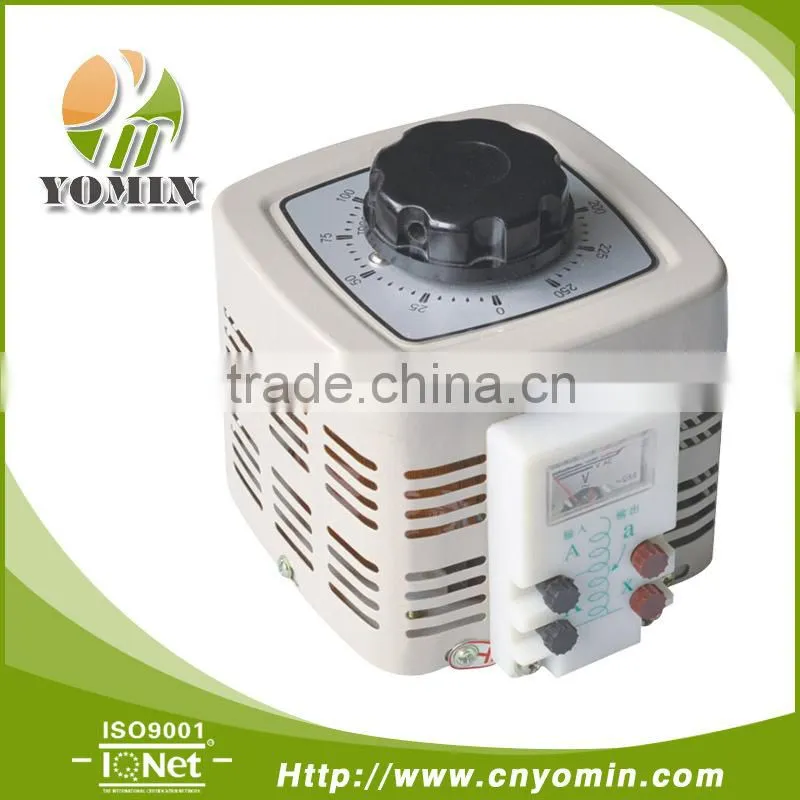

Manufacturer TDGC2-3 Single phase voltage regulator variac/variable transformer Model:TDGC2-3
Product Description
The Voltage regulators (Variac) are used to adjust the voltage from 0 volts up to
the maximum voltage for which they have been designed and among the most
usuall applications. No additional wave from distortion. The main applications are:
- Laboratory control equipment.
- Lighting equipment.
- Temperature controls.
- Motor speed control.
- Controlling of other transformers.
- Etc.
Manually Operated Rotary Knob to control output voltage, by means of a control
button on the shaft of the voltage regulator (Variac) which allows to act on the
brush and achieve the desired voltage. The voltage can be smoothly varied
between turns as the brush has a relatively high resistance (compared with a
metal contact) and the actual output voltage is a function of the relative area of
brush in contact with adjacent windings.
Technical parameters
- Capacity......................................................3000VA
- Output Current...........................................12A
- Output.........................................................0~250V AC
- Frequency..................................................50/60Hz
- Input............................................................220V AC
- Insulation Resistance...............................>5MΩ
- No. of Phase..............................................Single-Phase
- Winding Material.......................................100% Copper
- Max.Temperature......................................60℃
- Insulation Class.........................................Class B (130℃)
- IP/NEMA Rating..........................................IP20
- Variable Operation....................................Manually Operated Rotary Knob
- Portable Carrying Grip.............................Provided
- Pollution Rating.........................................Class III
- Analog Voltmeter Display........................Provided
- Housing Material.......................................Shock-Proof Metal
- Voltage Setting.........................................Manual Control
- Standards...............................................VDE0550,IEC204-1,IEC61588,EC439
- Sample Service........................................Pay to Provide
- Quality Assurance...................................18Months
- Item Condition.........................................Brand-New
| Item | Capacity |
Input Voltage |
Output Voltage |
Output Current |
Case Qty. |
| Model | (kVA) | (V) | (V) | (A) | (Pcs.) |
| TDGC2-0.2 | 0.2 | 220 | 0~250 | 0.8 | 12 |
| TDGC2-0.5 | 0.5 | 220 | 0~250 | 2 | 6 |
| TDGC2-1 | 1 | 220 | 0~250 | 4 | 4 |
| TDGC2-2 | 2 | 220 | 0~250 | 8 | 4 |
| TDGC2-3 | 3 | 220 | 0~250 | 12 | 2 |
| TDGC2-5 | 5 | 220 | 0~250 | 20 | 1 |
| TDGC2-7.5 | 7.5 | 220 | 0~250 | 30 | 1 |
| TDGC2-10 | 10 | 220 | 0~250 | 40 | 1 |
| TDGC2-15 | 15 | 220 | 0~250 | 60 | 1 |
