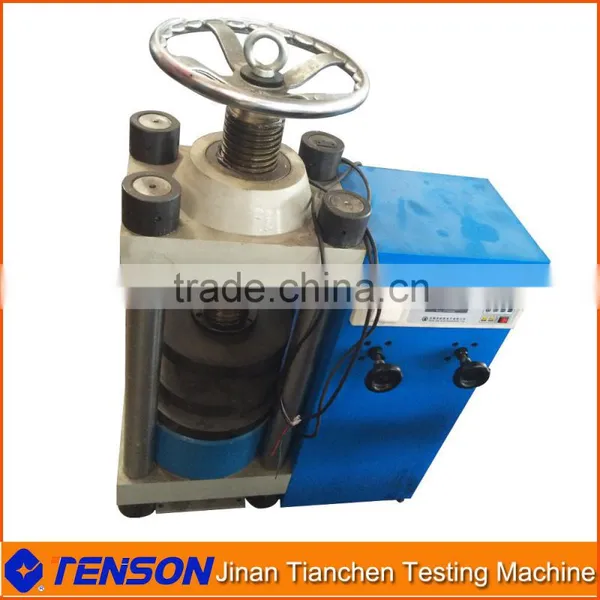

YES-2000J Digital Display Type Concrete Hydraulic Compression Testing Machine 200T 2000kN
Introduction
The YES-2000 J digital type building material hydraulic compression testing machine is mainly used for testing the compression test of concrete buliding materials and other materials.
Features

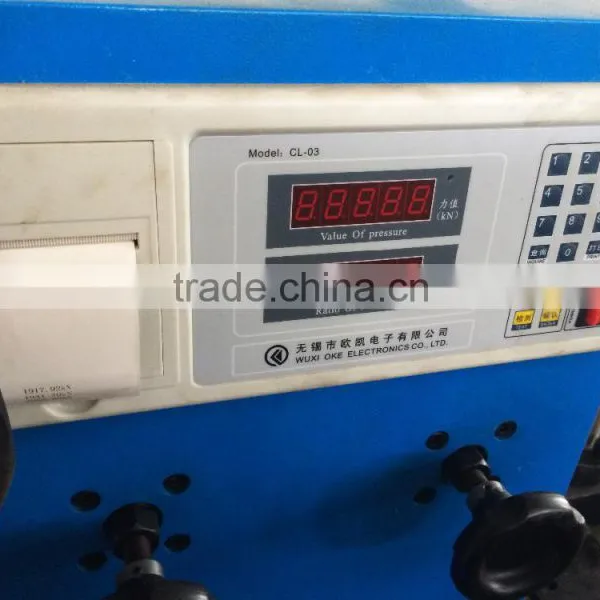

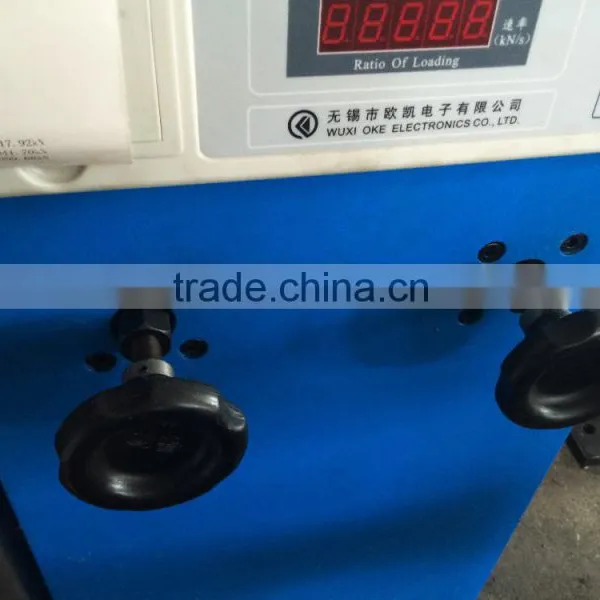

Digital display type with the micro-printer
Upper and lower plates
Handwheel for adjust the testing space
Characteristics of software
1.The software divide testing procedures as follows: tile compression resistant executive program(GB13544-2000),
cement compression resistant testing program (GB-17671-1999), concrete specimen testing program (GB-T5001-2002)
and mortar testing program (GB170-90).
2 There is no subsection in all process. (Or classify according to the requirements of customers.)
3 Display “testing-force-time”test curve at real time.
4 Complete test in batch automatically and adjust breaking of specimen.
5 Windows style can be controlled by human or computer. It is easy to manage and control, collect and calculate.
6 Record and save testing data automatically.
Technicalparameters
Maximum load |
2000kN |
Measuring range of testing force |
4%-100%FS; |
Accuracy of testing force |
±1%; |
Upper pressure plate size |
φ220mm; |
Lower pressure plate size |
φ300mm |
Distance between upper plate and lower plate |
320mm; |
Maximum piston stroke: |
25mm |
Overall dimension (L×W×H) (mm) |
890×450×1340; |
Weight (kg) |
800 |
Specimen testing
1.Are you factory or trading company?
Established in 1998, Jinan Tianchen Testing Machine Manufacturing Co., Ltd is a high technology enterprise devoting on researching, manufacturing, sales and service of Material Testing Machines in Jinan city, China. The registered capital is 10 million RMB.
2.After an order is placed, when to deliver?
Generally about 2-3 weeks, If have in stocks, we can arrange shipment within 3 days.
Please note, different specification/model, needs different delivery time.
3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to repair your problem controller freely,even it's not from our factory. What you need to do is to send us the controller. After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each instruments must be carried out 100% quality examination and test when shipping and delivery goods.Product use training, each of our product provide video training to show you how to install & operate. Main clients has Bureau Veritas and Intertek. our products are widely recognized and trusted by users. All the products meet with: ISO, ASTM,AATCC, BS, EN, DIN, JIS and other requireable standards.
