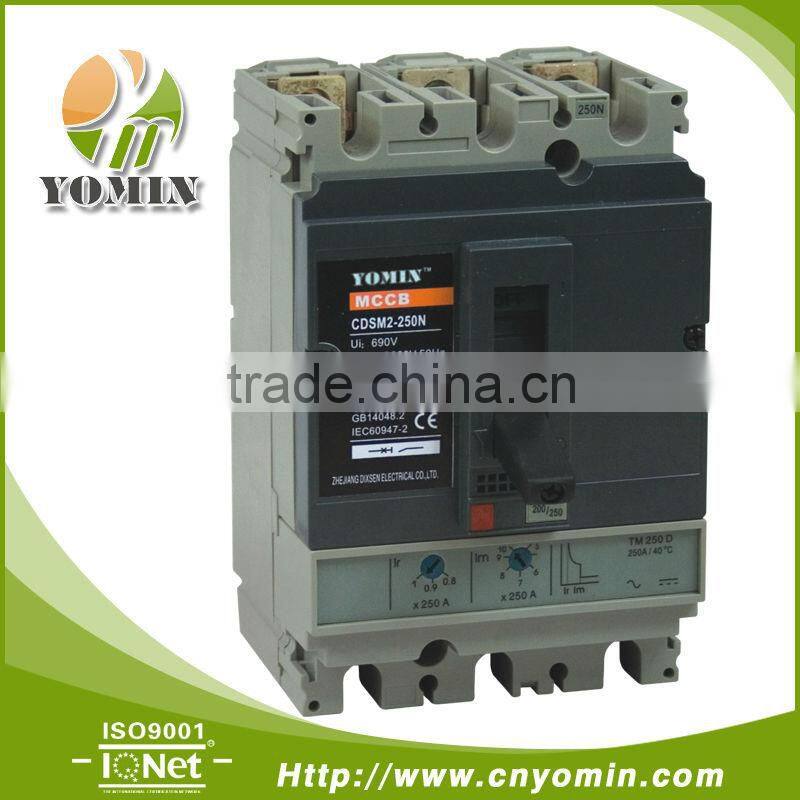

Manufacturer CDSM2-100N/3P-16 Moulded Case Circuit Breaker, MCCB /

Name: Manufacturer CDSM2-100N/3P-16 Moulded Case Circuit Breaker, MCCB /
Brand: Yomin
SKU: 114074875
Availability: InStock

US$ 0.1 - 1 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Yomin

Model Number:

CDSM2-100N/3P-16

Yueqing Yomin Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Yomin

Model Number CDSM2-100N/3P-16

Type Moulded Case

Poles Number 3

CDSM2 Series Moulded Case Circuit Breaker MCCB

Model: CDSM2-100N/3P-16

Product Description

Rated Current.............................................................16A
Frame Current.............................................................100A
No. of Pole...................................................................3-POLE
Rated Insulated Voltage.............................................690VAC
Frequency....................................................................50/60Hz
Standards................................................................... IEC60898-1,EN60898-1
IP / NEMA Rating.........................................................IP20
Connection..................................................................Screw+Cable Lug
Working Temperature................................................-5℃~+50℃
Mechanical Life.......................................................... 20,000 times
Sample Service...........................................................Pay to Provide
Quality Assurance......................................................24 months

Technical parameters

Item	Rated Current	No. of Pole		Icu(kA)/Ics(kA)		Case Qty.
Model	(A)	3P	4P	220/240V	380/415V	(Pcs.)
CDSM2-100N	16	App.	App.	85/50%Icu	36/50%Icu	12
CDSM2-100N	25	App.	App.	85/50%Icu	36/50%Icu	12
CDSM2-100N	32	App.	App.	85/50%Icu	36/50%Icu	12
CDSM2-100N	40	App.	App.	85/50%Icu	36/50%Icu	12
CDSM2-100N	50	App.	App.	85/50%Icu	36/50%Icu	12
CDSM2-100N	63	App.	App.	85/50%Icu	36/50%Icu	12
CDSM2-100N	80	App.	App.	85/50%Icu	36/50%Icu	12
CDSM2-100N	100	App.	App.	85/50%Icu	36/50%Icu	12
