Home > Products > Bending Testing Machine > GW-40 Steel Bar Bending Testing Machine

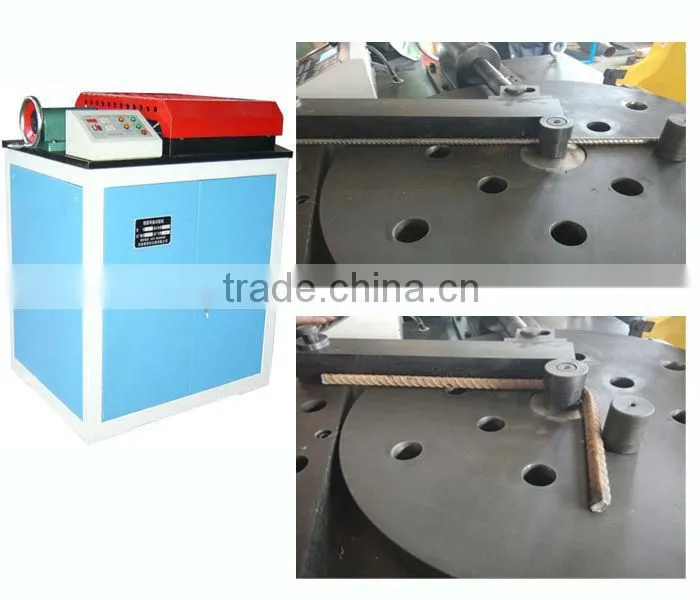

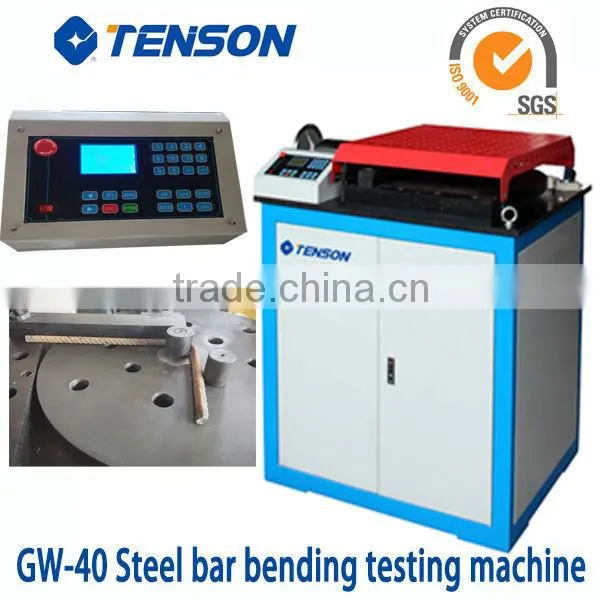

GW-40 Steel Bar Bending Testing Machine
- 40 Set / Sets per Month
- QINGDAO NINGBO SHANGHAI
- T/T
You May Like
-
High Precision Bending Test Machine for Reinforcing Steel diameter 6-40mm GW-40
-
Steel Bar Bending Test Machine For Diameter 6-40mm Steel Bar GW-40
-
GW-40 Reinforing steel bar bending testing machine Lab equipment Inspection section
-
2015 Cheap Bending Testing Machine for Reinforcing Steel Bar Rebend Testing GW-40
-
Reinforcement Bending Test Machine For Diameter 6-40mm Reinforcement GW-40
-
Famous TENSON Brand Bending Testing Machine for Daimeter 6-40 mm Steel Bar
Product Details
| Place of Origin | Shandong, China | Brand Name | TENSON | |
| Model Number | GW-40 | Power | Electronic | |
| Usage | Bending Testing Machine |
Product Description
Specifications
GW-40 Steel Bar Bending Testing Machine1, Both can be test and working for building
2,Operation simply
3, Save much money
GW-40 Steel Bar Bending Testing Machine
Item | Technical Specification |
Bending diameter range | F6—F40mm |
Forward direction angle | 0°~180°setted freely |
Reverse direction angle | 0°~30° setted freely |
Speed of bending | ≤20°/s |
Heart of roller distance | 165mm |
Work table diameter | F580mm |
Motor power | 1.5kW |
Accessory | 3*F6,3*F8,3*F10,3*F12,3*F14, 3*F16,3*F18,3*F20,3*F22,3*F25, 4*F28,4*F32,4*F36,4*F40, Totally 14 pieces(HTB335) |
4*F8,4*F10,4*F14,4*F16,4*F18, 4*F20,4*F22,4*F25,5*F28,5*F36, 5*F40 Totally 11pieces(HRB400) | |
Overall dimension(mm) | 1050*740*1170(mm) |
Weight | About 700kg |
3,Warranty and After-sale service
1,The warranty of all our testing machine is one year
2,During this Warranty,it is free to replace the spare parts
3,Out of this warranty, it only charges the cost of the spare parts
4,All our testing machines enjoy a long after-sales service
Contact person: kevin Guo skype: kevin88030
Contact Us
- Jinan Tianchen Testing Machine Manufacturing Co., Ltd.
- Contact nameTerry Tai Chat Now
- Phone86-531-88606113
- AddressRoom 303, 3/F, Office Building 2, North Of Qinyuan Street, Middle Section Of Kaituo Road, High-Tech Zone
