TC series terminals block
Specifications
TC series terminal block(terminal board,connector)
wire section:60mm
rated current/voltage:150A/600Vthick/wide/high:117/67/40

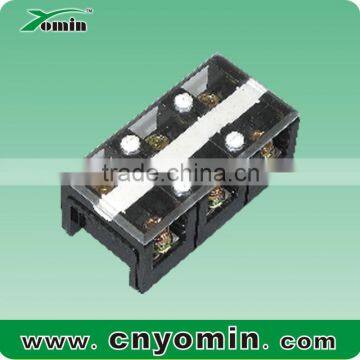

TC series terminal block(terminal board,connector)
Sliecting thermosetting plastic,safety factor of big current is more reliable.Board type screw crinm commecting technology as structure parts,rated AC voltage 600V,rated current of connecting conduct piece with seven specifications of 60,100,150,200,300,400,600A.The cross-section 10~300mm,which is the biggest closure flow terminal .It can be divides into 3P,4P flat bolt installation according to arrangement,it willl be more reliable with OT,UT termination point for connecting current in different kind electric device.
IN
D

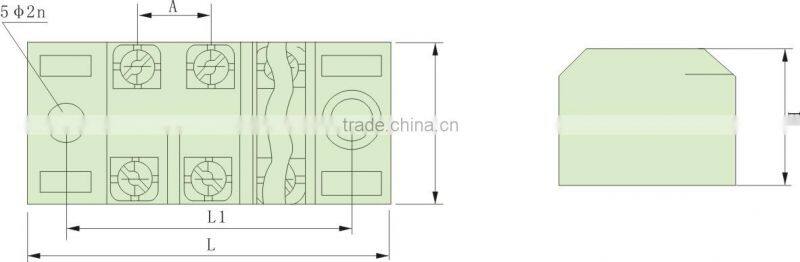

DIMENSION

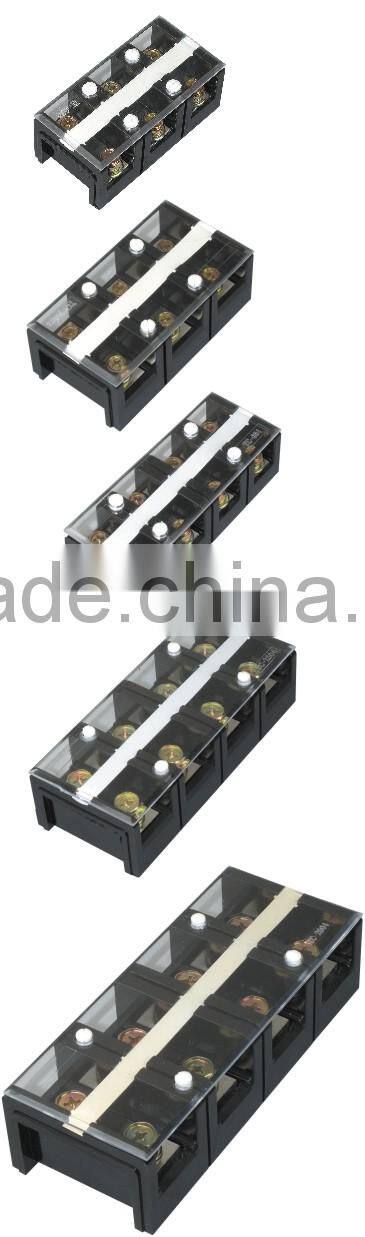

TC series terminal block
TC series terminal block
TC
series terminal block
TC series terminal block
TC series terminal block
