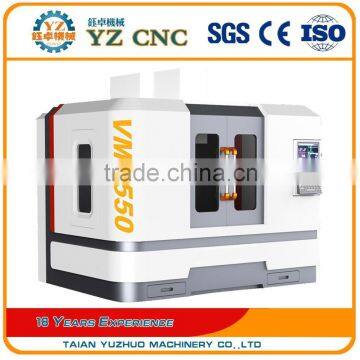

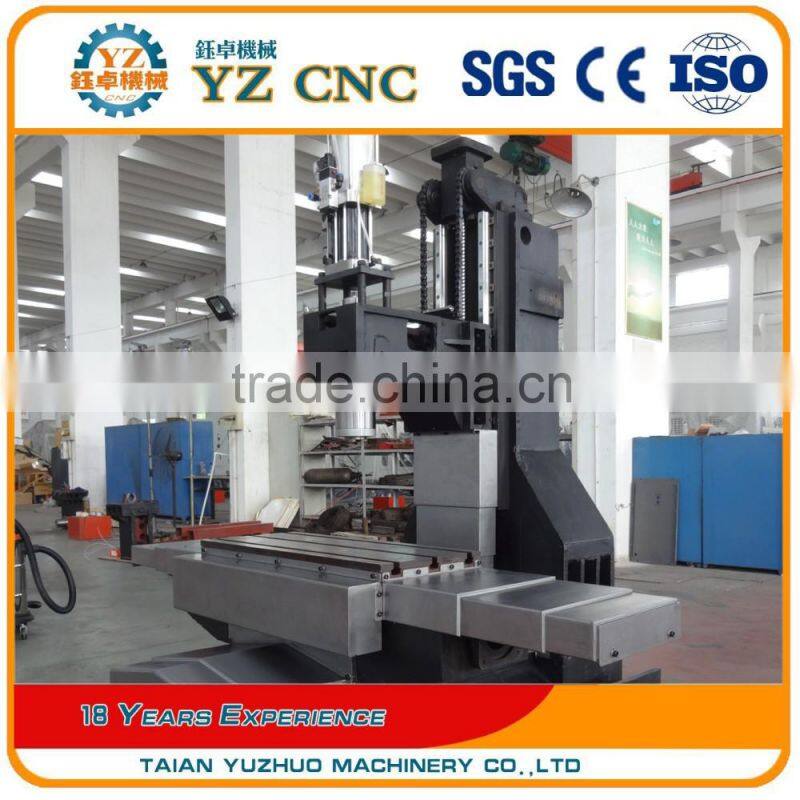

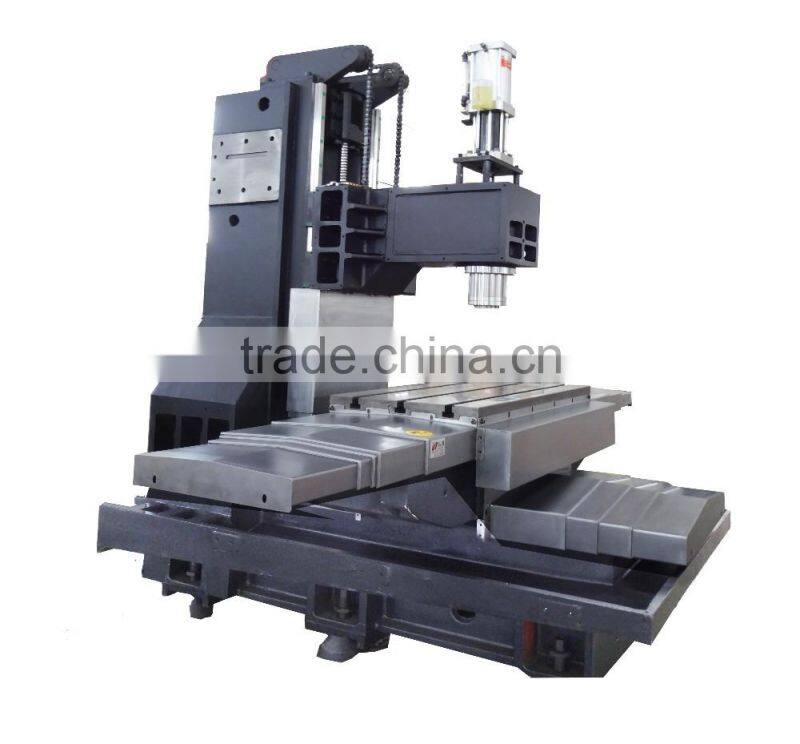

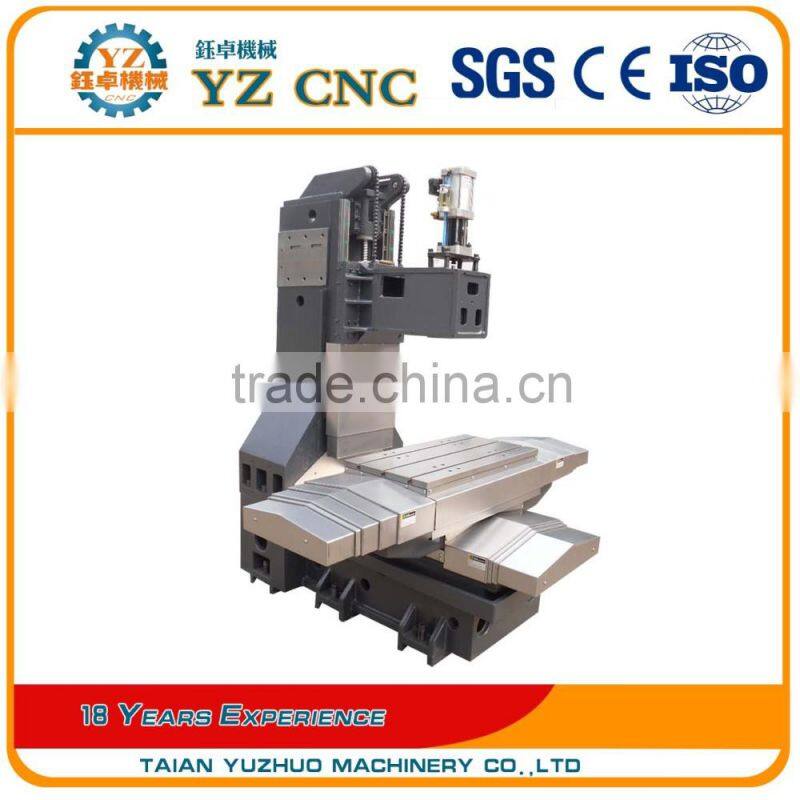

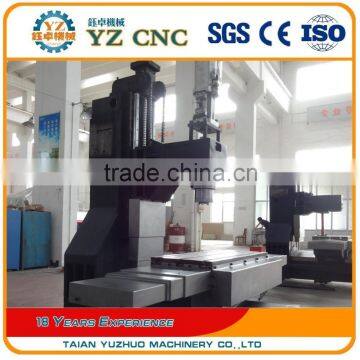

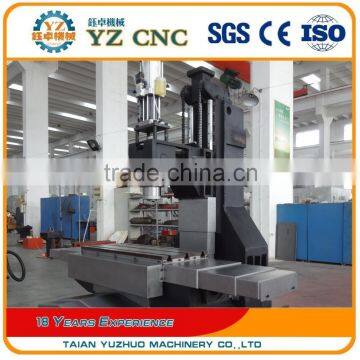

Chinese low cost cnc milling machine frame tool
|
VL550---Linear guideways in 3 axes | ||
Travel |
X axis |
550mm |
Y axis |
350mm |
|
Z axis |
500mm |
|
Spindle nose to table |
100-600mm |
|
Spindle nose to column |
419mm |
|
Feed |
max X rapid feed |
48m/min |
max Y rapid feed |
48m/min |
|
max Z rapid feed |
48m/min |
|
Cutting feed |
1-10m/min |
|
Torque |
X:7 N.m Y:7 N.m Z:7 N.m |
|
Table |
Table size |
700×350mm |
Max load |
300Kg |
|
Table surface to floor |
820 mm |
|
T slot |
3×18×105mm |
|
Spindle |
Type |
Belt |
Speed |
8000 rpm |
|
Spindle taper |
BT40 |
|
Main motor |
5.5KW |
|
Accuracy |
Accuracy (JIS) |
±0.005/300mm |
Repeatability (JIS) |
±0.003mm |
|
Other |
Frame Weight |
1700 Kgs |
Frame Size |
1800×1500×1900 mm |
|
1,Finite Element Analysis
The structural parts are analyzed and designed by the advanced Finite Element Analysis.It provides a detailed analysis for structural stress/strain conditions,and ensures excellent machine rigidity and lifetime stability.
2,Pretensioned ballscrews on X,Y,Z axes ensure accuracy and eliminate positioning error.
3,The endface of spindle stock,screw support faces and block contact faces are fully Hand --scraped to increase machining accuracy and feeding smoothness.
4,The machine structure is constructed from high quality Meehanite cast iron and stress released to ensure great rigidity and precision
5,Over sized column and bed ,assuring extra high rigidity of machine frame

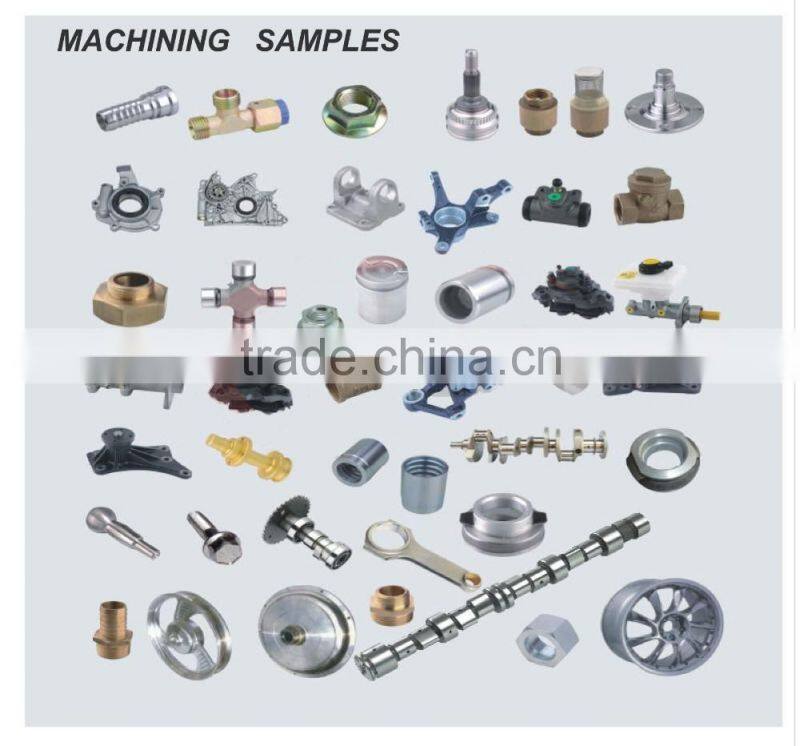

1,We are dedicated to provide customers with the best, highly value added machines.
2,We have earned a strong reputation in design and manufacturing of a wide variety of CNC machine tools.
3,We continuously improve the performance level of our machines, strengthen our quality control system, and offer worldwide support services.
4,Our dedication to the global marketplace will create a new era of CNC machine tools.
5,Our quality control personnel are well trained to conduct rigorous inspections by using precision, sophisticated instruments. We deeply believe that quality is the life of our company and customer service is the power that drives our company forward.
We are also looking for cooperation with professional dealers in the world. This would make us to create a new opportunity in certain area and offer top service quality as we have in China.
