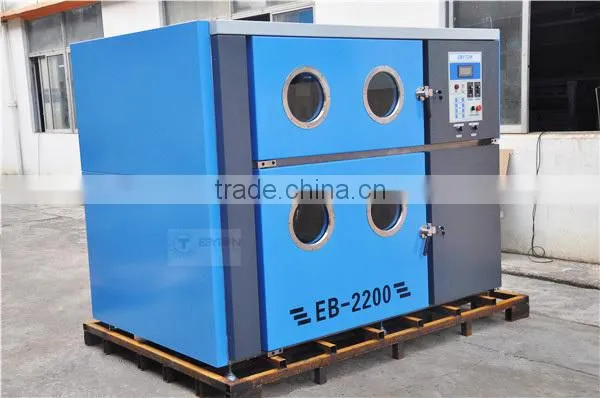

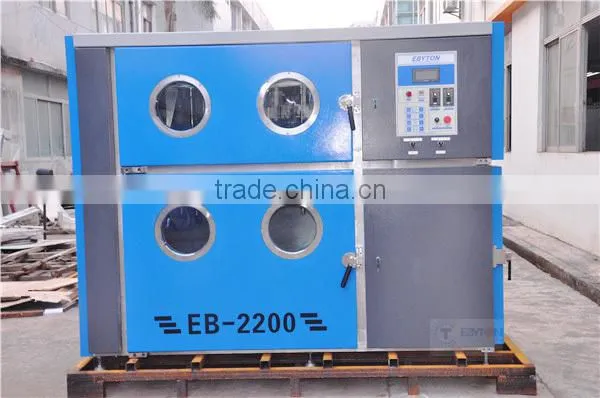

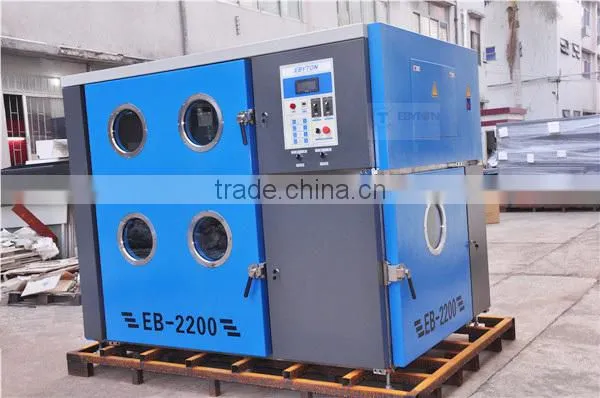

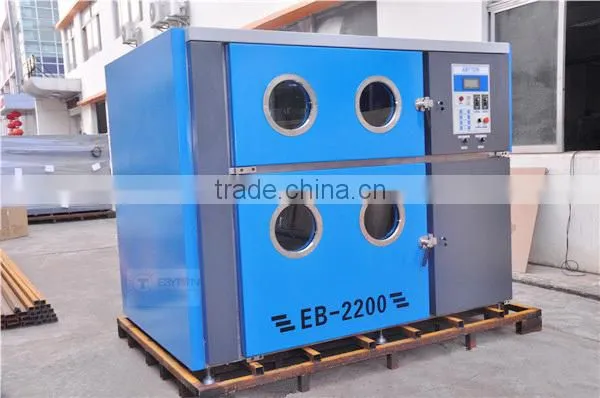

vacuum casting machine for plastic pu products making
EbyTon was set up in 2005,specializes in many kinds of sheet metal parts,equipments ,has rich experience.This new
designed and developed vacuum casting machine by our powerful developing engineering team in 2014,aiming to provide
a more efficient and convinient vacuum casitng machine for vast consumers in this field,to produce with more ease and less cost.
Features:
1.Electric or air push chamber pouring device and machine body structure,demostrating a high level quality;
2.Applying panasonic LPC operation system to control,and able to conviniently switch between fully automatic and
manual condition;

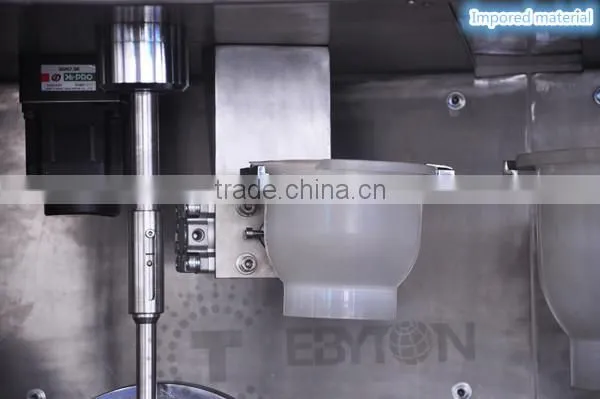

3.The inner components applies best impoted or domestic brands,ensured the reliability
4.Adopt good vacuum pump imported from Germany,vacuum time is shorter,the keeps longer,thus can ensure the
casting quality;
5.The machine body is made of steel section material,liner made of stainless steel,the great strength and rigidity can
guarantee the durability.
6.Type optional ,can be customized per customer’s request.
Details show:

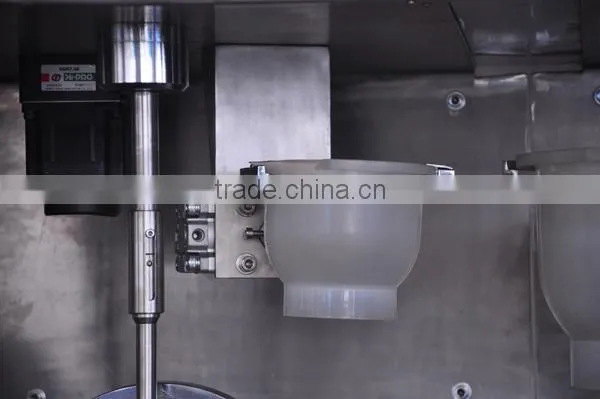

A.Main body :The machine body is built from good firm steel section,which was precision proceeded,
thus the life time is long.
B. Vacuum pump:Adoped well durable vacuum pump imported from Germany.

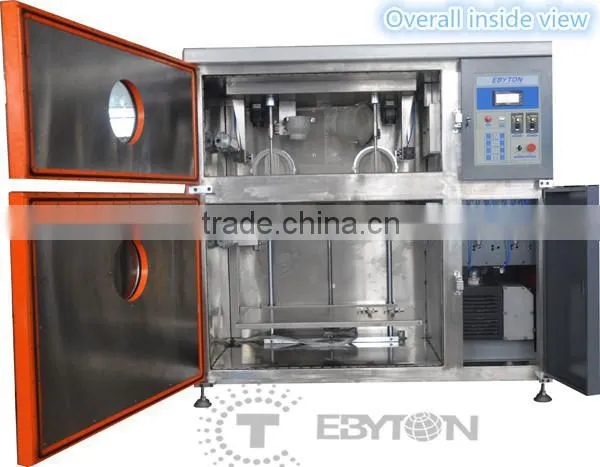

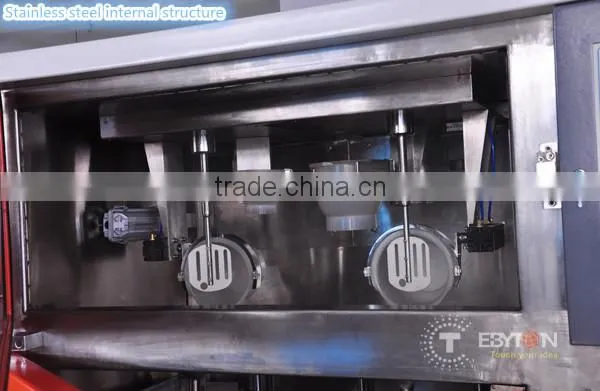

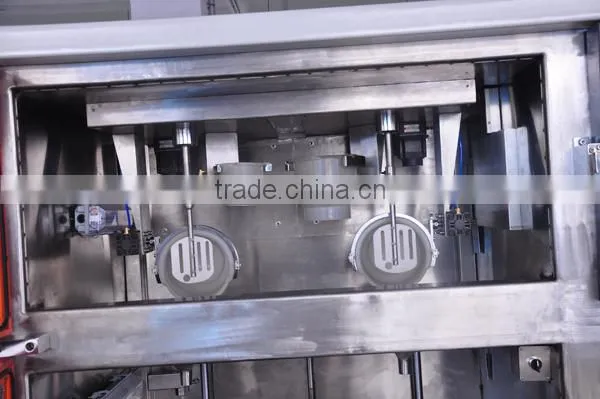

C.Internal components:Stainless steel liner adopted,smooth polished,thus it has a good strength and
durability.

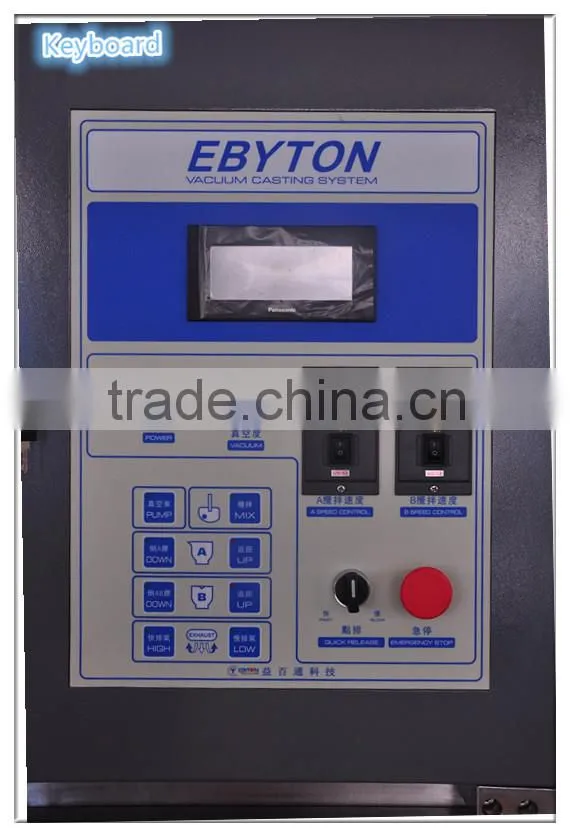

D.Keyboard:The machine body is high grade powder cating sprayed,makes its appearance artistic and elegant;
Fit with imported operating system,conviniently and fluently switching between automatical and manual conditions;
Types & Specifications:
Types |
EB-500 |
EB-600 |
EB-800 |
EB-1000 |
EB-1200 |
EB-2200 |
Outline dimension |
960 |
1060 |
1420 |
1660 |
1815 |
2400 |
790 |
920 |
1010 |
1180 |
1180 |
1600 |
|
1630 |
1630 |
1800 |
1800 |
1800 |
2060 |
|
Internal dimension |
500 |
600 |
800 |
1200 |
1200 |
2200 |
550 |
600 |
650 |
800 |
800 |
1000 |
|
830 |
1000 |
1490 |
1490 |
1490 |
1750 |
|
Vacuum pump spec. |
1.5KW ,50 m³/h |
2.2KW, 75 m³/h |
3KW, 3KW |
4KW, 150 m³/h |
4KW, 150 m³/h |
6KW, 200 m³/h |
Cup capacity |
1000 |
1000 |
3000 |
3000 |
6000 |
10000 |
Input voltage |
380VAC |
380VAC |
380VAC |
380VAC |
380VAC |
380VAC |
G.power |
1.5 |
2 |
3.5 |
4.5 |
4.5 |
6.5 |
Interior Liner material |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
Stainless steel |
Surface Finish |
High-grade powder coating |
High-grade powder coating |
High-grade powder coating |
High-grade |
High-grade powder coating |
High-grade powder coating |
Vacuum casting machine optional specifications:
Provide different configurations for customers’ options(Customers can choose or even study out a best solution that suits their demandings.)
1.Operation mode:Automatical / Eletric pushed / Manual
2.The Liner:Mild steel / Stainless steel
3.Lift system:Electric pushed / Manual
4.Cup Pouring system:Air pushed / Electrical pushed
Perfect after-sale service
l Production status following:Follow up the entire manufacturing process,to keep customers updated about the status of their projects,let customers rest assured and no worries;
l Delivery tracking:Tracking the express status after goods been delivered,reporting & solving problems during transportation in time ;
l Respond to customers feedback:All customers feedback regarding products will be replied within 24 hours, to make sure customers questions resolved in time;
l Quality issue promise:If products are damaged or broken for our fault ,EbyTon will re-do them for free unconditionally.
