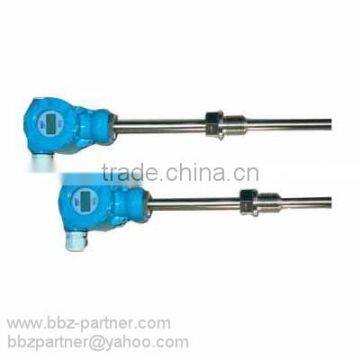

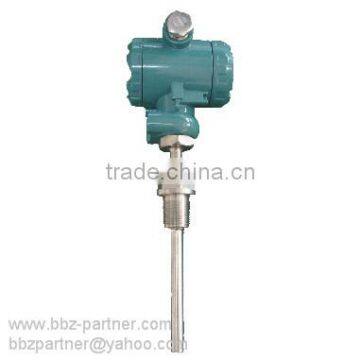

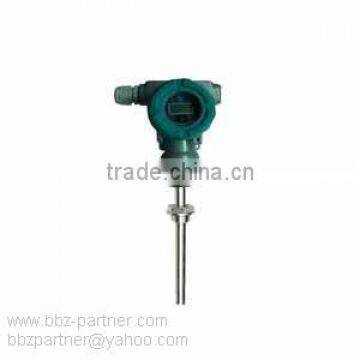

BBZ TB8 Integrated Temperature Sensor

BBZ TB8 Integrated Temperature Sensor thumbnail-1
BBZ TB8 Integrated Temperature Sensor thumbnail-2
BBZ TB8 Integrated Temperature Sensor thumbnail-3
BBZ TB8 Integrated Temperature Sensor thumbnail-4
BBZ TB8 Integrated Temperature Sensor thumbnail-5
BBZ TB8 Integrated Temperature Sensor thumbnail-6
BBZ TB8 Integrated Temperature Sensor photo-1
BBZ TB8 Integrated Temperature Sensor photo-2
BBZ TB8 Integrated Temperature Sensor photo-3
BBZ TB8 Integrated Temperature Sensor photo-4
BBZ TB8 Integrated Temperature Sensor photo-5
BBZ TB8 Integrated Temperature Sensor photo-6
US$ 50 - 150 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
BBZ
Model Number:
BBZ TB8
Contact Supplier Request Quote Chat Now
Henan BBZ Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Ningbo Lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name BBZ
Model Number BBZ TB8
Product Description

BBZ TB8 Integrated Temperature Sensor


Product Application

BBZ TB8 Integrated Temperature Sensor can measure temperature of various kinds of liquid, steam and gas medium from -200 to 1800℃.

BBZ TB8 has been widely used in chemical industry, petroleum industry, metallurgy industry, light industry, food, electric power and energy management etc.

Specifications

Measuring medium
gas or liquid compatible to stainless steel
Temperature range
thermocouple： E、 K、 S、 B
thermal resistor： PT100,Cu50
Output signal
4~20mA,1~5V
Insert depth
50mm~2000mm(as customer's request)
Accuracy
thermo resistor：0.25%FS, 0.5%FS(standard); thermocouple: 0.75%FS
Output signal
4~20mA
Long-term stability
<0.25%FS/year

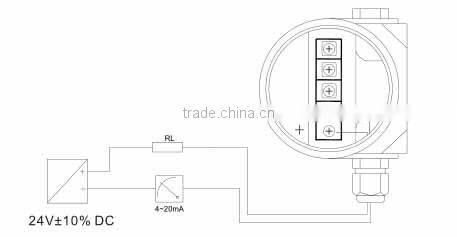

Supply voltage
24V±10% DC
Load resistance
RL(max. ) =(V-12)/0.02, V:power supply of transmitter
Insulation resistance
100MΩ@50VDC
Operating temperature range
-20~60℃
Display
LCD digital indicator in ℃ unit, -1999~1999
Zero temperature coefficient
0.2%FS/10℃
Span temperature coefficient
0.2%FS/10℃
Process connection
M27×2 (male)or others
Electrical connection
1/2NPT or M20×1.5 ( female)
Wetted part material
1Cr18Ni9Ti stainless steel
Housing material
cast alaluminium
Explosive-proof
Exia II BT6,Exd II BT6

Features


1. Range:-200℃ ~1800℃

2. Integrated structure with its real-time measuring value display

3. High accuracy, anti-interference, high long-term stability and free maintenance

4. High anti-interference, remote transmission (max. 1000 meters)

Description

1. BBZ TB8 Integrated Temperature Sensor uses thermocouple or thermal resistor as temperature sensitive element and transforms thermocouple or thermal resistance signal to 4~20mA standard signal with real-time indication function on the spot.

2. BBZ TB8 Integrated Temperature Sensor has firm & artistic housing, two-layer construction, 4-1/2 LCD or LED display, 0-100% indicator optional.

3. BBZ TB8 uses integrated electric circuits, which guarantee its stable signal and clear display, making it convenient to calibrate and inspect the gauges on the scene.

4. BBZ TB8 has general type and explosive-proof type.

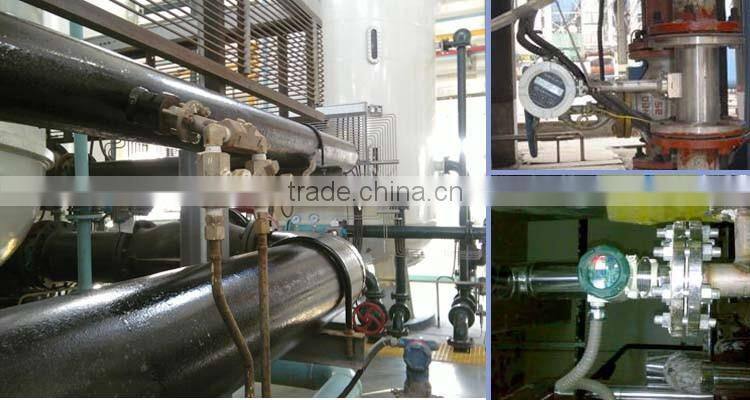

Applications
