BBZ-Y 2 4~20mA Current Output Pressure Price Transmitter With Isolated Diaphragm

Henan BBZ Automation Equipment Co., Ltd.
BBZ-Y 2 4~20mA Current Output Pressure Price Transmitter With Isolated Diaphragm thumbnail-1
BBZ-Y 2 4~20mA Current Output Pressure Price Transmitter With Isolated Diaphragm thumbnail-2
BBZ-Y 2 4~20mA Current Output Pressure Price Transmitter With Isolated Diaphragm thumbnail-3
BBZ-Y 2 4~20mA Current Output Pressure Price Transmitter With Isolated Diaphragm thumbnail-4
BBZ-Y 2 4~20mA Current Output Pressure Price Transmitter With Isolated Diaphragm photo-1

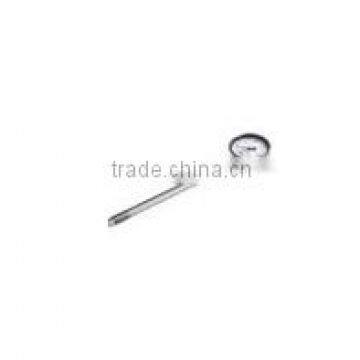

BBZ-Y 2 4~20mA Current Output Pressure Price Transmitter With Isolated Diaphragm photo-2

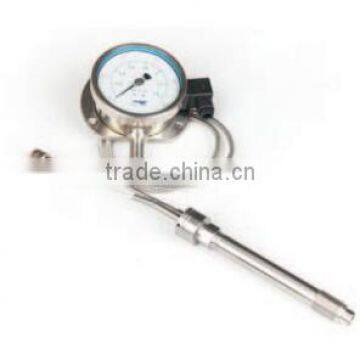

BBZ-Y 2 4~20mA Current Output Pressure Price Transmitter With Isolated Diaphragm photo-3
BBZ-Y 2 4~20mA Current Output Pressure Price Transmitter With Isolated Diaphragm photo-4
US$ 35 - 550 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
BBZ
Model Number:
BBZ-Y
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Lianyungang Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name BBZ
Model Number BBZ-Y
Brief Introduction


BBZ-Y 2 pressure transmitter with flexible extension is constructed with isolated diaphragm, local pointer meter and imported original module. The dial can be installed from two sides, and the case can be adjusted at 360 degree to get the best visual angle. The meter is built in high precision pressure sensor, can output analogue signal.

Features

Integrated stainless steel construction;

Good stability & reliability;

Can be made with temperature & pressure analogue output signal;

Hastelloy-C diaphragm available on special request;

Zero adjustment; The dial can be adjusted at 360 degree freely






Product Parameter
pressure ranges
0~50bar...2000bar
overload pressure
150%FS
output signal
4~20mA, 0~5V, 0~10V, 1~5V
accuracy
±1%FS,±1.5%FS
load resistance
RL=(U-12V)/0.02A ( 4~20mA current output) U—loop voltage (V)
long-term stability
<0.5 %FS/year
supply voltage
12~36VDC
temperature measurement
J,K,E;PT100
structure
bourdon tube
max. operating temp. @ diaphragm
350℃
dial diameter
100mm
length of flexible extension
0.5...5m
process connection
1/2"-20UNF, M18×1.5 or others
electrical connection
Hirschmann onnector, or aviation connector

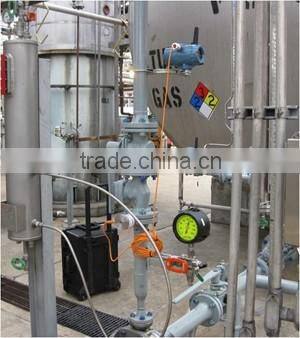

Applications
the dial can be installed from two sides, and the case can be adjusted at 360 degree to get the best visual angle. The products have many types of remote transmitting, are suitable for measuring corrosive, high temperature, high viscosity, easily crystallized, easy solidified medium pressure
