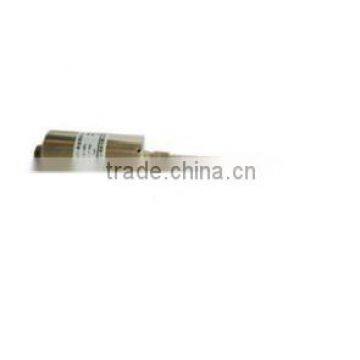

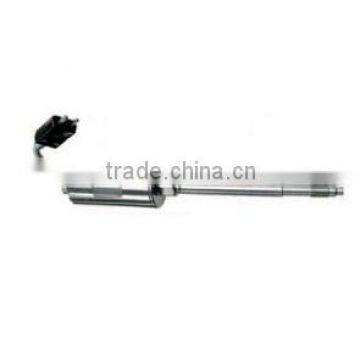

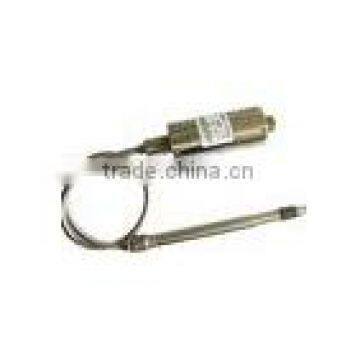

BBZ-UMPB Series Nice Melt Pressure Transmitter

Henan BBZ Automation Equipment Co., Ltd.
BBZ-UMPB Series Nice Melt Pressure Transmitter thumbnail-1
BBZ-UMPB Series Nice Melt Pressure Transmitter thumbnail-2
BBZ-UMPB Series Nice Melt Pressure Transmitter thumbnail-3
BBZ-UMPB Series Nice Melt Pressure Transmitter thumbnail-4
BBZ-UMPB Series Nice Melt Pressure Transmitter thumbnail-5
BBZ-UMPB Series Nice Melt Pressure Transmitter photo-1
BBZ-UMPB Series Nice Melt Pressure Transmitter photo-2
BBZ-UMPB Series Nice Melt Pressure Transmitter photo-3
BBZ-UMPB Series Nice Melt Pressure Transmitter photo-4
BBZ-UMPB Series Nice Melt Pressure Transmitter photo-5
US$ 15 - 399 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
BBZ
Model Number:
BBZ
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Lianyungang Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name BBZ
Model Number BBZ
Brief Introduction


BBZ-UMPB series melt pressure transmitters are developed from strain gauge technology. The BBZ-UMPB are constructed with a full bridge strain gauge circuit and 100% made from stainless steel material. In addition, the pressure diaphragm features a surface treatment with special alloy coating for all the BBZ-UMPB models. Both the rigid stem and flexible extension provide thermal isolation to BBZ-UMPB’s electronic circuitry, which enable BBZ-UMPB suitable for melt pressure and melt temperature measurements.

Features

Integrated stainless steel construction

Good stability & realibility; ;

Internal shunt calibration signal of 80%fso;

Hastelloy-C diaphragm available on special request;

Zero & span adjustable;


Product Parameter
pressure
medium
pressure ranges
-1~0,-0.35~0,-0.2~0,0~0.2,0~0.35,0~1,0~2.5,0~4,0~6,0~10,0~16,0~25(G bar)
0~1,0~2.5,0~4,0~6,0~10,0~16,0~25( A bar)
0~10,0~16,0~25,0~60,0~100,0~250,0~400,0~600,0~1000 (S bar)



pressure ranges
0~35bar...2000bar
overload pressure
200%FS
output signal
3.33mV/V(for transducer); 4~20mA, 0~5V, 0~10V, 1~5V
accuracy
0.25%FS, 0.5%FS(standard) 1%FS
load resistance
RL=(U-12V)/0.02A ( 4~20mA current output) U—loop voltage (V)
long-term stability
<0.2%FS/year
supply voltage
10V DC(for transducer); 12~36VDC
compensated temperature range
0~+80℃
max operating temp. @ wetted parts
+400℃
temperature coefficient of zero
0.5%FS/10℃
temperature coefficient of span
0.5%FS/10℃
insulation resistance
100MΩ@50VDC
process connection
1/2"-20UNF-2A or others

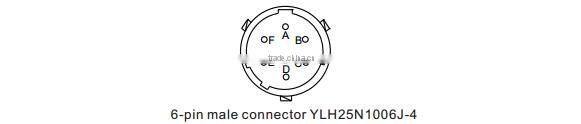

electrical connection
6 p o in male tighten connector or thers
temperature sensor
J type(Fe-CuNi)thermocouple or other type on request
thermocouple connection
2 pin plug in connector

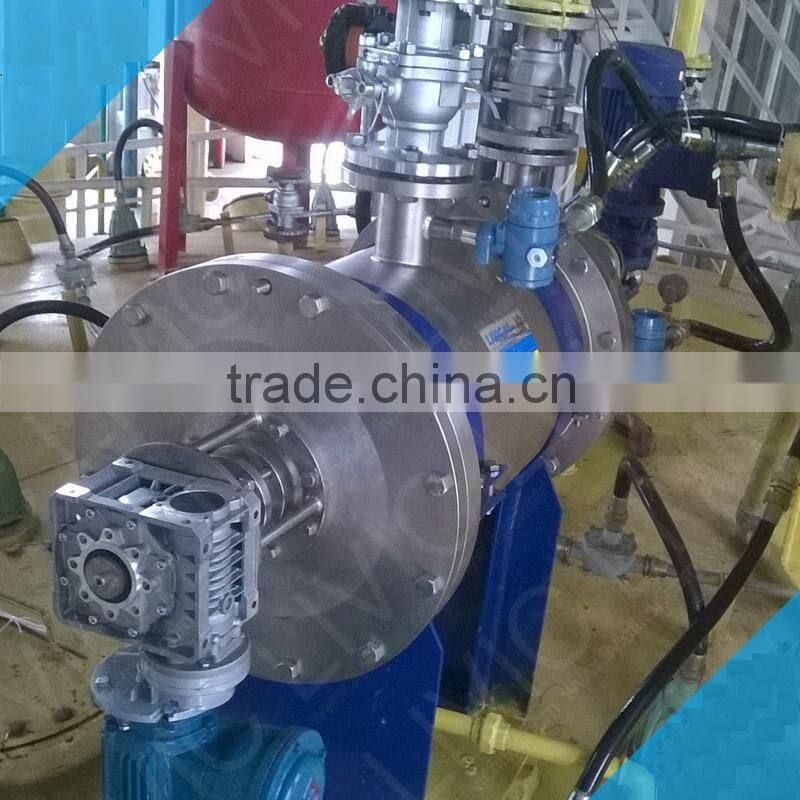

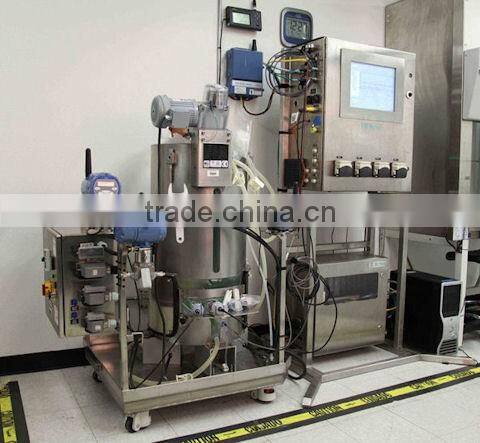

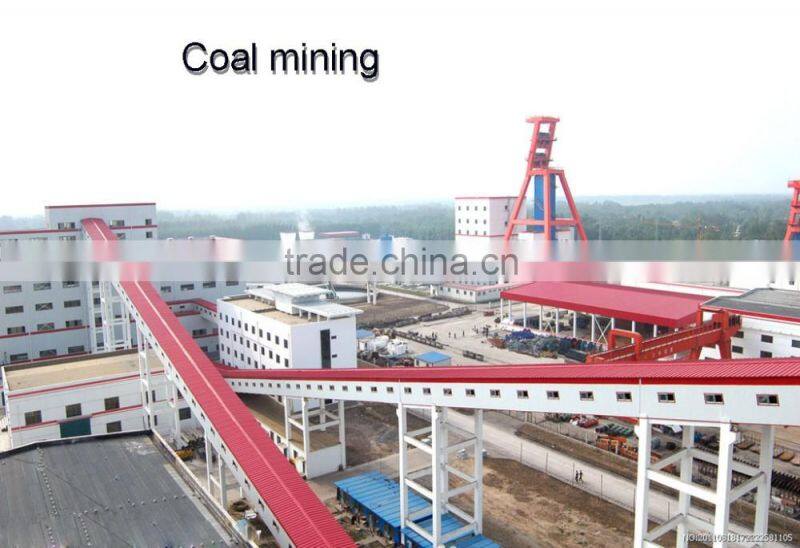

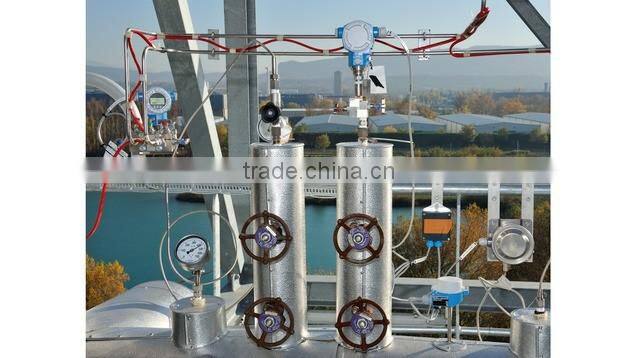

Applications
