BBZ Stainless Steel Cable Lock Pressure Transmitter

Henan BBZ Automation Equipment Co., Ltd.
BBZ Stainless Steel Cable Lock Pressure Transmitter thumbnail-1
BBZ Stainless Steel Cable Lock Pressure Transmitter thumbnail-2
BBZ Stainless Steel Cable Lock Pressure Transmitter thumbnail-3
BBZ Stainless Steel Cable Lock Pressure Transmitter thumbnail-4
BBZ Stainless Steel Cable Lock Pressure Transmitter thumbnail-5
BBZ Stainless Steel Cable Lock Pressure Transmitter thumbnail-6
BBZ Stainless Steel Cable Lock Pressure Transmitter photo-1

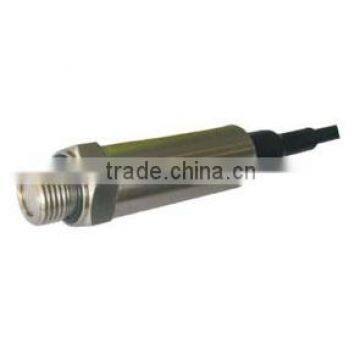

BBZ Stainless Steel Cable Lock Pressure Transmitter photo-2

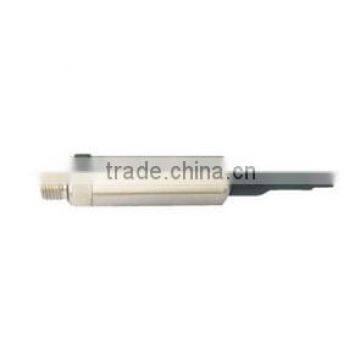

BBZ Stainless Steel Cable Lock Pressure Transmitter photo-3

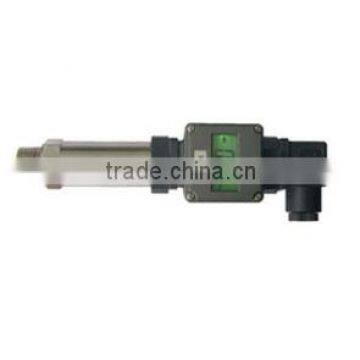

BBZ Stainless Steel Cable Lock Pressure Transmitter photo-4

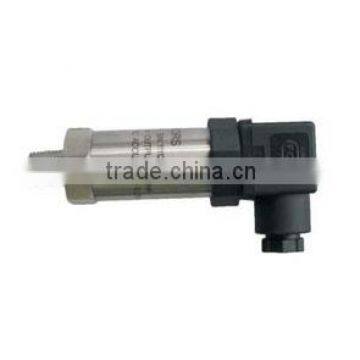

BBZ Stainless Steel Cable Lock Pressure Transmitter photo-5

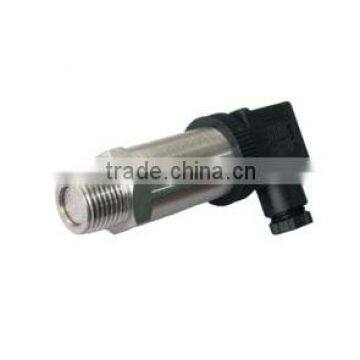

BBZ Stainless Steel Cable Lock Pressure Transmitter photo-6
US$ 15 - 305 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
BBZ
Model Number:
BBZ
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Lianyungang Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name BBZ
Model Number BBZ
Product Description

Based on piezo-resistive silicon technology ,BBZ stainless steel cable lock pressure transmitter uses isolated , stainless steel diaphragm as sensing element. This product is fully tested by computer automatically, and trimmed by laser for zero and sensitivity in a wider temperature range. Its amplifier circuit is built in stainless steel housing, to transform sensor signal into standard output signal.

Features

Wide measuring pressure range:-1...0~0.1...1000bar

Full stainless steel construction

Suitable for the measurement of low pressure and vacuum pressure

Against thunder stroke, against radio-frequency interference

Reversed-polarity, transient current & voltage protection

Anti-corrosion, anti-attrition, anti-impact



Product Parameter
pressure medium
gas or liquid compatible to stainless steel
pressure ranges
-1...0~0.1...1000bar
load resistance
R =(U-12V)/0.02A(4~20mA current output) U—loop voltage (V)
overload pressure
150%FS
pressure type
gauge(G), absolute(A), sealed gauge(S)
long-term stability
<0.2%FS/year
output signal
4~20mA, 0~5V, 0~10V, 1~5V,0.5~4.5V
accuracy
0.1%FS,0.25%FS(standard), 0.5%FS
supply voltage
12~36VDC
compensated temperature range
0~70℃
operating temperature range
-30~80℃
storage temperature range
-40~120℃
temperature coefficient of zero
0.2%FS/10℃
temperature coefficient of span
0.2%FS/10℃
insulation resistance
100MΩ@50VDC
process connection
G1/2 or others
electrical connection
DIN43650 or others
material of wetted part
1Cr18Ni9Ti
material of pressure membrane
316L
material of housing
1Cr18Ni9Ti
sealing
n-Butyronitrile or fluoro-rubber sealing ring
Applications

BBZ stainless steel cable lock pressure transmitter is widely used for pressure measurement and control of petroleum, chemical industry, metallurgy, power station and hydrology, etc.
