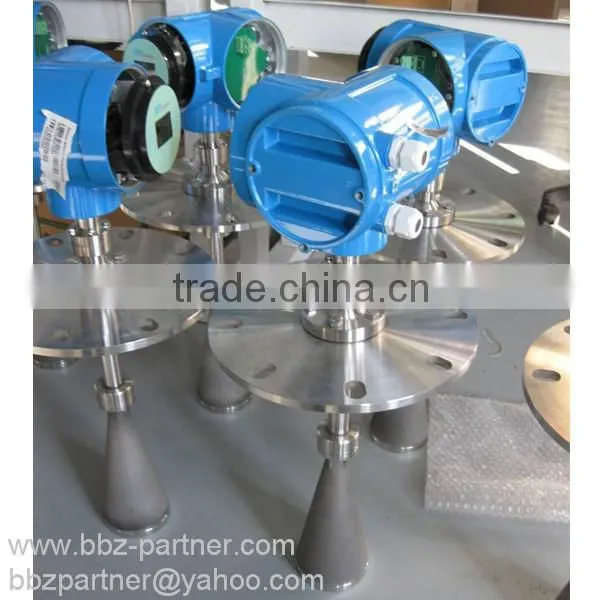

Help CenterBBZ RL56 Intelligent Radar Level Gauge for Thicker Roof Storage Tanks
Related Products
-
BBZ RL31 Guided Wave Radar Level Gauge for Liquid and Solid ParticlesUS$ 500 - 1,500MOQ: 1 Set -
BBZ RL55 Smart Radar Level Gauge for Liquid Storage Tanks With StirrerUS$ 500 - 1,800MOQ: 1 Set
-
BBZ RL56 Intelligent Radar Level Gauge for Blast Furnace Level Storage TanksUS$ 500 - 2,000MOQ: 1 Set
-
BBZ RL55 Smart Radar Level Sensor for Low Dielectric Constant LiquidUS$ 500 - 1,800MOQ: 1 Set
-
26 GHz Pulse Radar Water Level Transmitter BBZ RD56US$ 500 - 2,000MOQ: 1 Set
Product Application

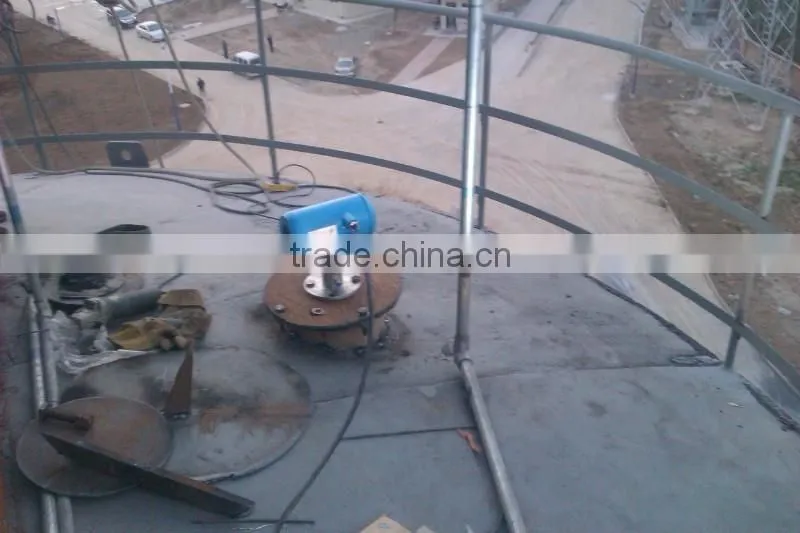

Suitable for measuring blast furnace material level and thicker roof storage tanks and installation of high short tube conditions.
Parameter
Main Features
● with advanced non-contact measurement
● manufacturing with extremely stable materials
● level measurement of liquid and solid medium
● can measure all dielectric constant> 1.8 Media
● Measuring range 0 ... 20m (can be extended to 35 meters)
● with two-wire, loop-powered technology, supply voltage and output signals transmitted via a two-core cable
● 4 ... 20mA output or digital output signal type
● Resolution: 1mm
● unaffected by noise, steam, dust, vacuum and other conditions
● unaffected by medium density, viscosity and temperature changes
● process pressures up to 4MPa
● Process temperature up to 250 ℃
Product Overview
BBZ RL50 series sensor is an advanced radar level measurement instruments, measuring distance up to 35 meters and can be used in storage tanks, intermediate buffer tank or process vessels level measurement, with output 4 ... 20mA analog signal.
Measuring principle
High-frequency microwave pulses emitted and received by the antenna system, radar wave run at light speed, running time can be converted into level signals through electronic component. A special time stretching method ensures stable and accurate measurements in a very short time. Even under more complex conditions and the existence of false echoes, with the latest micro-processing technology and debugging software, it can accurately identify the echo of level.
