BBZ MH-GA Three-wire Ultrasonic Level Meter Cast Aluminum Type

BBZ MH-GA Three-wire Ultrasonic Level Meter Cast Aluminum Type thumbnail-1
BBZ MH-GA Three-wire Ultrasonic Level Meter Cast Aluminum Type photo-1
US$ 300 - 1,400 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
BBZ
Model Number:
BBZ MH-GA
Contact Supplier Request Quote Chat Now
Henan BBZ Automation Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai Ningbo Lianyungang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name BBZ
Model Number BBZ MH-GA
Product Description

BBZ MH-GA three-wire ultrasonic level meter cast aluminum type

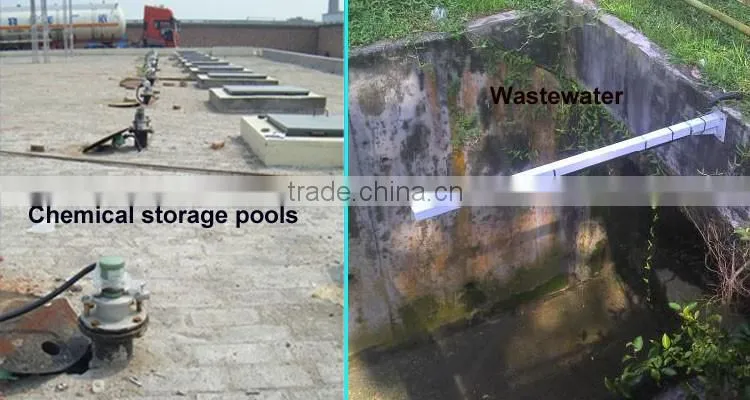

Product Application

1. water and wastewater treatment
Pumping stations, wet wells, biochemical reaction tanks, sedimentation tanks, etc.
2. power, mining
Mortar pool, coal slurry pond, water treatment

Specifications

Measuring range
0.3~5 m, 0.3~8 m, 0.5~10m
Dead band
<0.3m
Emission angle
12°
Minimum display resolution
1mm
Accuracy
±0.3%×full range
Temperature compensation
automatically
Frequency
20 KHz~43.0 KHz
Display
LED (LCD display optional)
Onsite setting
press button
Calibration
factory /onsite calibration
Output
analog output: 0～20mA；4～20m
Load impedance
>300Ω;0~5V;1~5
Digital output
RS485 (Modbus) two NPN switches
Work voltage
DC12—30V or AC220V
Power consumption
<1.5W
Dimension
Φ79mm×210mm× G1 1/2 pipe screw (with Gong rings)
Material
aluminum for housing, ABS engineering plastics for transducer
Installation
G1 1/2 pipe screw or Φ47mm round hole
Key
3 sensitive button A.B.C
Weight
900g
Protection degree
IP65
Relative humidity
0 to 95%
Ambient temperature
-10℃~60℃
Ambient pressure
normal condition

Main features

1) International common electrical interface to facilitate the construction

2) Sturdy and stable sensor for harsh industrial applications;

3) Strong anti-interference, arbitrarily set upper and lower limits node and online output regulation;

4) Transducer built-in temperature sensor, real-time automatic temperature compensation of the measured values;

5) Blind area can also be manually set, shielding interference signal nearby probe;

6) 4 ~ 20MA current output, optional fieldbus interfaces.

Applications
