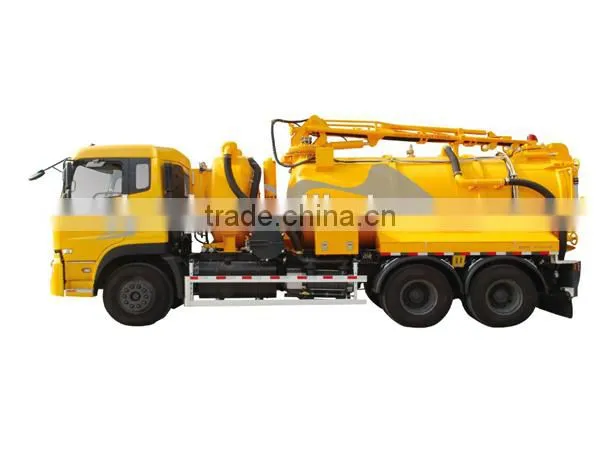

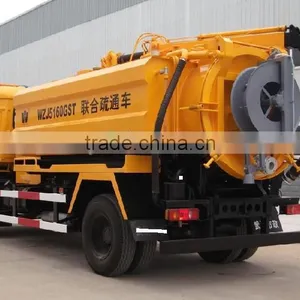

Our brand jetting acuum suction sewage truck
is mainly applied to various types of urban underground sewage pipes clean and clear, and can be used for pumping water wells sewage, sludge and large lumps, transport, handling,
Highlights the versatility and user-friendly design concepts, product is fully functional, elegant, and easy to operate. Sludge tank from 8,000 Liters to 16,000 Liters.
The product uses FAW, DFAC-DONG FENG, SHACMAN, SINOTRUK, FOTON, JAC, CAMC, SAIC-Iveco, NORTH Benz(BEI BEN), HYUNDAI China, Nissan UD China, HINO China, ISUZU China 6 × 4 chassis, safety, comfort, economy and so reached the top international level.
| Shape | Cylindrical shaped tank with external reinforce rings. |
| Material | Mild steel. |
| Capacity . | 8,000Lilters sludge tank. 3,000Liters water tank. |
| Shell thickness | 6mm. |
| Dish end thickness | 6mm. |
| Working pressure | -0.9bar underpressure. |
| Tank inner filter |
Separate the sucked wastewater and solid, which protects key parts like pump, valve and hose. |
| Tipping cylinder | Italy PENTA brand front tipping and single acting cylinder. Front tank bottom mounted with safety support for protection |
| Liquid level indicator | Mounted at the rear of the tank. |
| Overpressure safety | Overpressure relief valve on tank top. |
| Full opening rear lid | Hydraulically opening and locking |
| Outlet Valve | One 150mm ball valve, manual operation. |
| Anti over-flow |
SS float ball prevents overfilling sludge tank. When the tank's full, ultrasonic level indicator is activated and vacuum pump is closed automatically, allow no need to shut down from the Cab. |
| Reverse discharge | Pressure switch system changes positive pressure to be negative, which allows the tank inside wastewater be reversed discharged via suction boom. This improves working efficiency. |
Vacuum Unit
| Vacuum pump |
Liquid ring vacuum pump, is driven from the PTO on the gearbox, provides high airflows along with high vacuum levels for removing materials above or below liquid surfaces. Engaged and disengaged from drivers cab. |
| Brand |
KENFLO |
| Max vacuum level | -0.92Bar |
| Air flow rate | 2800m3/h. |
| Power requirement | 90kW. |
| Rotate speed | Max 800r/min. |
| Pump cooling | Cooling Water tank in mild steel 1,500L, mounted behind cab |
| Pump protection | 1)stainless steel ball valve in the tanker;2)filter;3)auto vacuum check valve. |
| Telescopic suction boom | Stainless steel material. 270°horizontal rotation and 1350mm extension, 6m working radius. Vertical lift up to 6m from ground |
Power Take Off
The PTO (OMSI brand) is mounted to the transmission
l 1 driving window for driving the vacuum pump
l 1 driving window for driving the water pump
l 2 driving windows for driving all the hydraulic devices
High Pressure Jetting Unit
Pressure pump brand URACA
Flow 290L/Min
Max Pressure 200bar
Power requirement 135kW
Pressure hose 100m, ID25mm(1″). The pressure hose with pneumatic water pressure regulation device, can be connected to the air supply system of the truck to blow out all water in case of temperatures below 0°.

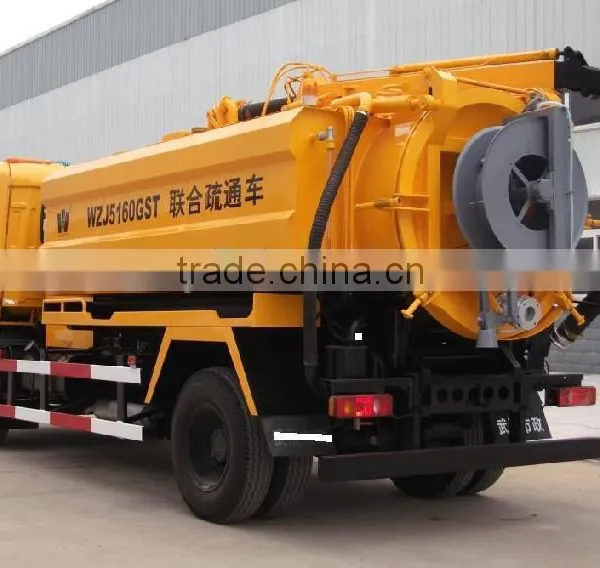

Hose reel Rear mounted, with 110° horizontal rotation.
Jetting hose be placed into pipeline via hose guide frame. And can be collected back hydraulicly .
Suction Hose
Length 20m, can be lengthened
ID 5″
Material steel line and rubber hose
Accessory 5″ non-return valves
Jetting Hose
Length 100m, can be lengthened
ID 5″
Material steel line and rubber hose
Nozzle
|
1 jetting nozzle, 1 pointed nozzle Optional super drilling head: Made by wear-resistant materials and equipped with drill, cut tree root and concrete waste, specially designed for completely blocked sewer. |
Finishing
| Hose carrier | Tool box on each side . Length according to available place. |
| Side hose reel | With a capacity of up to 20m of 1/2″ hose. |
| Hand-Gun cleaner | 50 L/Min flow rate, 110bar. |
Hydraulic equipments
| Equipment | All needed control valves and equipment for a smooth and easy operation of the unit are installed. |
| Hydraulic |
The unit is equipped with a suitable oil tank. Hydraulic order for rear lid opening, tank tipping, suction boom telescoping, lifting and rotation. |
Additional safety features
| Emergency stop | An emergency stop is installed on the main control panel. |
| Working light | 1 working light is equipped on the right side of the truck. |
