Help CenterFaucet Pad Printing Machine
Related Products
Specifications
faucet pad printing machine1.1-10 color pad printing press
2.Multicolor pad printing
3.Automatic
faucet pad printing machine
Specifications:
2.Ink cup/tray for your optional
3.Factory price
4.Multicolor pad printing
5.CE approved
Parameters:
Model No. |
ZX-P200 |
Plate Size(mm) |
8"x4"(200x100mm) |
Printing Speed |
1200 cycles/hour |
Air Consumption |
5 bar |
Dimension |
L1400 x W1500 x H1600mm |
Power |
220V 50/60Hz 60W |
What is pad printing ?
Pad printing is an indirect offset (gravure) printing process that involves an image being transferred
from the printing plate (cliché) via a silicone pad onto a substrate (surface to be printed). There are
two common methods used in inking the plates: the open inkwell system and the sealed ink cup
(also known as closed cup) system.
Open ink well systems for pad printing (older technology) use a trough (ink well) for the ink supply,
located behind the printing plate. A flood bar pushes a pool of ink over the plate, and a doctor blade
removes the ink from the plate surface, leaving ink on the etched artwork area ready for the pad to
pick up.
Sealed ink cup systems for pad printing (latest technology) employ a sealed container (ink cup), which
acts as the ink supply, flood bar and doctor blade all in one. A ceramic ring with a highly polished
working edge provides the seal against the printing plate.
Application:
· Medical devices (surgical instruments, etc)
· Implantable & in body medical items (catheter tubes, contact lenses, etc.)
· Golf ball logos/graphics
· Decorative designs/graphics appearing on Hot Wheels or matchbox toy cars
· Automotive parts (turn signal indicators, panel controls, etc.)
· Letters on computer keyboards and calculator keys
· TV and computer monitors
· Identification labels and serial numbers for many applications
Features:
1.the work platform can be X.Y adjusted to meet different printing position
2. the printing stroke can be adjusted with high precise value
3.the printing speed and air pressure can be adjusted to meet different printing condition
4.the machine can be "manual" and "auto" mode for optional
5.the programming of our PC circuit panel can be edited to meet different requirements as well.Such
as twice ink cup picking with once printing
6.24 stations conveyor belt to save feeding time and ensure high efficience.
7.8 hot air blowing to help drying during printing.

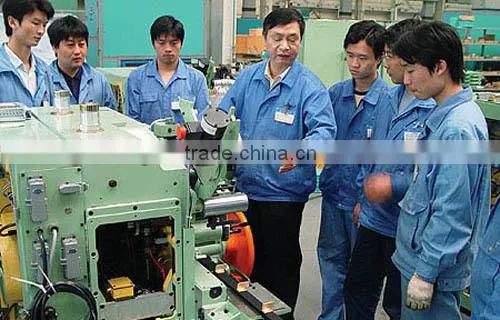

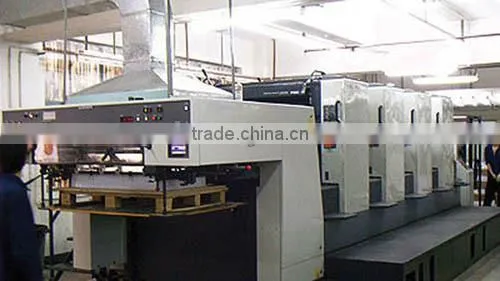

Our factory:
