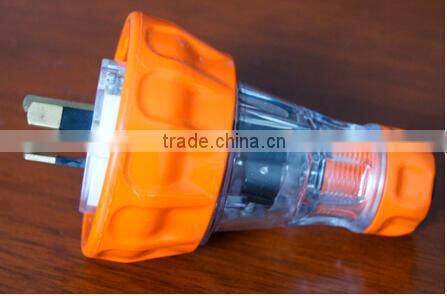

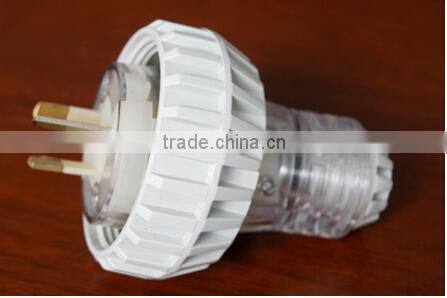

3 Pins IP66 Electrical Industrial Plug

20A 3 Pins industrial plug and connector (56P320)

Protection class: IP66 rated

Current:10A, 15A, 20A.32A

Max voltage: 250VAC

Phase: Single phase

Material: PC

Product code: 56P310/56P315/56P320/56P332

Certificates: SAA, IQNET, CQC

Other protections: waterproof, UV resistance, Dust-proof, Anti-corrosion, Pollution proof.

Package: inner color box, outside standard carton. 48.5*20.5*50cm/carton,

Standards of 56 series plugs :

 Single Phase 56P332 IP66 250VAC  3 Flat Pin industrial socket with SAA

Features  of  56P plugs series:

 Single Phase 56P332  IP66 250VAC 32Amp 3 Flat Pin industrial socket with SAA

 industrial plug and connector

20A  3 Pins Waterproof Straight Plug

1, Cable Gland

  Very flexible with positive grip to ensure reliable sealing

2. IP66 Rating(in accordance with AS1939)

   When engaged in the 66C switched socket outlet,with the hydrant ring fully engaged, an international protection  rateing of IP66 is achieved

3, Internal Cable Clamp

  Grips two ways and is fast-fixing,preventing the cables(s) from twisting

4, Transparent Polycarbonate Body

   Allows instant examinations of connections

5,Stainless steel Combination Head Screws

   Easy installation and corrosion resistance

6, Sturdy Terminal Housing

    For years of Reliable service and durability

9,Clear Pin Surround

   Providing quick and sure location of plug in socket and the protection of pins

Note - IP Ratings only apply to cable terminations as per wiring instruc

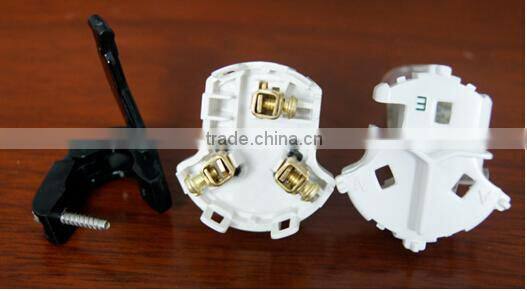

Comparison about 56SERIES NEW AND OLD detial

Attractive design for plug end cable connected part

1. rotate to connecte cable and adjust with cable size
2. easy to open and close
3. without need to cut end cable connected
waterproof ring when go through with big cable
4. save time and labor cost for connection
