Home brew mini beer brewery price
Brewing is the production of beerthrough steeping a starch source (commonly cereal grains) in water and then
fermenting with yeast. It is done in a breweryby a brewer, and the brewing industryis part of most western
economies.
There are several steps in the brewing process, which include malting, milling, mashing, lautering, boiling,
fermenting, conditioning, filtering, and packaging.
1.Introduction of our small beer brewery
The 50L mini beer brewery is designed for home brewer who brew for hobby, recipe or even pilot.
This type beer equipment is one of our best selling.
And it also can applies to bar, restaurant, hotel etc. Complete beer equipment for home breweries with
production from 50L to1000L per day. As well as it is fine workmanship, excellent performance and
easy operation.trust it will be your best choice for brewing good beer.
With small batches and mini production, it is with lower price which is much more suitable for starting new
business
2.Advantages of mini beer brewery system
-Advanced technology in the beer equipment industry.
-Perfect turnkey solution.
-3 years quality guarantee from commissioning.
-Reasonable price.
-OEM service is welcome around the world.
-Small floor coverage.
3. The specification of mini beer brewing machine
Each winemaker has his own understand when brewing beer. We are able to design the equipments
according to your personalized request. If you don’t have experience in this field, you can choose
our standard solution as below:
There are total two different brewhouse of our 50L mini homeuse beer brewery. One type included only
one vessel Mash/Lauter/Boiling Tun. Another brewhouse included two vessels: Mash/ Lauter + Kettle/whirlpool.
The latter is much more professional for brewing.
Machine Model |
TT-50L |
Capacity |
50L/Day |
Area Request |
15M2 |
Installed Power |
8KW |
Water Consumption |
0.2M3/Day |
Components |
Mash/Lauter tank + Boil/Whilpool tank |
Interior Shell |
SUS 304, Full welded; TH=3mm |
Exterior Shell |
SUS 304, Full welded; TH=2mm |
Interior Finish |
Overall polishing to 0.4um without dead corner |
+ There are total vessels included.
+ The mashing and lautering will be finished in same one vessel.
+ The boiling and whilpool will be finished in same vessel.
+ About fermentation tank, according to the mashing capacity 50L, it will be 50L or 100L.
+ Other Facilities for optional
Portable CIP system for cleaning the tanks
Steam boiler for brewhouse heating
Water treatment for brew water
Oil free air compressor

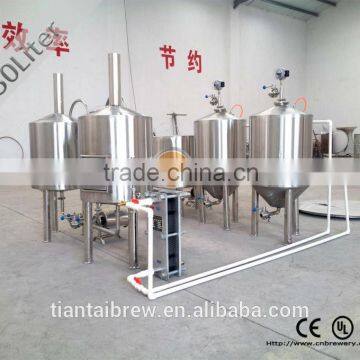

4. Photos show of our mini brewhouse brewery
5. Brewing process for 50L beer brewery
1) Crushing and saccharification
Grind the malt to powder, make the wort after mashing transported to the filter pan by a pipeline
2) Filter
Send the wort after mashing boiled to wine tank filtration, separate the wort and spent grains
3) Boil and add hops
Transferred to cooking wine cooking water tank with 100 degrees about 70 minutes, After adding hops
, cooking the wort to the remaining 1000L till then along the pipeline transported to the fermentation
room Cooling
4) Cooling
The wort’s temperature is lowered to 10-12 C by cooler, then go into the fermentation tanks to ferment.
5) Fermentation:
After adequate cooled wort into the fermenter, adding 10 - 15L of yeast for fermentation, takes about
six days left to complete the fermentation, in this step will be the final malt in the sugar into alcohol by
yeast (yeast Jiamai juice = Beer )
6) Matuation and storage:
Mature in the beer store as the necessary steps before ripening, beer maturation takes about three weeks
of storage at 0 ° C for cask beer color, unique flavor development in this step will be the formation
6. Tiantai Beer brewing machine cases show
Brewing is amazing.
In fact, the production of beer is a process of nature. We use barley,hopes, yeast and no artificial
materials can get involved in it. But without human, people will never get the chance to taste
so many types of beers today. So it is hard to say that we brew the beer. We just lead the
directions of the formation of the beer.
There are some other different capacity and models of our beer brewing
system as below, please click the photos to learn more information:
Welcome to send us inquiry for detaied cost of the mini beer brewery!
