Home > Products > Rigging Hardware > US Type Bow Shackle

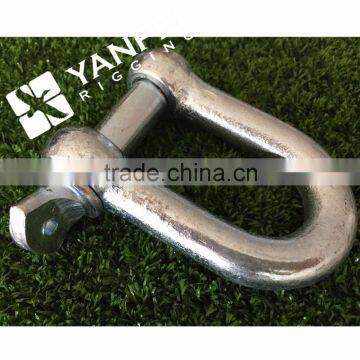

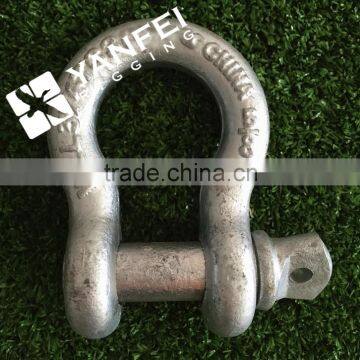

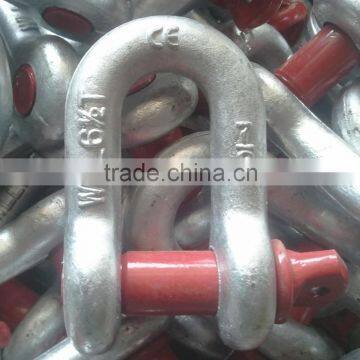

US Type Bow Shackle
- 0 per Month
- Qingdao Port
- T/T
Product Details
Material: | Other, Carbon steel | Type: | Other, US Type, Bow shackle, d shackle | Shape: | Bow |
Surface Treatment: | Galvanized | Place of Origin: | Shandong, China | Brand Name: | OEM/YANFEI |
Model Number: | shackle |
Product Description
Material: Alloy Steel
Finishing: Hot Dip Galvanized/ Galvanized/ Self Colored
Heat treated: Tempered and Quenched
Minimun Utimate Strength: 6 Times /4 Times The Working Load Limit.
Packing: Gunny Bag / Carton, pallet
ITEM NO | Nominal | Working | Dimensions | Weight | |||||||||
Size | Load | (mm) | |||||||||||
Limit | each | ||||||||||||
(in.) | (tons) | A | B | C | D | E | F | G | H | I | M | (kg) | |
YFCS0832 | 1/4 | 1/2 | 11.90 | 7.85 | 6.35 | 6.35 | 24.60 | 15.50 | 22.40 | 40.40 | 4.85 | 35.10 | 0.05 |
YFCS1032 | 5/16 | 3/4 | 13.50 | 9.65 | 7.85 | 7.85 | 29.50 | 19.10 | 26.20 | 48.50 | 5.60 | 42.20 | 0.08 |
YFCS1232 | 3/8 | 1 | 16.80 | 11.20 | 9.65 | 9.65 | 35.80 | 23.10 | 31.80 | 58.50 | 6.35 | 51.50 | 0.13 |
YFCS1432 | 7/16 | 1-1/2 | 19.10 | 12.70 | 11.20 | 11.20 | 41.40 | 26.90 | 36.60 | 67.50 | 7.85 | 60.50 | 0.20 |
YFCS1632 | 1/2 | 2 | 20.60 | 16.00 | 12.70 | 12.70 | 46.00 | 30.20 | 41.40 | 77.00 | 9.65 | 68.50 | 0.27 |
YFCS2032 | 5/8 | 3-1/4 | 26.90 | 19.10 | 15.70 | 16.00 | 58.50 | 38.10 | 51.00 | 95.50 | 11.20 | 85.00 | 0.57 |
YFCS2432 | 3/4 | 4-3/4 | 31.80 | 22.40 | 20.60 | 19.10 | 70.00 | 46.00 | 60.50 | 115.00 | 12.70 | 101.00 | 1.20 |
YFCS2832 | 7/8 | 6-1/2 | 36.60 | 25.40 | 24.60 | 22.40 | 81.00 | 53.00 | 71.50 | 135.00 | 12.70 | 114.00 | 1.43 |
YFCS3232 | 1 | 8-1/2 | 42.90 | 28.70 | 25.40 | 25.40 | 93.50 | 60.50 | 81.00 | 151.00 | 14.20 | 129.00 | 2.15 |
YFCS3632 | 1-1/8 | 9-1/2 | 46.00 | 31.80 | 31.80 | 28.70 | 103.00 | 68.50 | 91.00 | 172.00 | 16.00 | 142.00 | 3.06 |
YFCS4032 | 1-1/4 | 12 | 51.50 | 35.10 | 35.10 | 31.80 | 115.00 | 76.00 | 100.00 | 191.00 | 17.50 | 156.00 | 4.11 |
YFCS4432 | 1-3/8 | 13-1/2 | 57.00 | 38.10 | 38.10 | 35.10 | 127.00 | 84.00 | 111.00 | 210.00 | 19.10 | 174.00 | 5.28 |
YFCS4832 | 1-1/2 | 17 | 60.50 | 41.40 | 41.10 | 38.10 | 137.00 | 92.00 | 122.00 | 230.00 | 20.60 | 187.00 | 7.23 |
YFCS5632 | 1-3/4 | 25 | 73.00 | 51.00 | 54.00 | 44.50 | 162.00 | 106.00 | 146.00 | 279.00 | 25.40 | 231.00 | 12.10 |
YFCS6432 | 2 | 35 | 82.50 | 57.00 | 51.00 | 51.00 | 184.00 | 122.00 | 172.00 | 312.00 | 31.00 | 263.00 | 19.20 |
YFCS8032 | 2-1/2 | 55 | 105.00 | 70.00 | 66.50 | 66.50 | 238.00 | 145.00 | 203.00 | 377.00 | 35.10 | 330.00 | 32.50 |
Qingdao Yanfei Rigging Co.,Ltd is located in Qingdao, China. For many years supplies a range of industrial products that covers lifting, lashing, slings, rigging, marine, mining, towing, transportation, construction, fishing and security applications... We provide not only high quality goods but also more additional benefits for our clients and partners.
With advanced production equipment, superb manufacturing process, strict management and with good quality product.
Under our business ideas "Quality first, Customer first", our goods are sold better and better.
Facing the market, our company will rely on a strong unity, forge ahead with determination and a leadership and workforce to meet the challenge, in fierce competition in the market ahead waves.
YANFEI will be your best business partner.
- Rigging Hardware
- Stainless Steel Rigging Hardware
- Steel Wire Rope & Fittings
- Chain & Chain Fittings
- Cargo Control Products
- Marine Rigging
How to order the products?
Send the inquiry with detail item description or with ITEM number. Tell us the quantity you need, the size of goods, and the packing. If there is no packing demand we take it as seaway packing. If possible please attach one reference picture to avoid any misunderstanding or any links from our website for we get a better understanding.
About sample:
Cost with free if the quantity small, and the express charge account into buyer’s.
About payment:
T/T, LC in U.S. Dollars or EUR, for small orders, PayPal is ok.
About lead time:
Cause all of our products manufacturer according customers order,
usually within 35days after receipt of your deposit.
How Will My Order Be Shipped?
Usually shipped by sea, small order or urgent order can by air or by courier after received your agreement.
How long does it take to receive my order?
According the distance from China to your port. Usually from China to European about 22 days.
To West of American 20 days. To Asia 7 days or more.
By air or by courier will be faster, within 7days.
About mini order:
Different products with different limited, please contact us to confirm.
What's your quality guarantee?
We have different kinds of products which can meet different quality standard.
YANFEI QC department will teset products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
What's benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
Your can get good reputation from your market and obtain more orders.
