Home > Metallurgy, Mineral & Energy > Aluminum > Aluminum Sheet > Alloy 3003-H18 Aluminium Flat Sheets for PCB Drilling

Alloy 3003-H18 Aluminium Flat Sheets for PCB Drilling

Name: Alloy 3003-H18 Aluminium Flat Sheets for PCB Drilling
Brand: Lanren
SKU: 113969367
Availability: InStock

Alloy 3003-H18 Aluminium Flat Sheets for PCB Drilling thumbnail-1

Alloy 3003-H18 Aluminium Flat Sheets for PCB Drilling photo-1

US$ 2,000 - 3,000 MOQ: 1 Ton

Key Specifications

Get Latest Price

Grade:

3000 Series

Temper:

O-H112

Type:

Plate

Contact Supplier Request Quote Chat Now

Chongqing Lanren Aluminium Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qindao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Grade 3000 Series

Temper O-H112

Type Plate

Application Building, Decoration, Printing, Packing

Thickness 0.2mm-150mm

Width 500mm-2800mm

Surface Treatment Coated

Alloy Or Not Is Alloy

Place of Origin Chongqing, China

Brand Name Lanren

Model Number LR

Alloy 3003-H18 Aluminium Flat Sheets for PCB drilling

Basic information:

Aluminium sheet/Aluminium Plain Sheet/aluminium plate/aluminium panel

Alloy:1xxx,3xxx,8xxx series

Temper:O,F,H111,H112,H12,H14,H16,H18,H22,H24,H26 etc.

Thickness:0.2mm-150mm

Width:500mm-2800mm

Length:500mm-10000mm

Tensile Strength:110 to 170 MPa

Elongation:>=2%

Standard dimensions:1,219x2,438mm, 48''x96''

3003-H14 Aluminum Sheet - (ASTM B209, QQ-A-250/2) Excellent weldability, formability,
with good corrosion resistance make 3003 Aluminum Plate a popular and economical choice.
3003 Aluminum Plate has a smooth, shiny finish and is popular for many cosmetic and industrialapplications, including: decorative trim, fuel tanks, food & chemical handling, trailer siding & roofing, etc.

Non-magnetic, Brinell = 40, Tensile = 22,000, Yield = 21,000 (+/-)

5052-H32 Aluminum Sheet - (ASTM B209, QQ-A-250/8) Superior corrosion resistance,
good weldability, with excellent formability, makes 5052Aluminum Plate a common choice
for chemical, marine or saltwater applications. 5052 Aluminum Plate applications include:
tanks, drums, marine hardware, boat hulls, etc.

Non-magnetic, Brinell = 60, Tensile = 33,000, Yield = 28,000 (+/-)

6061-T651 Aluminum Sheet - (ASTM B209, QQ-A 250/11) Offers a combination of increased
strength,corrosion resistance, and machinability making it the most widely used aluminum grade.
6061 Aluminum Plate is heat treatable, resists cracking due to stress, is easy to weld and machine,
but limited on formability. 6061 Aluminum Plate is ideal for structural framing, base plates, gussetts,
motorcycle & automotive parts, etc.

Non-magnetic, Brinell = 95, Tensile = 45,000, Yield = 40,000 (+/-)

Alloy	Temper	Thickness(mm)	Tensile Strength (Rm/MPa)	Elongation(A%)
1100	o	0.3-0.5 0.51-0.9 0.91-0.6	≤100	≥20 ≥25 ≥28
	H14	0.3-0.4 0.41-0.7 0.71-1.0 1.1-6.0	≥100	≥3 ≥4 ≥5 ≥6
	H18	0.3-0.9 0.91-4.0 4.1-6.0	≥140 ≥140 ≥130	≥2 ≥3 ≥

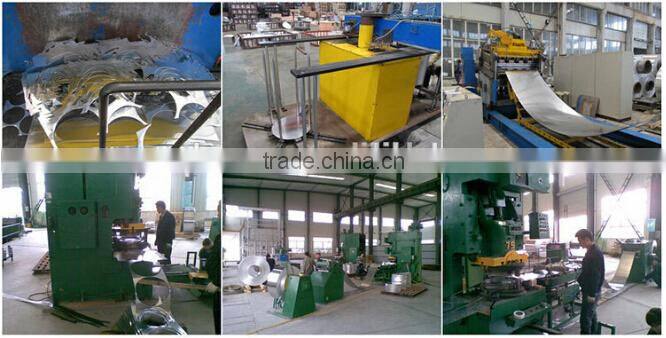

Our workshop:

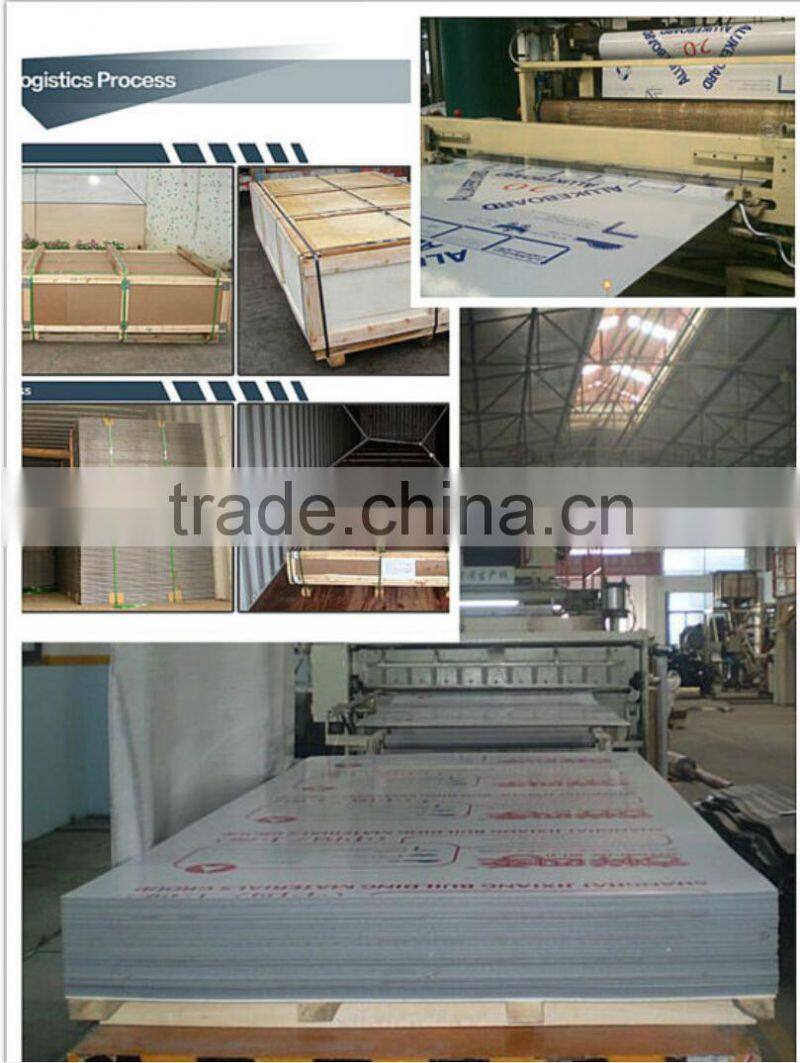

Standard export packaging:

Division	Description	Application	Feature
1000 SERIES	1050 1060 1070 1100 1235representative series aluminum plate is also known as pure aluminum, in the series in 1xxx series belongs to all the alumina quantity of a maximum number of series. Purity can achieve 99.00% above.	Utensil, decoration, Reflecting plate, printing plate, heatproof plate,cookware	Easy to process and weld,resistant to rust,high,conductibility of electricity and heat,low strength
3000 SERIES	3xxx series aluminum represents 3003 3004,3005, 3 A21 primarily. And can be called in the 3xxx series aluminum antirust aluminum production process more outstanding. The 3xxx series aluminum plate is by manganese as the main component. Content at 1.0-1.5 between. Is a rust-proof function better series. Conventional application in the air conditioning, the refrigerator, such as car in damp environment	Utensil(F/P, inside of rice cooker), aluminum can,material for interior and exterior of building,chemical equipment,Cellular Phone	20% higher strength than the 1100 series, easily welded and brazed, good antirust,ability Non-heat treatable
5000 SERIES	5xxx series representatives 5052 5005 5083,5754. The 5000 series aluminum alloy aluminum belong to the more commonly used series, the main elements for magnesium, with magnesium in the amount between 3-5%. And can be called aluminum magnesium alloy. Key features for low density, high tensile strength, elongation rate is high. In the same area under the weight of the magnesium alloy aluminum less than other series.	Ship board heatproof apparatus, material for interior and exterior of building, Parts of Electronic tools.Automobile Components	Excellent corrosion resistance andweld ability together with Easy to process and weld and superior hardness &heatproof Can be anodized for increased corrosion resistance
6000 SERIES	6xxx series represents 6061 mainly contain magnesium and silicon of two elements, so focused on the 4000 series and the advantages of the 5000 series 6061 is a cold treatment aluminum forging products, apply to fight against corrosion, oxidizing demanding applications.	IT equipment & facility, Mould material, motor material, automatic line, machine & plant etc	Easy to process , good corrosion resistance, high toughness and processed without distortion after heat-treatable, superior surface treatment
8000 SERIES	8xxx series is relatively commonly used for 8011 belongs to other series. It is for major function cap of aluminum, also used in the radiator, most applications for the aluminum foil.	Kitchen utensils,Bottle cap	8000 series is durable to process with special alloy
