8*4 Tipper Truck

Name: 8*4 Tipper Truck
Brand: Qixing
SKU: 113966525
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Capacity (Load):

21 - 30t

Drive Wheel:

8x4

Hubei Qixing Vehicle-Body Limited Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Wuhan

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Capacity (Load) 21 - 30t

Drive Wheel 8x4

Horsepower 351 - 450hp

Transmission Type Manual

Emission Standard Euro 3

Fuel Type Diesel

Size 9915*2500*3130mm

Place of Origin Hubei, China

Brand Name Qixing

Model Number M3138D

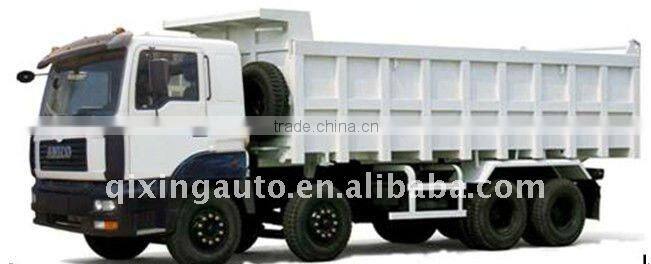

8*4 tipper truck

Qixing is the leading brand of heavy duty trucks in China, our products are strong, big power, oil saving and most comfortable.

Engine	Engine model: WP12.400N WEICHAI POWER CO.,
	Type: Diesel , 6-cylinder in-line with water cooling, turbocharged & intercooled,
	Injection pump: BOSCH common rail system
	Maximum output according to DIN: 294kw/2100r/mm
	Maximum torque: 1920N.m/1000-1400r/min
	Displacement criterion: EUR 3
Clutch	Model: Φ430Diaphram spring, single-plate and dry type, VALEO
Transmission	Model: FAST 12JS200TA,Eaton Tech, with overran gear and Full synchronizer
	Ratio: 12.10;9.41;7.31;5.71;4.46;3.48;2.71;2.11;1.64;1.28;1.00;0.78 11.56(R) 2.59(R)
Axle	F: 6.5 ton2, 13ton 2, Steyr axle, Ratio: 5.73, Hub reduction
	Type: Rigid stub axle with T type
Steering system	Model: Germany ZF8098, Steering with total power assisted
Braking system	Service brake Dual circuit compressed air brake, WABCO ABS/ASR/EBL/TMP
	Parking brake: Spring energy compressed air brake
	Auxiliary brake :Engine exhaust brake with MAN EVB
Electrics	Operating voltage: 24V cathode cable
Dimensions in mm	Wheelbase	1850+3850+1350
	Approach angle	27°
	Departure angle	58°
	Overall length* width* Height	991525003130
Weight in kg	Max loading capacity	23000KG
	Dead weight()	10720(chassis)+5000(cargo box)
	Gross vehicle weight	10720KG
Performance	Maximum driving speed (km/h)	86Km/h
	Fuel tank capacity (L)	420L
	Maximum grade ability (%)	33°
	Minimum ground clearance (mm)	320
	Fuel consumption (L/100km)	≤42
	Min. turning radius (m)	≤20
