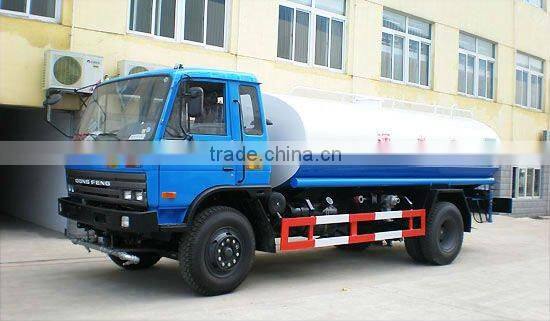

Dongfeng water truck
As top cabin and truck manufacturer in China, our product has advantage of “High quality, high reliability, and high stability”
| Product | Dongfeng 145 Watering Truck | ||||
| Chassis type | EQ1108KJ | ||||
|
Cubage (T ) |
8-10 | ||||
| Parameters | Overall dimension length/width/height (mm) | 7410×2470×2900 | |||
| GVW(kg) | 10495 | ||||
| Kerb Mass(kg) | 5800 | ||||
| Approach angle/ Departure angle(mm) | 17/15 | ||||
| Front suspension/rear suspension(mm) | 1205/2255 | ||||
| Fuel Type | diesel | ||||
| Fuel Consumption/100 km | 9 | ||||
| Max Speed | 90 | ||||
| Engine | Type | YC4E160-30/YC6J180-30/ISDe160 30/ISDe180 30 | |||
| Displacement/Power(kw) | 4260/118(160ps),6500/132(160Ps),4500/118(160ps),4500/132(180ps) | ||||
| Manufacturer | Guangxi Yuchai Engine Co.,Ltd/Dongfeng Cummins Engine Co.,Ltd | ||||
| Type | 4-in-line | ||||
| Chassis | Drive Type | 4×2 | |||
| Wheelbase(mm) | 3950 | ||||
| Tread(front/rear) | 1831/1640 | ||||
| Front axle | 3 .6Ton | ||||
| Rear axle | 9Ton | ||||
| Steering gear | Duel-armed steering wheel,recirculating ball steering | ||||
| Transmission | 5 forward gear,1 reverse gear,mechanical transmission | ||||
| Clutch | Uniwafer,dry diaphragm spring clutch | ||||
| Braking system | Brake fluid system,drum brakeChoose to fix air braking. | ||||
| Cab | Non-longheaded,single row | ||||
| Number of spring axle(front/rear) | 9/12+9 | ||||
| Tire Type | 9.00-20 | ||||
| Air-condition | Choose to fix | ||||
| Watering system | pump | Self-priming centrifugal pump | |||
| Special performance parameters | Watering width | ≥15 | |||
| Watering gun range | ≥28 | ||||
| Vertical suction range | ≥7 | ||||
| Watering pressure | 250-450KPa | ||||
| Watering | 0.2-2l/ | ||||
| Pump lift | 90m | ||||
| Suction time | <5min | ||||
| Flow rate | 60 m3/h | ||||
|
parameter |
unit |
|||
Vehicle model |
CLW5163GSST3 Water Truck |
|
|||
Chassis model |
EQ1168GLJ2 |
|
|||
Overall dimensions |
9000×2490×2950 |
mm |
|||
Fact cubage |
10000-11000 |
L |
|||
GVW |
Appro×16000 |
kg |
|||
Rated load wight |
Appro×10000 |
||||
Mass in working order |
Appro×5805 |
||||
Body internal dimensions |
5800×2180×1200 |
mm |
|||
Wheel base |
5100 |
||||
F/R track base |
1810/1800 |
||||
Approach/departure angle |
24/15 |
° |
|||
Exhaust/kw |
4260/118 |
ml/kw |
|||
Max speed |
90 |
km/h |
|||
Tire specification |
9.00-20,10.00-20 |
Engine type |
YC4E160-33 |
||
Traction system |
4×2 |
transmission |
6-speed with over drive |
||
Number of axles |
2 |
Electric system |
24v |
||
Operation control system |
Electrically hydraulic control |
Allowable passengers in cab |
3 |
||
Equipment |
Equipped with front(rear,side)sprinkler(sprinkling width14m ) Equipped with rear working platform with water cannon (range28m) Equipped with CLW pump(suction lift6m) Equipped with fire valve,water valve,and filter gauze |
||||
Engine |
GuangXi YuChai,diesel engine |
||||
Production cycle |
About 15days |
||||
Warranty |
12 month,from the date of supply |
||||
