6*4 Tipper Truck

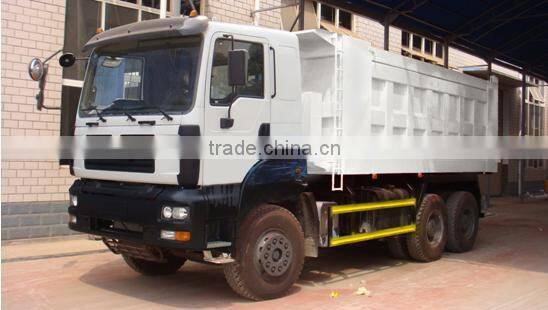

6*4 Tipper Truck photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Drive Wheel:
6x4
Capacity (Load):
11 - 20t
Horsepower:
351 - 450hp
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan
Delivery Detail:
Delivery time depends on order quantity.
Drive Wheel 6x4
Capacity (Load) 11 - 20t
Horsepower 351 - 450hp
Condition New
Transmission Type Manual
Emission Standard Euro 2
Fuel Type Diesel
Gross Vehicle Weight 26
Place of Origin Hubei, China
Brand Name Qixing
Model Number M2633
Dimensions (L x W x H) (mm) 6800*2500*3138

6*4 tipper truck



As top cabin and truck manufacturer in China, we can assure you that our products are reasonable in price and good in quality.



BASIC SPECIFICATIONS     TIPPER TRUCK              DRIVING TYPE 6×4

Engine

Engine model: Steyr WD12.336

Type: Diesel, 4-stroke, direct injection engine

6-cylinder in-line with water cooling, turbocharged & intercooled

Maximum output according to DIN: 247 KW at 2200 rpm

Maximum torque: 1350 N.m at 1100~1600 rpm

Displacement criterion: EUR

Clutch

Model: φ430, diaphragm spring , Single-plate dry clutch, France Valeo made in China

Type: Hydraulic operating, compressed air assisted

Transmission

Model: Fuller RT-11509C

Operating type: Manual shift with hydraulic assistant

Front axle

Model: Steyr 6.5T, Rear 13T, Ratio: 5.73

Steering system

Model: ZF8098, (Germany ZF ,made in China)

Type: Steering with total power assisted

Braking system

Service brake: Dual circuit compressed air brake

Parking brake: Spring energy compressed air brake

Auxiliary brake: Engine exhaust brake, with MAN WEVB Tech

Electrics

Operating voltage: 24V, negative grounded

Dimensions in mm

Wheelbase

3600 +1350 mm

Approach angle

 (14°)

Departure angle

 (42°)

Overall length* width* Height(mm)

6800*2500*3138

Weight in kg

Maximum loading capacity

15000 kg

Dead weight

11000 kg

Performance

Maximum driving speed (km/h)

92

Fuel tank capacity (L)

380

Maximum grade ability (%)

38

Minimum ground clearance (mm)

360

Fuel consumption (L/100km)

29

Min. turning radius(m)

19.2



6*4 tipper truck



 6*4 tipper truck



6*4 tipper truck
