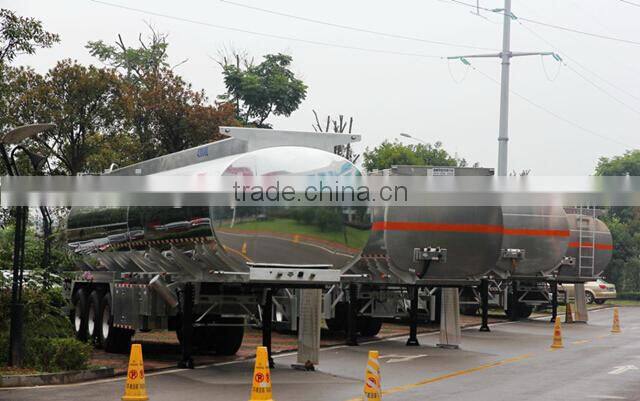

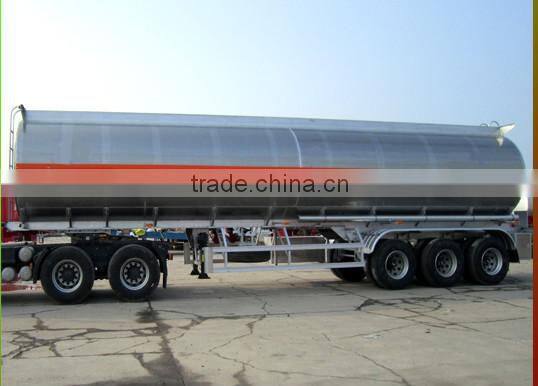

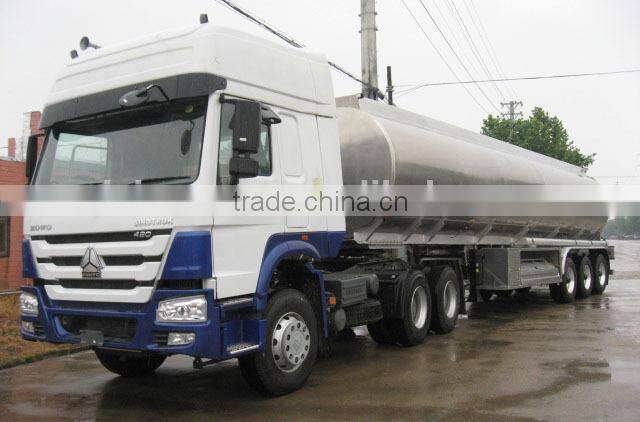

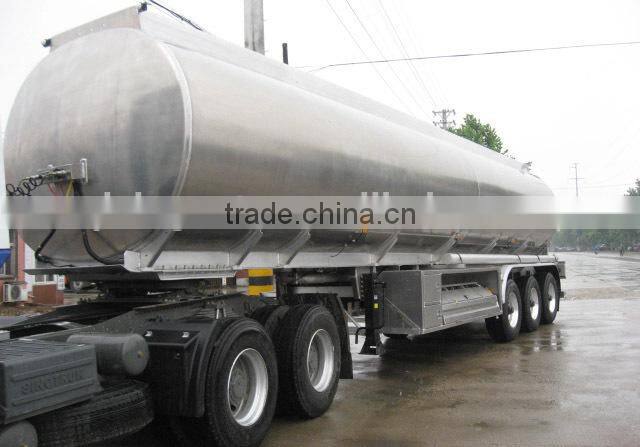

3 Axles Aluminium Tank Semi Trailer for Fuel Transportation

Name: 3 Axles Aluminium Tank Semi Trailer for Fuel Transportation
Brand: Qixing
SKU: 113960893
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Semi-Trailer

Material:

Aluminum / Alloy

Certification:

Hubei Qixing Vehicle-Body Limited Company

Payment & Shipping

Payment Methods:

Port of Shipment:

WUHAN/SHANGHAI China any port

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Aluminum / Alloy

Certification CE

Size 12980*2500*3550

Max Payload 40000

Place of Origin Hubei, China

Brand Name Qixing

Model Number QXFTA090

3 Axles Aluminium Tank Semi Trailer for Fuel Transportation

Oil / Diesel Fuel Transport Semi Tank Trailer
Model	QXFTA090
Wheel Base	1310 (mm)
Tyre Specifications	12R22.5
No. Of the Tyres	12 pcs ISO Certificated
Axle	13Tonnage
No. Of the Axles	3 pcs
Landing Gear	28 ton capacity Fuwa with static capacity of 80T
Suspension	Heavy duty mechanic suspension with 10 pcs leaf spring
King Pin	2' and 3.5' interchangable traction pin
Departure Angle	15
Front/Rear Overhang	1900 mm
Material of the Main Beam	Automatic submerged arc welded Main beams aluminum 5083, through cross beams aluminum 5083 Body material aluminum 5083 manganese plates, automatic submerged arc welded
Brake System	Automatic air brakes Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber.
Colour	As the buyers' request
Accessory	One tooling boxes ,Two spare tire carrier, Two fire extinguisher
Tanker side thickness	5mm Aluminum steel
Net Weight	12 T
Oil tanker	1000 liters Round Shape
Spare tire carrier	1 set
Electrical System	24V, 7core socket, lights according to European standards.
Tool Box	1 box of standard tools
