FIREPROOF ALUMINIUM COMPOSITE PANEL, OUTDOOR CLADDING IN

FOB Price

US$ 3 - 18 / Sheet

250 Sheets(Min. Order)

Port shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	lanren
Model Number	LRC1	Usage	Outdoor

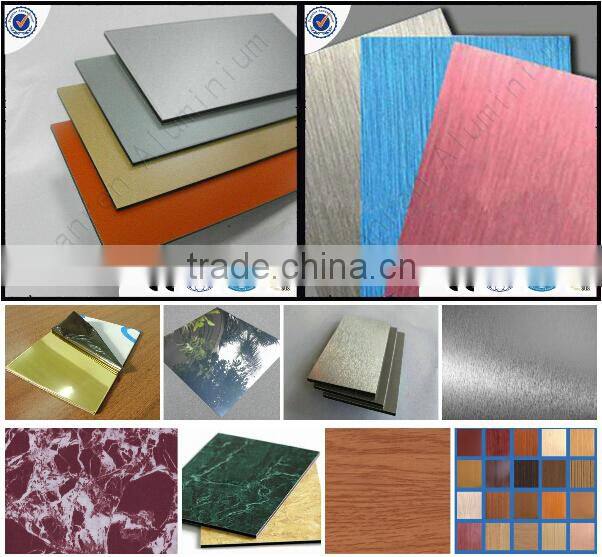

Function	Fireproof	Surface Treatment	Anodized, Brushed, Mirror, PE Coated, PVDF Coated

Product Description

Pvdf acp aluminum composite panel for Building meterials

-Light weight, high strength, extreme rigidity, superior impact resistance,

-excellent surface flatness and smoothness ,

-heat insulation, sound insulation, fire-resistance,

-acid-resistance, alkali-resistance, good weatherproofing and non-resonance

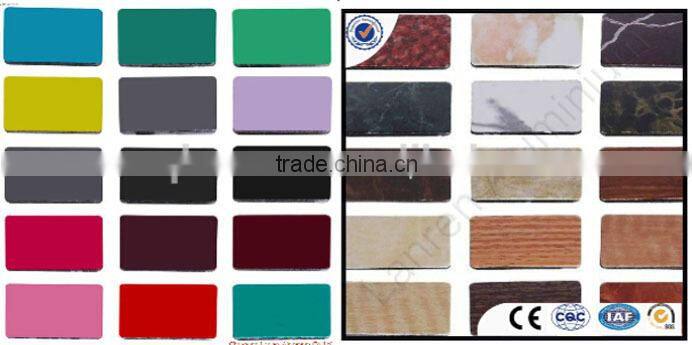

-various uniform colors ,can be easily processed and fabricated, quickly installed,

-elegant and magnificent, good flexibility fits various designs,

-easily maintenance, simply cleaning

Panel Thickness(mm)	2mm-8mm
Aluminium Skin Thickness(mm)	0.08mm-0.5mm
Width(mm)	1220mm-2000mm
Length(mm)	2440mm-8000mm

Applications:

Constructional exterior curtain walls;

Decorative renovation for storey-added old buildings;

Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;

Advertisement board, display platforms and signboards;

Wallboard and ceilings for tunnels;

Raw materials in industrial purpose;

Materials used for vehicle and boat.

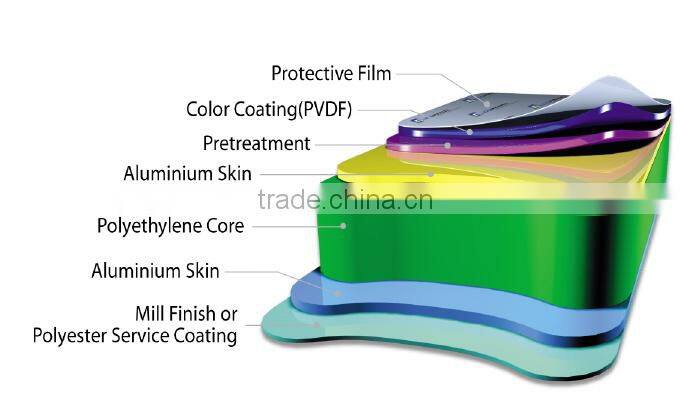

Aluminum Composite Panel (ACP) is made up of three layers, with two layers of aluminum skin on the top and bottom, and one layer of anti-toxic polyethylene material in the middle. Also, both of skin surfaces need to be coil-coated with special paint material like PVDF or PE resin under a specific temperature condition.

Strictly according to the international quality system ISO9001 and ISO14001 produce superior quality aluminum composite panels. Our aluminum composite panels passed GB/T1778-1999 ,SGS tests and gained CE certificate. Because of its excellent weather proof and other features, the panel becomes a very popular Cladding materials in the world.

Surface properties:

Paint Thickness(micron)	Anodize
Pencil Hardness	2H
Toughness Of Coating	2T
Temperature Resistance	-50⁰C+90⁰C
Impact Strength(kg/cm²)	50
Boiling Water Resistance	boiling for 2 hours,No change
Acid Resistance	Immerse surface in 2% HC1 for 24hours,No change
Alkali Resistance	Immerse surface in 2% NAOH for 24hours,No change
Oil Resistance	Immerse surface in 20# engine oil for 24hours,No change
Solvent Resistance	Cleaned 100 times with Dimethylbenzene,No change
Cleaning Resistance	>1000 times no change
Thermal Expansion	2.4mm/m @100⁰C Temp difference
Peel Strength	Average 131N.mm/mm
Bending Strength	>100MPA
Bending Elastic Modules	>2.0*104MPA
Heat Distortion Temperature	>95⁰C

Certificate:

Our ISO 9001:2008certified company houses 67 QC staff with 15 years experience that are allocated

to at least two QC staff per production line. To maintain a strict QC system, we not only utilize precision

testing instruments but we also continuously train our QA personnel regarding the latest testing principles.

Customer Show:

We had taken part exhibition hold in Sao Paulo, exhibition hold in Mexico, exhibition hold in Sao Paulo, Brazil, etc
