Specifications
Material: Samarium Cobalt magnet ringGrade: SmCo 1:5 and SmCo 2:17
ISO9001: 2008
SGS
1. Samarium Cobalt magnet
SmCo magnet is a rare earth metal samarium and cobalt-based strategy elements, with iron, copper, zirconium, praseodymium and other metal materials ratio of melting into the alloy, grinding, pressing, sintering and aging made of a magnetic materials with higher magnetic properties (high energy product, high coercivity, high remanence); very low temperature coefficient (-0.030% / °C), high temperature (maximum temperature is 350 °C), negative temperature limitation, the working temperature above 180 °C, the maximum energy product, temperature stability and chemical stability are more than NdFeB material; has a strong anti-corrosion and oxidation resistance.

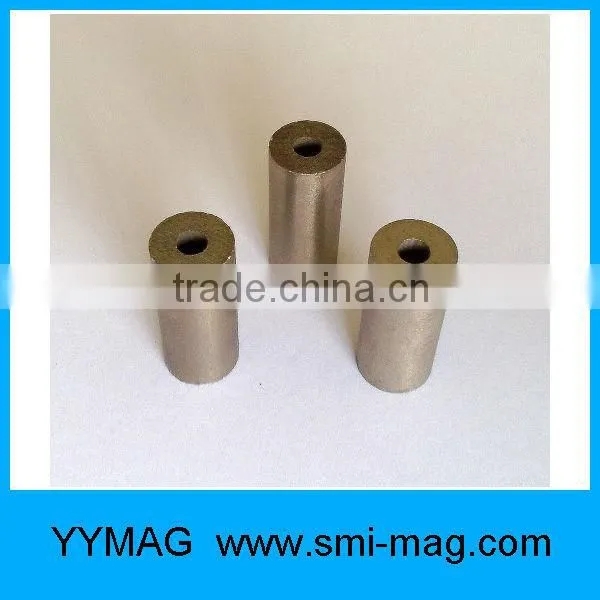

2.Shape of Samarium Cobalt Magnet: Disc, Ring, Block, Segment, Cylinder, Trapezoid, Customized Design(Design proper magnets for clients specific requirements)
3.Tolerance of Samarium Cobalt Magnet: +/-0.05mm for small dimensions, +/-0.1mm for common specifications, +/-0.15mm for big blocks
4. Applications of Samarium Cobalt Magnet: SmCo magnet is widely used in aerospace, defense industry, microwave devices, communications, medical equipment, instruments, wind power, a variety of magnetic drives, sensors, magnetic processor, high-end motor, etc.
5. Magnetic propertiesc of Samarium Cobalt Magnet:
6. Magnetic direction and Rang of Samarium Cobalt Magnet:
| Block | Length | Width | Thickness |
| Maximum | 180.00mm | 80.00mm | 50.00mm |
| Minimum | 1.00mm | 0.50mm | 0.50mm |
| Disc | Diameter | Thickness |
| Maximum | 100.00mm | 50.00mm |
| Minimum | 0.30mm | 0.50mm |
| Disc | Diameter | Thickness |
| Maximum | 50.00mm | 100.00mm |
| Minimum | 1.00mm | 1.00mm |
| Ring | Outer Diameter | Inner Diameter | Thickness |
| Maximum | 50.00mm | 30.00mm | 100.00mm |
| Minimum | 1.50mm | 1.00mm | 0.50mm |
| Ring | Outer Diameter | Inner Diameter | Thickness |
| Maximum | 100.00mm | 80.00mm | 50.00mm |
| Minimum | 1.00mm | 0.60mm | 0.50mm |
| Segment, Arc and other irregular shapes can be made according to customer's sample or drawing |
7. Packing of Samarium Cobalt Magnet
Shipping:
Shipping: Express (TNT, DHL, FedEx, UPS, etc), Air, Ocean.
a: The weight is under 40Kgs, we recommend to send them in shielding boxes to you by Express.
b: The weight is between 40Kgs-100Kgs, it can be sent by Express or Air.
c: The weight is over 100Kgs, we recommend to send them by Ocean.
Our Service:
a. Quick response: we commit to give you immediate detailed quotations with instructions and product material. And customize your required product in the shortest time.
b. High-quality products and favorable prices: we reduce material costs through purchase large quantitative of raw materials and other measures from manufacturers directly, which ensures good quality and favorable prices of our products, and we share our profit with customers.
c. Closed service: big or long-term cooperation customers can become our VIP customers and enjoy more competitive prices and VIP service.
Company information
Company Name: Hangzhou YangYi Magnetics Co., Ltd.
Establish: 2007
Location: Hangzhou City, Zhejiang Province, P.R.China.
Main products: Neodymium magnets, SmCo magnets, Alnico magnets, Mini magnets, Magnetic assemblies, magnetic filter, etc.
Quality certification: ISO9001:2008, SGS.
Market: American, Germany, Italy, UK, France, Japan, Korea, Iran, Israel, home market, etc.
FAQ
1: What is normal dimension of your products?
All magnets are customized.
2. What information do I need to supply when I have a inquiry?
If you have any inquiry, please kindly advise the following items:
a. Dimensions or drawing with tolerances.
b. Material grade or magnetic properties.
c. Magnetic direction.
d. Surface coating (if necessary).
e. Quantity and delivery terms.
3.How long will you give me the reply?
We will reply you in 24 hours.
4. How is the price?
As we believe the quality is the most important, we will provide the high quality magnet with reasonable price.
5:Could I get samples?
Yes, we have materials in stock to help you to get the samples as soon as we can.
6:How long will you deliver sample and bulk order?
If we have materials in our stock, we can send them within 3 days. If we don’t have material in stock, production time for sample is 5-10 days, 15-25 days for bulk order.
7. How to pay you?
T/T, Western Union, L/C, ESCROW.
We will try our best to satisfy you.
