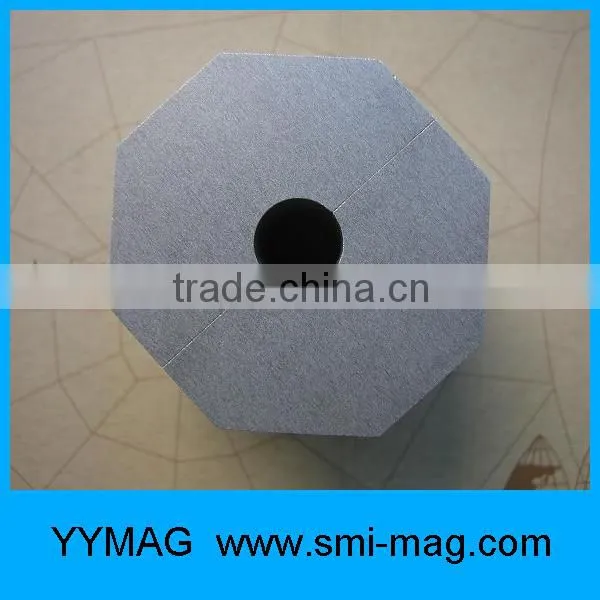

Hollow Regular Octagon SmCo permanent magnet
Characteristics of SmCo magnet
1.Very high magnetic properties with good stability.
2.Superior resistance to high temperature, Curie temperature of majority is over 800°C.
3.Excellent corrosion resistance capability, no coating is needed for surface protection.
SmCo magnet is a type of magnetic material made from rare earth metal samarium and strategic metal cobalt-main elements, with iron, copper, zirconium and praseodymium, and produced by a serial of process melting, milling, pressing, sintering and aging. It has high magnetic properties (high energy product, high coercivity, high remanence), very low temperature coefficient (-0.030% / °C), high working temperature (Maximum working temperature reaches 350°C), no negative temperature limitation, and excellent corrosion resistance. At working temperature above180°C, its maximum energy product, temperature stability and chemical stability are better than NdFeB material.
Therefore,According to the different components of the SmCo5 and Sm2Co17, respectively, they are the first generation and the two generation rare earth permanent magnetic material. Because of its raw materials are scarce, the price is expensive and limit the development. Samarium cobalt (SmCo) as the second generation rare earth permanent magnet, not only has a high magnetic energy product (14-28MGOe) and reliable coercivity, and exhibits excellent temperature characteristics in rare earth permanent magnet series. Compared with the NdFeB, SmCo is more suitable for working in high temperature environment
1.Coating of SmCo magnet
Excellent resistance to corrosion, no coating is needed for the surface protecting.
2.Specification
SmCo Other Physical Properties | ||
|
SmCo5 |
Sm2Co17 |
Temperature Coefficent of Br(%/°C) |
-0.05 |
-0.03 |
Temperature Coefficent of iHc(%/°C) |
-0.3 |
-0.2 |
Curie Temperature(°C) |
700-750 |
800-850 |
Density(g/cm3) |
8.2-8.4 |
8.3-8.5 |
Vickers Hardness(HV) |
450-500 |
500-600 |
Working Temperature(°C) |
250 |
350 |
3.Applications
SmCo magnet is widely used in aerospace, defense industry, microwave devices, communications, medical equipments, instruments, wind power, a variety of magnetic drives, sensors, magnetic processors, high-end motors, etc.
4.Shape: Octagon,or Disc, Cylinder, Block, Ring, Countersunk, Segment, Trapezoid, Irregular shapes and more.
Customized Design (Design proper magnets for clients specific requirements)
- Packaging
a. Plastic separation will be put between strong and big pot magnets, then customer could be easily separate.
b. Batch magnets will be put in small white box.
c. 8 white boxes will be put in carton size 34x26x20cm.Foam form will be put between white boxes to avoid broken during shipment.
d.If by express or by air shipment,put iron sheet between foam form and external carton to shield the magnetic field.
e. More than 10 cartons will be packed to pallet, specially for shipment by sea.
- Shipping
We will offer best solution after considering your details condition.
(1)Express:We cooperate with courier company such as DHL,TNT,Fedex for many years,and signed agreement with them to get big discount from them. For order below 45kgs,we usually suggest customer choose courier delivery door to door.
(2)Air shippment is suitable for order more than 45kgs.
(3)Sea shippment is suitable for goods more than 100 kgs.
- Payment
- About us
| Company name | Hangzhou YangYi magnetics Co., Ltd |
| Year of establishment | 2007 |
| Location | Hangzhou City, Zhejiang Province, P.R. China |
| Main products | Neodymium magnets, SmCo magnets, Alnico magnets, Mini magnets, Magnetic filters, pot magnets, magnetic assemblies, etc |
| Quality certification | ISO9008:2008, SGS |
| Our Market | America, Germany, Italy, UK, France, Japan, Korea, Iran, Israel, Domestic market, etc |
- Our Factory View

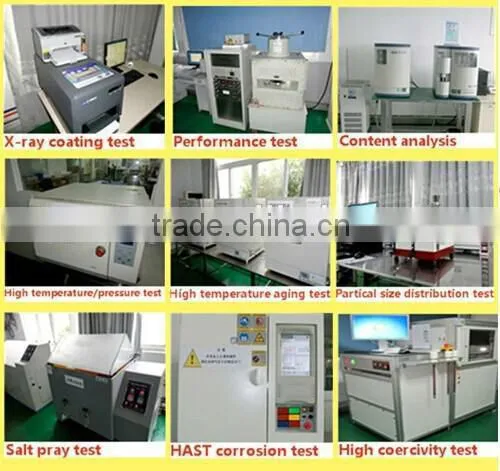

- Our Quality Control
- Guide
In order to quote you the best price timely,please kindly provide us with the following information in your inquiry:
1. Product details: shape&size, tolerance, grade;
2. Order quantity;
3. Attached drawing if customized;
4. Any special packing,delivering or other requirements;
If you are not sure about any specifics of the product you need,please feel free to let us know and we are more than happy to help you.
1.Professional manufacturer with many years' experience, we could produce the magnets according to customer's reuqest and supply our technical supports.
2.Superior Quality:Highly professional working team, high quality raw materials with 100% guarantee, and excellent consistency.
3.Competitive price with superior quality.
4.Quick response: We commit to give you immediate detailed quotations with instructions and product details. And customize your required product in the shortest time.
5.Various transportation:Railways, shipping, airplane and quick mails (UPS, DHL, TNT, FEDEX... )
1. What is normal dimension of your products?
All magnets are customized.
2. What information do I need to supply when I have a inquiry?
If you have any inquiry, please kindly advise the following items:
a. Dimensions or drawing with tolerances.
b. Material grade or magnetic properties.
c. Magnetic direction.
d. Surface coating (If necessary).
e. Quantity and delivery terms.
3. How long will you give me the reply?
We will reply you in 24 hours.
4. How is the price?
As we believe the quality is the most important, we will provide the high quality magnet with reasonable price.
5. Could I get samples?
Yes, we have materials in stock to help you to get the samples as soon as we can.
6. How long will you deliver sample and bulk order?
If we have materials in our stock, we can send them within 3 days. If we don’t have material in stock, production time for sample is 5-10 days, 15-25 days for bulk order.
7. How to pay you?
T/T, Western Union, L/C, ESCROW.
