Home > Products > Neodymium magnet > rings magnet neodymium magnet
rings magnet neodymium magnet
- 1000000 Piece / Pieces per Month
- Ningbo/Shanghai
- Credit Card
- POTF08-48 Powerful Magnetic Hook
- Magnets for consumer electronics, medical devices, industry, and technology
- Circular magnet, square magnet, irregular magnet, perforated magnet
- Jewelry magnet gift magnet motor magnet health magnet non-standard customization
- Earphone magnets, luggage magnets, stationery magnets, toy magnets, customized magnets
- Wireless charging magnet, receiving end magnet, transmitting end magnet
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | YYMAG | Model Number: | YY -NEO |
Type: | Permanent | Composite: | NdFeB Magnet | Shape: | Other, Ring |
Application: | Industrial Magnet |
Product Description

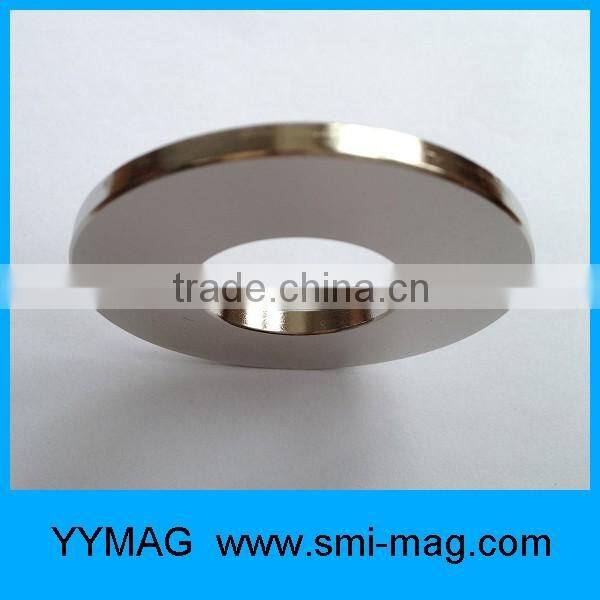

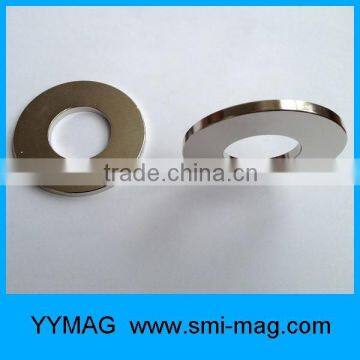

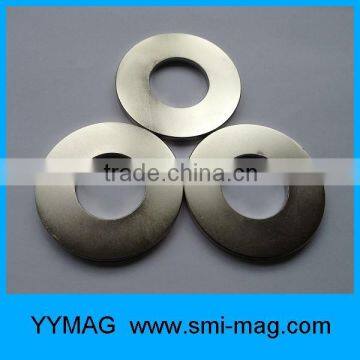

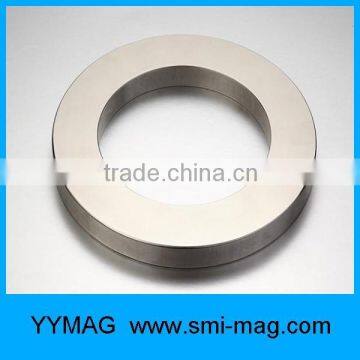

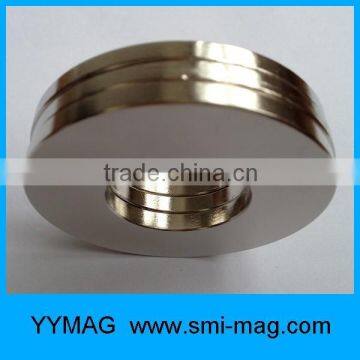

rings magnet neodymium magnet
Physical Properties of Permanent Neodymium Magnet:

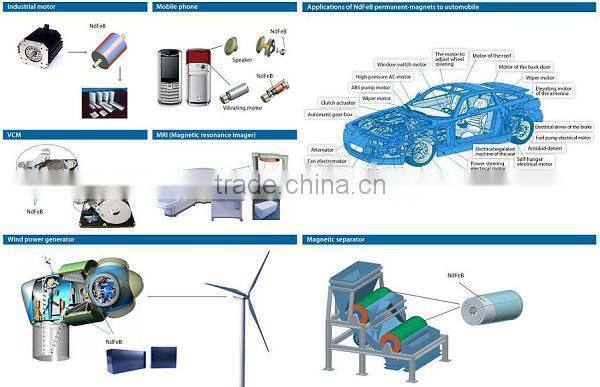

a) Industrial use of NdfeB magnets was widely for voice coil motors,high performance motors, brushless DC motors, magnetic separation, magnetic resonance imaging, sensors and loudspeakers,etc.
b)NdFeB magnets have a moderately high Reversible Temperature Coefficient of Induction which reduces total magnetic output as temperature rises. Selection of NdFeB magnets instead of SmCo, for example, is a function of the maximum temperature of the application, required magnetic output at typical use temperature and total cost of the system.
c)NdFeB magnets have some limitations due to their corrosion behavior. In humid applications, a protective plating is highly recommended. Platings which have been used successfully include, parylene,epoxy resin,zinc plating, gold plating, Ag plating,nickel plating and combinations of these platings. Changes in composition and processing over the past several years have resulted in significant improvements in corrosion resistance and high temperature performance.

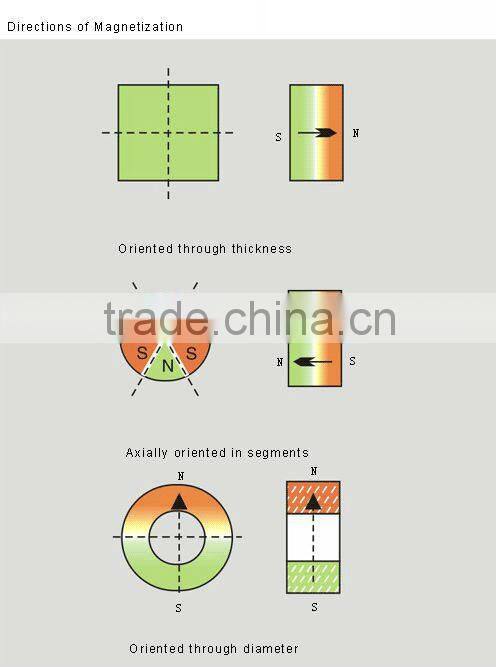

Magnetic direction of Permanent Neodymium Magnet:
Range of Permanent Neodymium magnet:
Disc | Diameter | Thickness |
Maximum | 220.00mm | 50.00mm |
Minimum | 0.30mm | 0.50mm |
Block | Length | Width | Thickness |
Maximum | 50.00mm | 150.00mm | 50.00mm |
Minimum | 1.00mm | 0.50mm | 0.50mm |
Ring | Outer Diameter | Inner Diameter | Thickness |
Maximum | 220.00mm | 80.00mm | 50.00mm |
Minimum | 1.00mm | 0.60mm | 0.50mm |
Segment, Arc and other irregular shapes can be made according to customer's sample or drawing |
1. By Sea-freight: Magnets would be covered by standard carton box,inside filled with iron shield.If GW is over 500KGS,pallet is required.Shipment schedule would be arranged as soon as possible.
2. By Air-freight: Magnets could be packed by carton box.In addition,magnetism would be shielded through air-freight.
*Payment:
For small amount, our usual way of payment is 100% T/T in advance, Western Union or Paypal.
For large amount, we also could accept 30% prepayment before production, 70% after fax of Bill of loading.
*Delivery time:
We can provide scheduled shipments to fit your production schedule.
Company name: Hangzhou YangYi magnetics Co., Ltd.
Year of establishment:2007
Location:Hangzhou City, Zhejiang Province, P.R. China.
Main products:Neodymium magnets, SmCo magnets, Alnico magnets, Mini magnets, Magnetic filters, pot magnets, magnetic assemblies, etc.
Quality certification:ISO9008:2008, SGS.
Market:America, Germany, Italy, UK, France, Japan, Korea, Iran, Israel, Domestic market, etc.
Quality control:
1. What is common dimension of your products?
Sizes,shapes,composition are all available to customized.
2. What information do I need to submit as I have a inquiry?
The following items are required:
a. Dimensions or blueprint with tolerances.
b. Composite grade or magnetism properties.
c. Magnetism direction.
d. Surface treatment (if necessary).
e. Quantity and delivery terms.
3.How long would feedback be?
As soon as we can,usualy reply you in 24 hours.
4. What is the common price of your rare earth magnet?
According to cost of raw materials and manufacturering process,we constantly offer quality magnets with reasonable price.
5.Could I get samples?
Samples are available.
6.How long would sample and bulk order arrive at?
If materials in our stock, we can release them within 3 days. If materials not available in stock, production time for sample would be 5-10 days, 15-25 days for bulk order indeed.
7. What is the usual payment method for your items?
T/T, Western Union, Secure payment, Paypal.
