Road Roller, Vibratory Road Roller
1. Description of road roller
It is used to compress on the asphalt,sand soil and gravel. The machine adopts the fully closed hydraulic driving mechanism, and the high-quality and high-efficiency engine.
2. Parameter of road roller
YL-600 Series
Model |
YL-600 |
YL-D600 |
YL-600C |
Walk Speed |
0-3km/h |
0-4km/h |
0-3km/h |
Gradeability |
30% |
30% |
30% |
Drive Type |
Hydraulic Station |
Hydrostatic Drive |
Hydraulic Station |
Vibration Control |
Automatic clutch |
Automatic clutch |
Automatic clutch |
Static Linear Load |
40N/cm |
45N/cm |
40N/cm |
Nominal Amplitude |
0.6mm |
0.6mm |
0.6mm |
Vibration Frequency |
70Hz |
70Hz |
70Hz |
Exciting Force |
15KN |
15KN |
15KN |
Water Tank |
17L |
18L |
17L |
Hydraulic Oil Tank |
19L |
0.3L |
19L |
Engine Model |
HONDA GX160 |
HONDA GX160 |
CF170F |
Power |
5.5HP |
5.5HP |
5.0HP |
Steel wheel size |
∅ 425*600mm |
∅ 425*600mm |
∅ 425*600mm |
Packing Size |
1100*1000*1200mm |
1100*1000*1200mm |
1100*1000*1200mm |
Net Weight |
325kg |
285kg |
325kg |
Starting Mode |
Hand |
Hand |
Hand and Electric |
YL-S600 Series:
Model |
YL-S600 |
YL-S600C |
YL-S600CS |
YLJ-S600C |
Walk Speed |
0-4km/h |
0-4km/h |
0-4km/h |
0-4km/h |
Gradeability |
30% |
30% |
30% |
30% |
Drive Type |
Hydraulic Station |
Hydraulic Station |
Hydraulic Station |
Hydrostatic Drive |
Vibration Control |
Automatic Clutch |
Automatic Clutch Electromagnetic Clutch |
Automatic/Electro Clutch |
Electromagnetic Clutch |
Static Linear Load |
53N/cm |
53N/cm |
53N/cm |
40N/cm |
Nominal Amplitude |
0.5mm |
0.5mm |
0.5mm |
0.7mm |
Vibration Frequency |
70Hz |
70Hz |
70Hz |
70Hz |
Exciting Force |
20KN |
20KN |
20KN |
20KN |
Water Tank |
20L |
20L |
20L |
50L |
Hydraulic Oil Tank |
21L |
21L |
21L |
0.3L |
Engine Model |
HONDA GX270 |
CF178F |
CD180 |
CF178F/CF186F |
Power |
9.0HP |
6.0HP |
7.0HP/3600rpm |
6.0HP/9.0HP |
Steel Wheel Size |
∅425×600mm×2 |
∅425×600mm×2 |
∅425×600mm×2 |
∅425×600mm×2 |
Package Size |
1450×1100×1200mm |
1450×1100×1200mm |
1450×1100×1200mm |
1450×900×1920mm |
Net Weight |
550kg |
550kg |
600kg |
550kg |
Starting Mode |
Hand |
Hand and Electric |
Hand and Electric |
Hand and Electric |

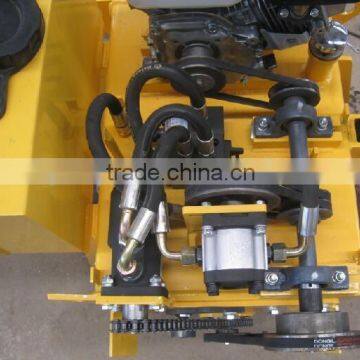

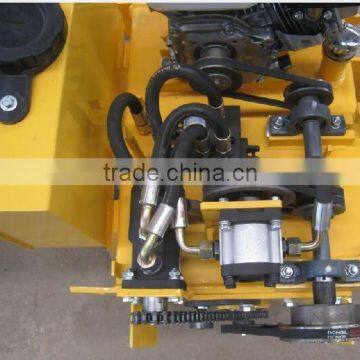

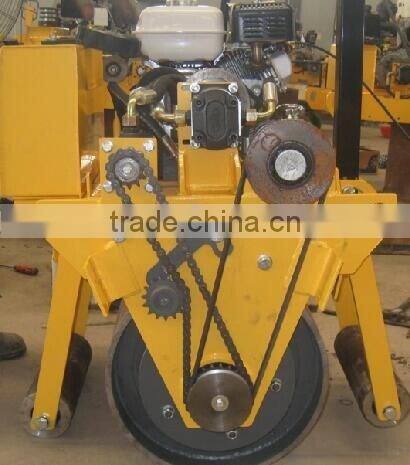

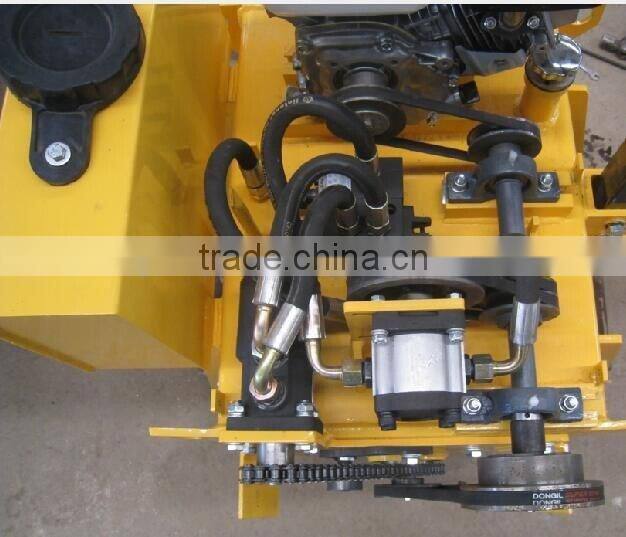

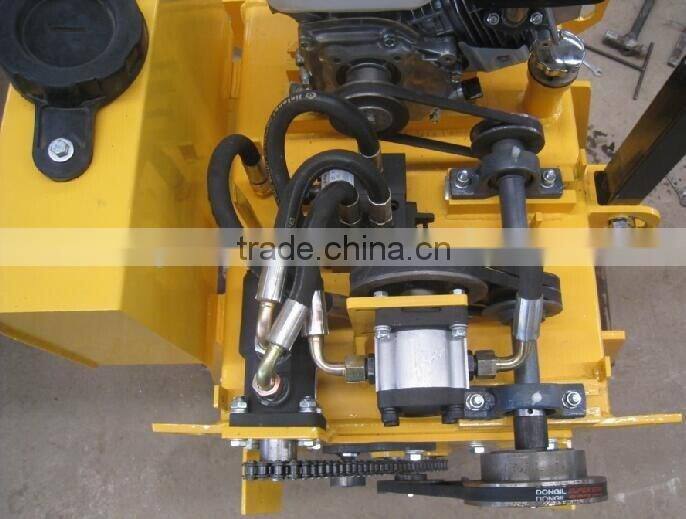

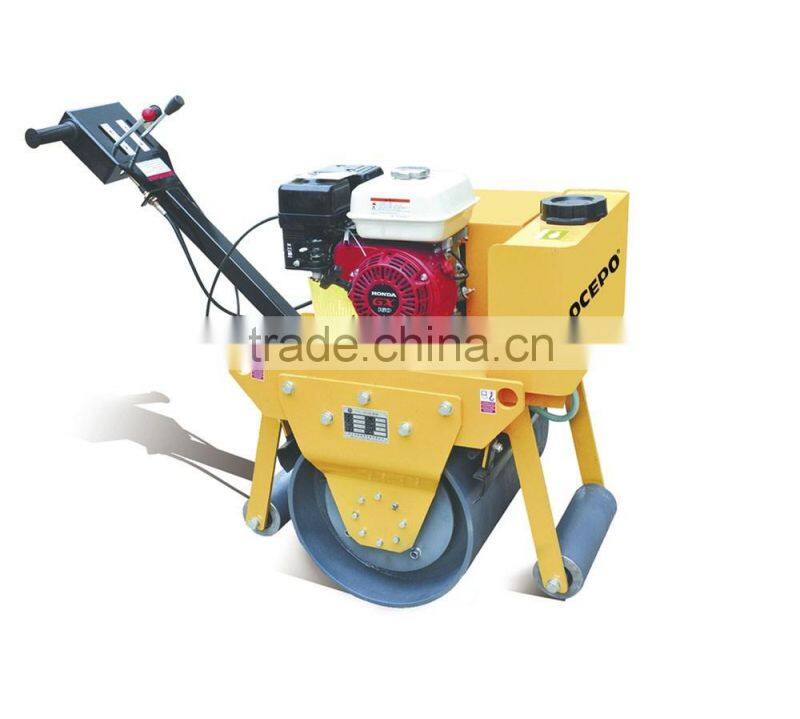

3. Photo of road roller

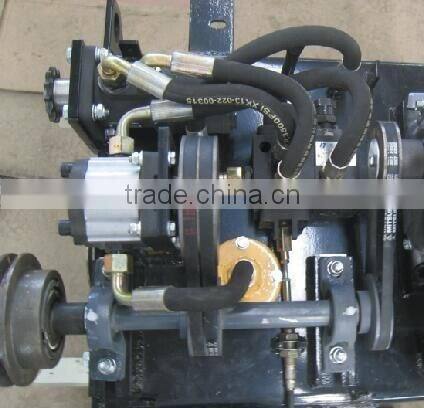

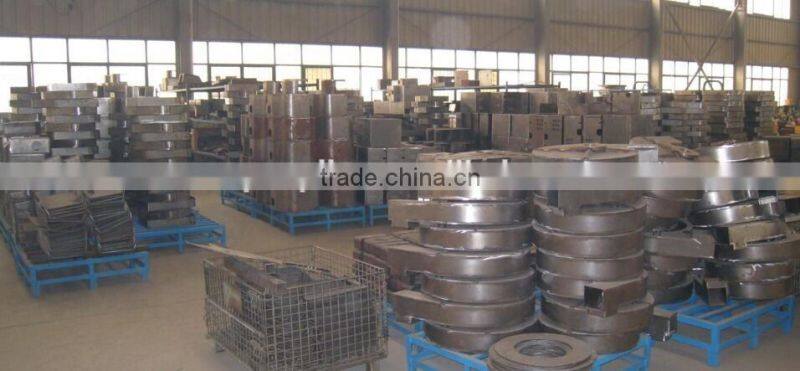

4. Spare parts of road roller

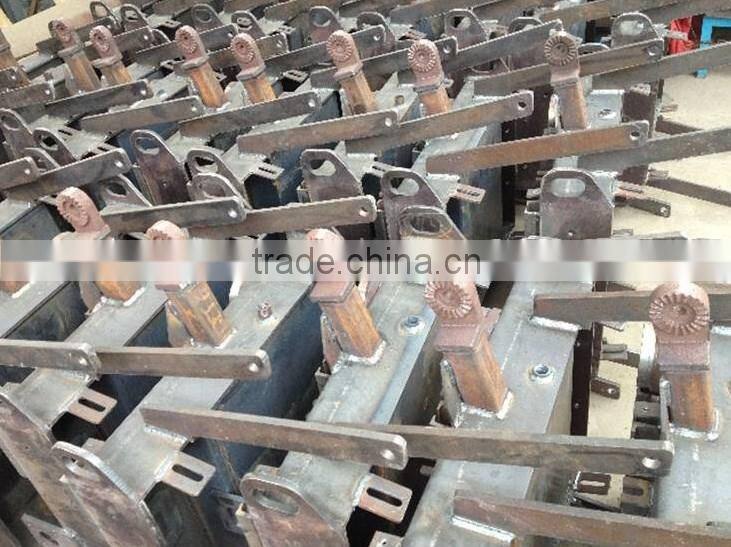

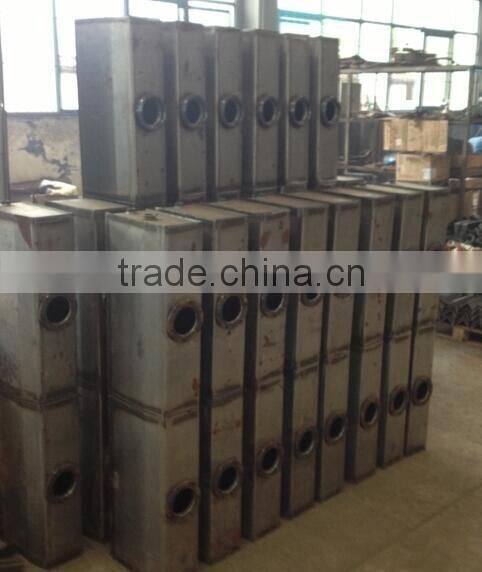

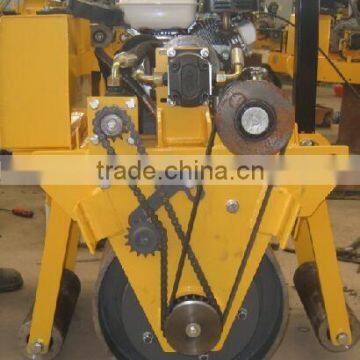

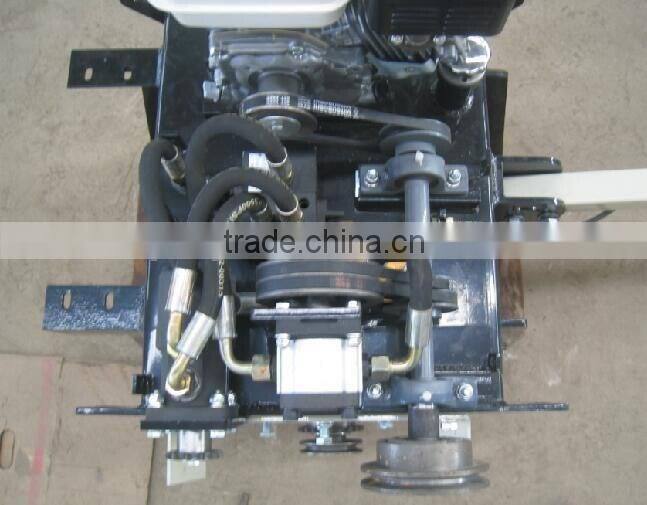

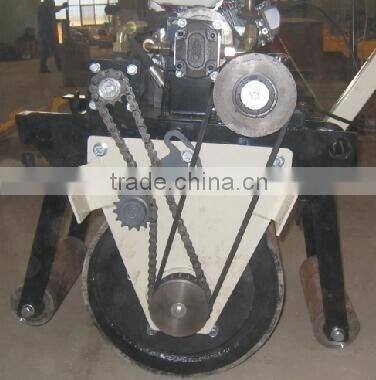

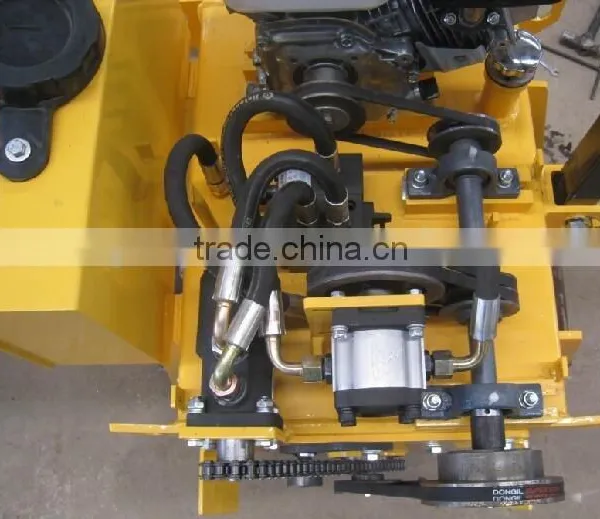

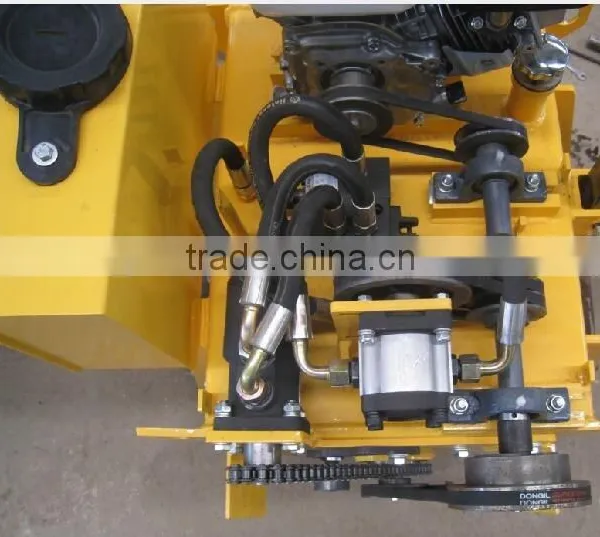

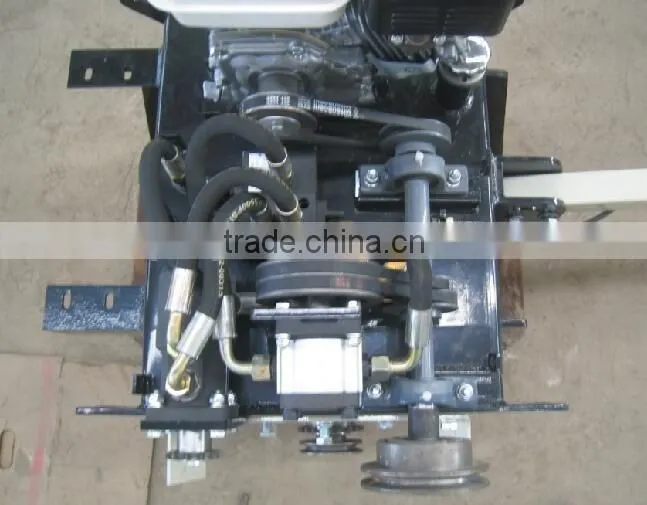

5. Semifinished machine of road roller
6. Our services of road roller:
We have done export more than 18 years, and will try our best to supply the best service.
7. FAQ of road roller:
1) What standard the machine has passed?
CE, ISO
2) What is the warranty?
It is 1 year after clients get the machine. But we will supply the best service forever.
3) What is the package?
It is plywood case.
4) Why the price is higher than some factories?
Because we purchase best raw material from big factories, and employ professional engineers to design, and professional workers to manufacture to ensure its best quality.
5) If meet any problem during the use, how to deal with it?
We will let our professional engineers to check your problem, if it is our problem before delivery, we will compensate it for free. If problem caused by your workers, we will help them to solve it until the machine could work normally.
