Pinch Roll is the horizontal cantilener structure. It has double roll device and one air cylinder which is used to contral roll

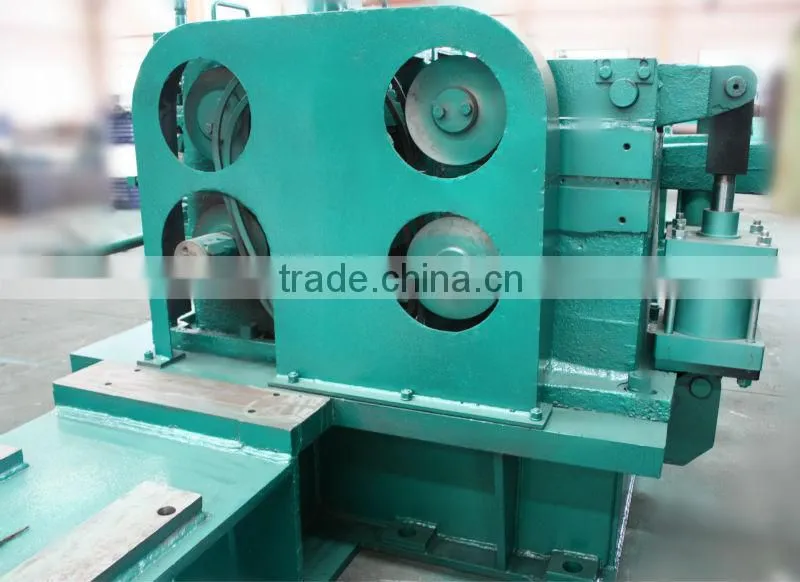

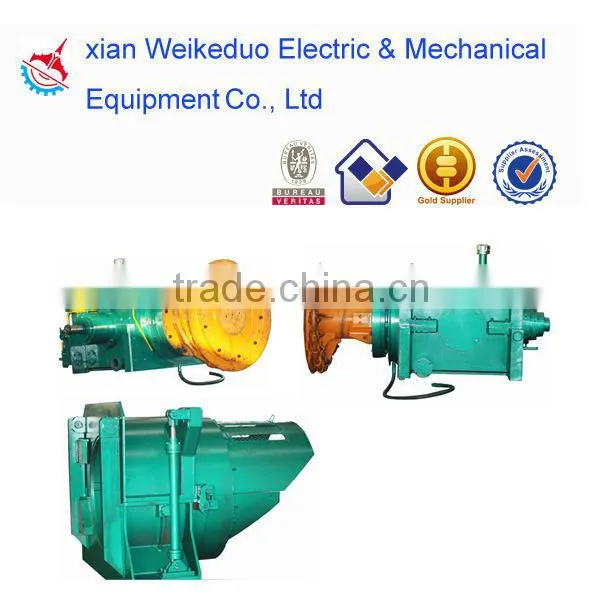

HangJi Brand pinch roll & laying head /wire discharger
1. Equipment Application
The pinch roll and laying head are arranged after water cooling plant of finishing roll.The pinch roll is the device for steel line rolling production which mainly used for gripping rolled piece feeding into the wire discharger .Wire discharger for transportation of heliciform gripping rolled piece which diameter is 1080mm tothe scattered coils cooling roll table before coil collector station.
2. Construction features of pinch roll & laying head /wire discharger
Pinch roll and wire discharger are closely adjacent semi-open system.Pinch roll is arranged before entrance of wire discharger and transportation of gripping rolled piece into wire discharger.Then wire discharger will transform the gripping rolled piece to heliciform rolled piece which diameter is 1080mm and flat the rolled out to th the scattered coils cooling roll table.
3. Equipment characteristic
1).Pinch roll
- Feeding specification: Æ5.5~14mm
- Feeding rate: 25~75m/s
- Pinch roll specification: Æ158.8/Æ142.9´62mm
- Max gripping force: 350N
- Maximum line velocity: 80m/s
- Speed increasing ratio: 6.92
- Motor: DC Z4-180-41
- Motor power: 55kW
- Motor speed: 1500/3000 r/min
2). laying head /Wire discharger:
- Type: Horizontal type laying head /wire discharger
- Wire diameter:Æ5.5~14mm
- Circle diameter:Æ1080mm
- Maximum spinning speed:90m/s
- Sped increasing ratio: 1.289
- Motor: DCZ4-250-41
- Motor power:110kW
- Motor speed:750/1500 r/min
3).Rolling lubricating system: Thin oil central lubrication
- Oil pressure: 0.35MPa
- Total consumption:100r/min
- Oils: Mobil 525
- Cleanliness:10m
4).Pinch roll’s cooling water:
- Water pressure:0.6Mpa(turbid circulating water)
- Consumption:2m3/h
5).Spinning head’s cooling water:
- Water pressure:0.2~0.4MPa(clean circulating water)
- Consumption:5m3/h
What we provide:
1. Perfect rolling mill solutions including rolling passes design, production line setup,
and workshop layout according to customer's requirements.
2. Sophisticated rolling mill stands and auxiliary equipments/spare parts used in the rolling
mill production line.
3. Technical services and post-sale technical supports.
4. Professional engineers available for overseas installation and maintenance.
Xian Weikeduo Electrical & Mechanical Equipments Co., Ltd. is a company specialized in the manufacturing of high speed wire rod rolling mills, high speed deformed rebar rolling mills, roughing rolling mills, intermediate rolling mills, pre-finishing rolling mills and finishing rolling mills, short-stress-path rolling mill, roller box, gearbox reduction, coil laying head, vertical and horizontal loopers, flying shears, chopping shears and gripping shears, pinch roll machine and spare parts required in rolling mill production line.
Xian Weikeduo Electric & Mechanical Equipments Co., Ltd registered the brand name "HangJi" in 2008, since then, HangJi brand rolling mill stands have been exported to Nigeria, Thailand, Indonesia, Vietnam and Myanmar, the company has been certified by ISO9001:2000 and BV.
