Yueqing SaoPaulo Co.,ltd specialized production and sales UK series ,SAK (JXB) series,IN series of terminal blocks, TB series of terminal blocks, TC series large current terminals, TD series connection terminal, X3 plastic terminal block etc all kinds of electrical accessories. High quality, low price! Welcome the customer calls consultations, negotiations business, we are looking forward to cooperating with you!
TB terminal bloc Molded from UL94-V2 material with excellent flame- and shock-resistance
-Volage 600V,Current:15A,25A,25A,35A,45A,60A,100A
-Secure fixed design from 3P, 4P, 5P,6P, 8P,10P,12P,15P,20P
-Panel mounting or free floating.
-Mounting holes are furnished at each end of the block.
- Marking paper strips and protective covers are available.
Excellent for switchboard panel, control consoles, transformers, air conditioners, power distribution and similar applications

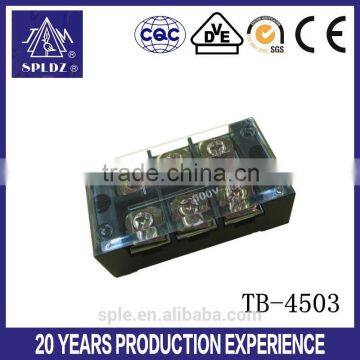

TB screw terminal block
| Product specification | current (A) | Pole Number | Mounting size (mm) | Length/Breadth/Height (mm) | Crimping terminal |
| TB-1503 | 15 | 3 | 36 | 47/22/15.5 | M3 |
| TB-1504 | 15 | 4 | 45 | 56/22/15.5 | M3 |
| TB-1505 | 15 | 5 | 54 | 65/22/15.5 | M3 |
| TB-1506 | 15 | 6 | 63 | 74/22/15.5 | M3 |
| TB-1510 | 15 | 10 | 99 | 110/22/15.5 | M3 |
| TB-1512 | 15 | 12 | 153 | 164/22/15.5 | M3 |
| TB-2503 | 25 | 3 | 45 | 56/30/17 | M4 |
| TB-2504 | 25 | 4 | 57 | 68/30/17 | M4 |
| TB-2505 | 25 | 5 | 69 | 80/30/17 | M4 |
| TB-2506 | 25 | 6 | 81 | 92/30/17 | M4 |
| TB-2510 | 25 | 10 | 99 | 110/22/15.5 | M4 |
| TB-2512 | 25 | 12 | 117 | 128/22/15.5 | M4 |
| TB-4503 | 45 | 3 | 58,5 | 89.5/68/21 | M5 |
| TB-4504 | 45 | 4 | 75 | 86/38/21 | M5 |
| TB-4505 | 45 | 5 | 91.5 | 102.5/38/21 | M5 |
| TB-4506 | 45 | 6 | 108 | 119/38/21 | M5 |
| TB-4510 | 45 | 10 | 174 | 185/38/21 | M5 |
| TB-4512 | 45 | 12 | 207 | 218/38/21 | M5 |
| TC-603 | 60 | 3 | 60.5 | 84.5/54.5/31.5 | M6 |
| TC-604 | 60 | 4 | 82.5 | 113/54.5/31.5 | M6 |
| TC-605 | 60 | 5 | 118 | 129/54.5/31.5 | M6 |
| TBC-1003 | 100 | 2 | 75.5 | 86.5/43.5/35 | M6 |
| TBC-1004 | 100 | 4 | 96 | 108/43.5/35 | M6 |
| TBC-1006 | 100 | 6 | 140 | 153/43.5/35 | M6 |
1.How can I contact you?
You can contact us by Trademanager cnsple and send email to Jimmy @sple.cn,We will quote within 12 hours after we get your inquiry.
2 Can I get some samples?
Yes, sample order is available for quality check and market test, and it will be freight collect payment.If simple sample , we will not charge cost; If OEM/ODM samples, we will charge for the sample cost.
3. What’s your payment term?
We usually accept T/T before ship as the main payment term, and other payment can also be negotiated.
4.Do you have the products in stock?
Not all,some products will be newly produced according to your order.
5.What about the lead time for mass production?
It's about 10-30 days after the deposit.
6.What is your main products?
Our main products including power switch,rocker switch,tact switch,push switch,rca jack connector,terminal block
7.Do you received OEM/ODM?
YES.We have more than 10years OEM experience.
8.If you can't find the products from our web, pls send us an inquiry to us,even if we can't make ,we know china market very well ,and can help you to find the same product with good quality and low price.
Different quantity have differnt packing size
