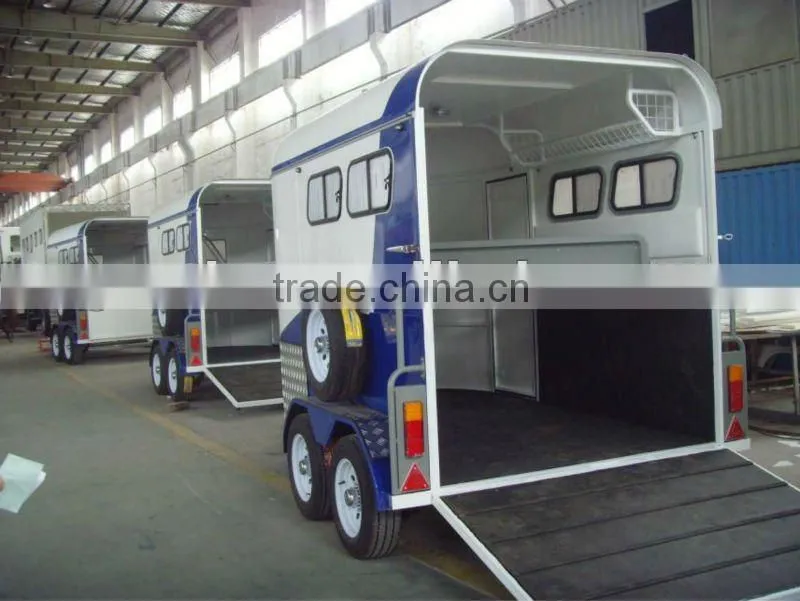

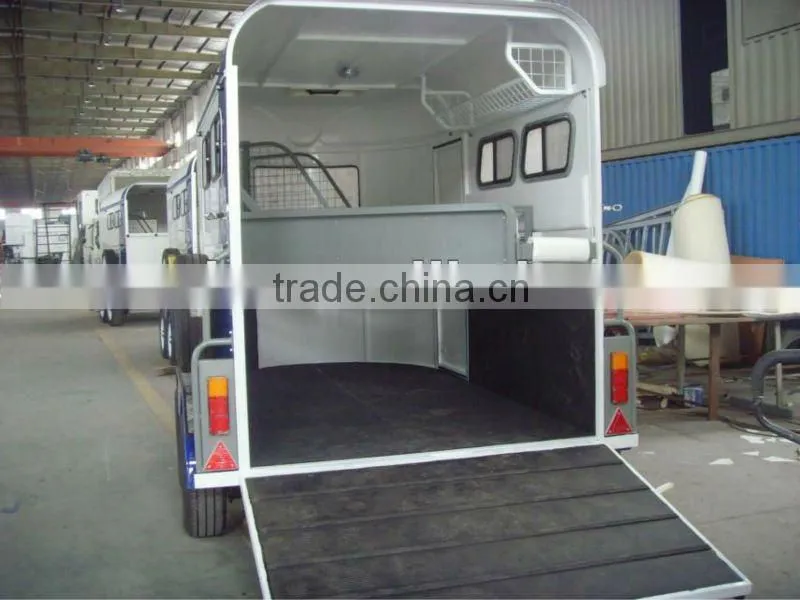

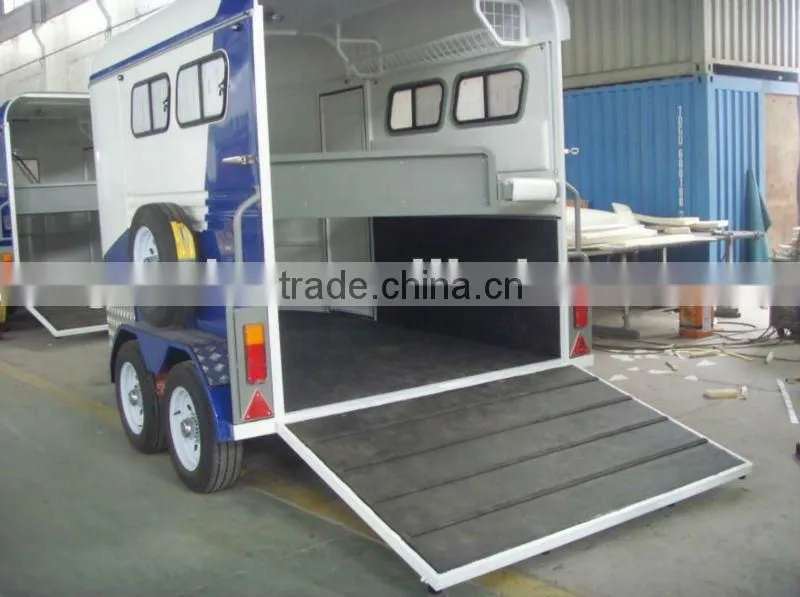

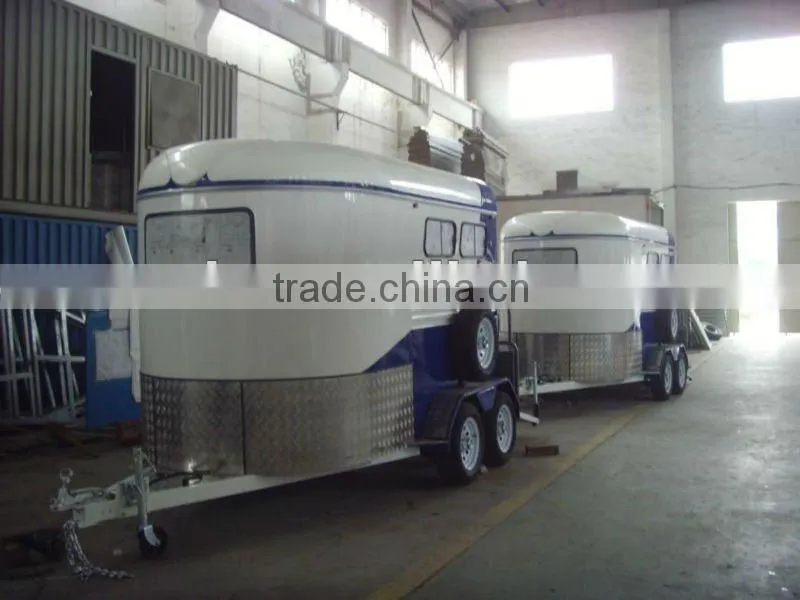

Horse Trailer 2 Horse Angle Load With Pop Up Door

Horse Trailer 2 Horse Angle Load With Pop Up Door photo-1
US$ 1 - 10 MOQ: 3 Pieces
Key Specifications
Get Latest Price
OEM No.:
2HAL
Max Payload:
1000KGS
Size:
2horse
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
OEM No. 2HAL
Max Payload 1000KGS
Size 2horse
Place of Origin Shanghai, China
Brand Name GW
Model Number GW-2HAL

Specifications

Horse Trailer 2 Horse Angle Load With Pop Up Door
Pop up door
Side luggage shelf
Moulded one pc new rubber matting

Horse Trailer 2 Horse Angle Load With Pop Up Door     Horse Trailer 2 Horse Angle Load With Pop Up Door

Horse Trailer 2 Horse Angle Load With Pop Up Door



 Horse Trailer 2 Horse Angle Load With Pop Up DoorHorse Trailer 2 Horse Angle Load With Pop Up DoorHorse Trailer 2 Horse Angle Load With Pop Up DoorHorse Trailer 2 Horse Angle Load With Pop Up Door







Over Dimension (LxWxH:mm):4795x2290x2662
External Dimension  (LxWxH:mm):3400x1830x2190
Inner Dimension (LxWxH:mm):3320x1780x2120
Horse bay (LxW:mm):2050x700
Trailer Weight 1240KGS
Max Payload 1000 KGS
Body frame  Galvanised body frame and hot dipped galvanised chassis,  galvanised sheet panels
Roof  3-4mm thickness fiberglass
Side wall  6mm thickness rubber matting
Floor  18mm thickness rubber matting,rear ramp door with moulded one pc new rubber matting
Chain  Safety chain D-ring, welded chain
Coupler Φ=50mm load 3500kgs
Brake Electric drum brake in one axle with hand brake system
Break away switch with 12V battery
Suspension  6 leaf spring
Axle  2pcs, 840mm length
Axle distance  840mm
Light  LED light, rear lights 2pcs,   internal Roof light 1pc
Outer view width lights 2pcs,   licence board light 1pc
Plug  7 pin plug round or flat
Wheels & Tires 5pcs 195/70R 15C, 14X5J,     including a spare tire
Spare wheel Bracket  1pc
Alu decoration  1.5mm Alu decoration on front and on wheel
Button bar  Galvanised and powder coated button bar with soft pads,   its tube 40x40x2mm
Hook  Galvanised hook for tighting the horse    (inside 2pcs, outside 2pcs)
Vent  Roof vent with five opening ways
Front window  Mould alu alloy front window (950x500mm)
Side window  Mould alu alloy side window 4pcs (300x600mm)
Rear ramp door  Rear ramp door with spring support:1600x1220mm
Side door  1650x600mm
Option  Pop up door
Barn door
Break away switch with 12v battery
Luggage shelf
Front tack box
Swing out tool box
Alloy wheel
Folded Awning
Gas strut for rear door
Extension size available
