Home > Products > AV pin Jack > 4 hole av concentric socket AV4-8.4-15

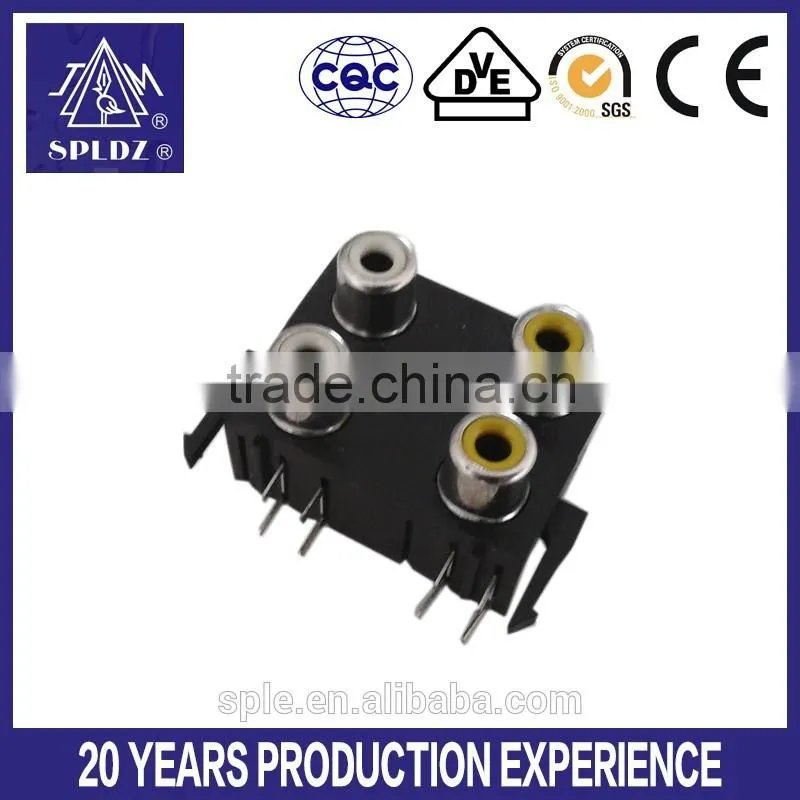

4 hole av concentric socket AV4-8.4-15
- 100000 Piece / Pieces per Month
- FOBshanghai/shenzhen
- Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | SPL | Model Number: | AV4-8.4-15 |
Type: | RCA | Application: | Other, Audio & Video | Gender: | Female |
Product Description
Yueqing Sao Paulo Electronics Co., Ltd. (formerly Yueqing the anchor Electronic Industry Co. Ltd.) was established in 1984. The Company registered trademarks for the "Golden Spear", "SPL Sao Paulo" licensing, professional production: the power switch, touch switches, power outlets, interface, connectors, audio and video input and output sockets and other products, specializing in the production of the plot 20 years essence, a large-scale production base. Products are widely used in imaging, audio communications, computers, multimedia, video, air conditioning, refrigeration and other electronics, electrical equipment.
1.Technial data
Temperature Range | -40-70oC |
Rated Load | DC 50V 0.2A |
Contact Resistance | ≤30mΩ |
Insulating resistance | ≥100mΩ |
Endurance | AC 500V(50Hz)1min) |
Actuating force | 5-30N |
Life | 5000 times |

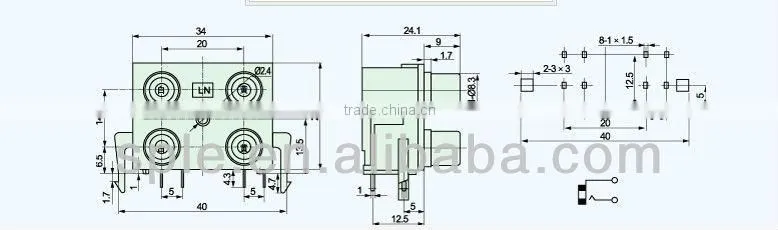

2.Drawing
1.How can I contact you?
You can contact us by Trademanager cnsple and send email to Jimmy @sple.cn,We will quote within 12 hours after we get your inquiry.
2 Can I get some samples?
Yes, sample order is available for quality check and market test, and it will be freight collect payment.If simple sample , we will not charge cost; If OEM/ODM samples, we will charge for the sample cost.
3. What’s your payment term?
We usually accept T/T before ship as the main payment term, and other payment can also be negotiated.
4.Do you have the products in stock?
Not all,some products will be newly produced according to your order.
5.What about the lead time for mass production?
It's about 10-30 days after the deposit.
6.What is your main products?
Our main products including power switch,rocker switch,tact switch,push switch,rca jack connector,terminal block
7.Do you received OEM/ODM?
YES.We have more than 10years OEM experience.
8.If you can't find the products from our web, pls send us an inquiry to us,even if we can't make ,we know china market very well ,and can help you to find the same product with good quality and low price.
