MT126
Smart Intercom Systems for Fuel/CNG/LNG Dispensers/Stations

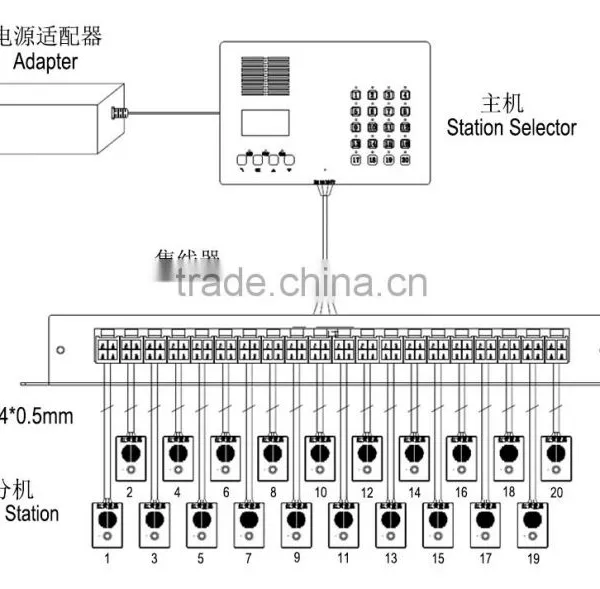

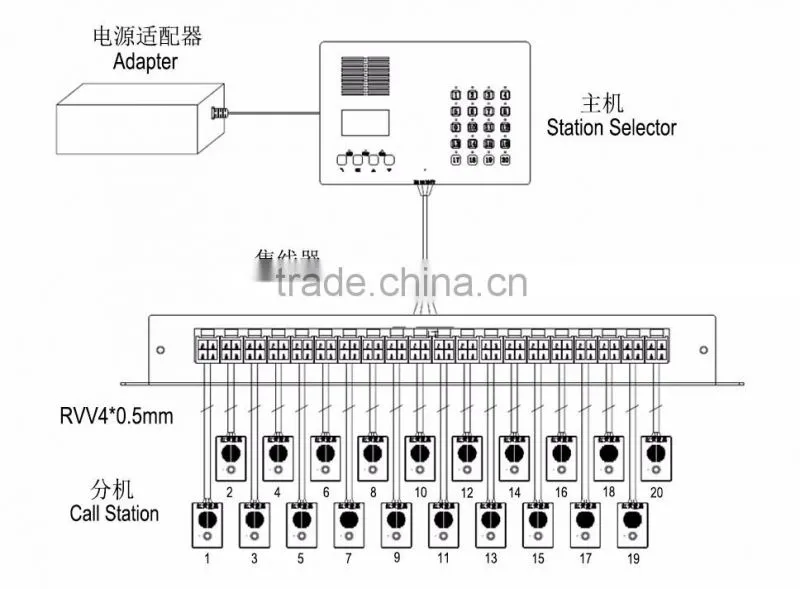

The MINGTE smart intercom system-MT126 is composed of station selector, call station and controller. MT126 is a single channel system is expandable to 20 call stations, which combine easy operation & installation for clear, convenient and reliable communication. The system communication complies with GA/T72-2005 and its range can extend up to 150 meters.
Reliable, highly versatile and expendable, easy wiring, installation & operation
Designed to provide vital communication between station selector & call station Monitoring for call station via selector, automatic record & saving to SD card by selector

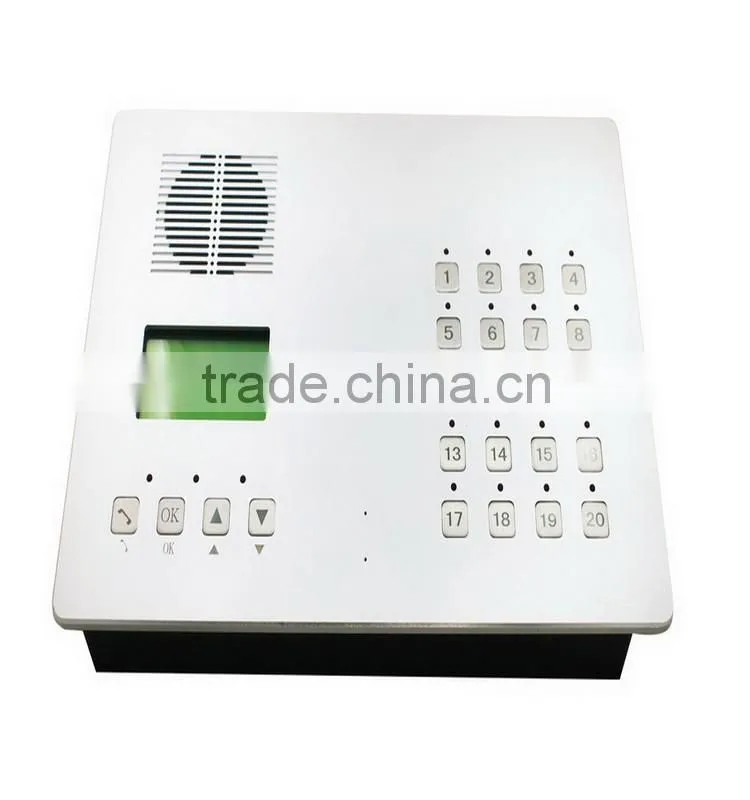

Station Selector
Features
Industrial design & grade, anti-vandal with whole metal material Anti-oxidant & anti-corrosion with aluminum alloy surface
Anti-static (standard: GB/T17626.4-2006 L1)
Lightning-proof & surge-resistant (standard: GB/T17626.5-2008 L2)
LCD displays info & allows easy call identification
24 panel keys’ lifetime up to 200K times, with power adapter
Recording & saving function, support 8G SD card (expandable)
Specifications
POWER SUPPLY |
DC9-12V ± 5% |
POWER |
Standby:≤1W, Working: ≤3.5W |
CALL STATIONS CONNECTION |
≤20 units( No cascading selector) |
COMMUNICATION |
Double-talk, time: 2 minutes |
SNR(SIGNAL TO NOISE RATIO) |
Calling channel≥25dB Replying channel≥30dB |
RINGING SOUND LEVEL |
≥55dB |
WORKING TEMPERATURE |
-40-+65°C |
DIMENSIONS (MM) |
320mm(W)x51mm(D)x220mm(H) |
WEIGHT |
2200g(Packing & accessories not included) |

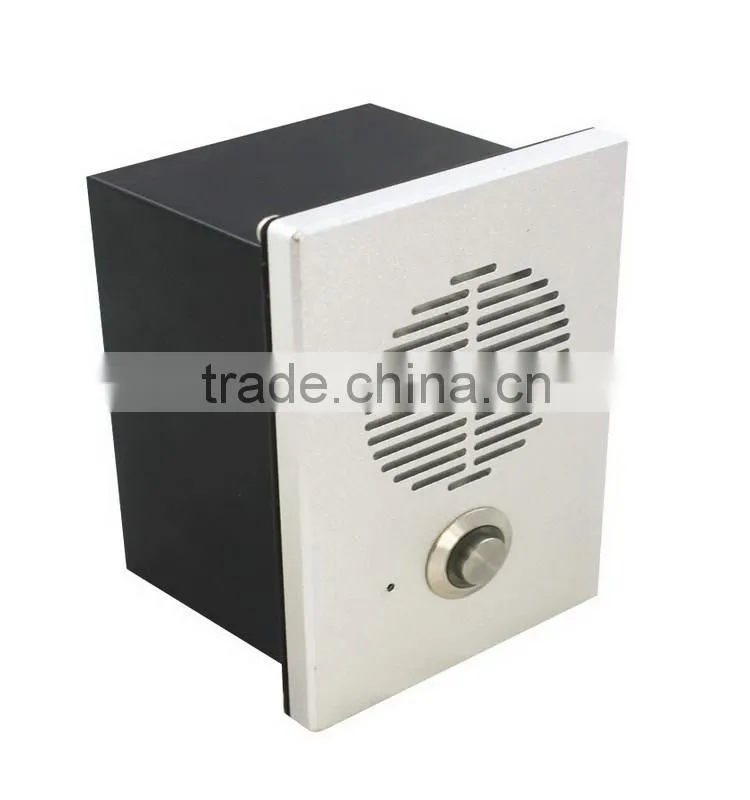

Call Station
Features
Industrial design & grade, anti-vandal with whole metal material
Anti-oxidant & anti-corrosion with aluminum alloy surface
6 Call station numbers, anti-static (standard: GB/T17626.4-2006 L3)
Lightning-proof & surge-resistant (standard: GB/T17626.5-2008 L2)
Panel keys’ lifetime up to 100K times, weather-resistant (IP54)
Specifications
POWER SUPPLY |
DC9-12V ± 5% |
POWER |
Standby:≤1W*20 Units, Working: ≤1.1W*20 Units |
STATION SELECTORS CONNECTION |
1 Units |
COMMUNICATION |
Double-talk, time: 2 minutes |
SNR(SIGNAL TO NOISE RATIO) |
Calling channel≥25dB, Replying channel≥30dB |
WORKING TEMPERATURE |
-40-+65°C |
DIMENSIONS (MM) |
58mm(W)x90mm(H) |
WEIGHT |
220g(Packing & accessories not included) |
Hub
Features
Provides electronic switching and configuration management
Connects to 1 station selector and up to 20 call stations
Call Stations, Fuel Dispenser, CNG Dispensers, Fuel Stations, CNG Stations, Fuel Company, CNG Company
Founded in January 2005, SHENZHEN MINGTE TECH CO., LTD. (MINGTE) has been committed to providing its customers with the best industrial smart card readers and other smart devices. The company dedicates to the R&D, manufacturing, sales, and customer services of its products. It is certified by the Chinese authorities as a High-tech Enterprise and Software Enterprise.
MINGTE has obtained various patents relating to smart card reader technologies, and passed various quality inspection tests from China Bank Card Test Center, EMV Consortium, and China Ministry of Information Industry.
MINGTE has a creative talent pool in both engineering and management. In its engineering team, more than 85% employees have almost 10 years’ experience in the field of smart card payment.
