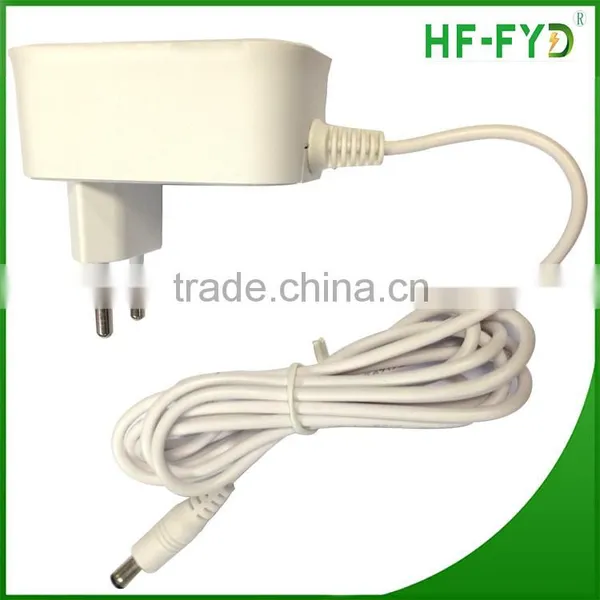

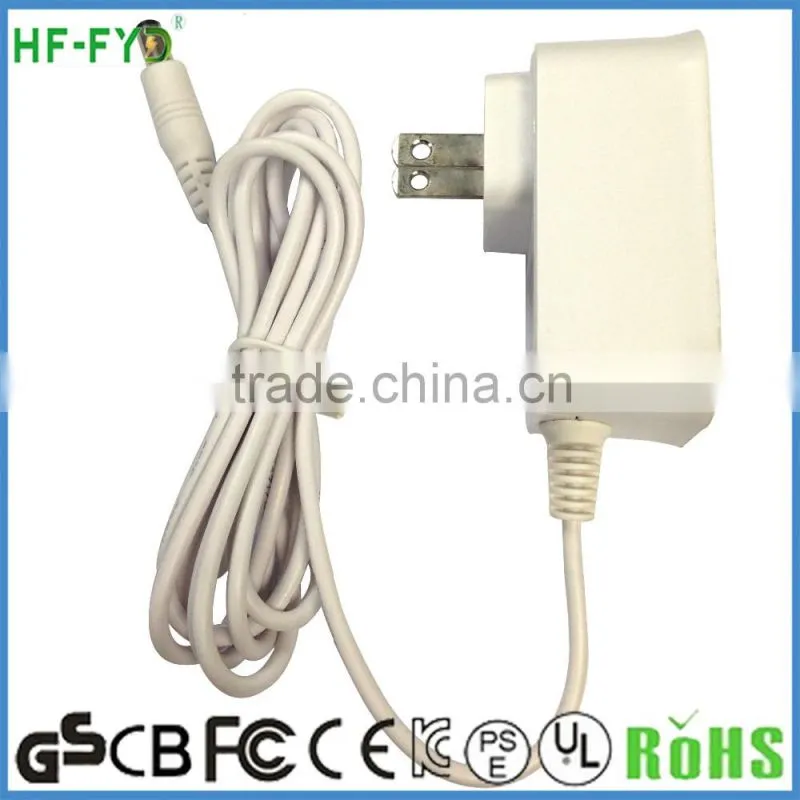

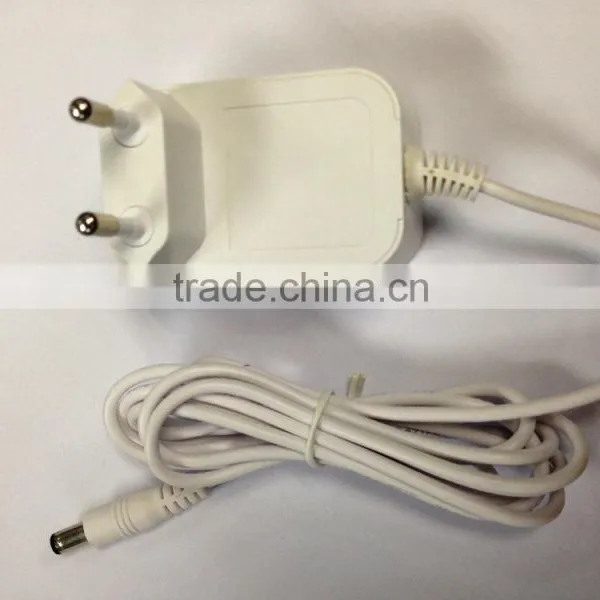

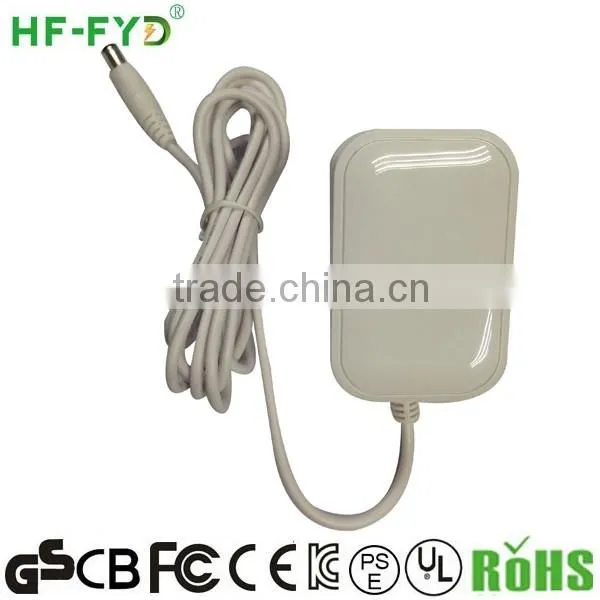

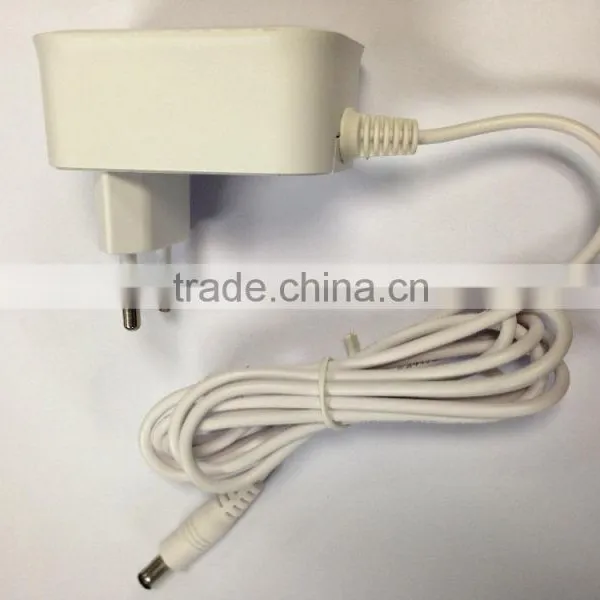

Shen zhen power supplier 16.8V 1A one cell lithium battery Charger
Input Voltage
Table 1: Lists the AC input operating voltage range. The power shall work normally and meet all electrical requirements throughout this range.
Table 1: AC Input Voltage Limitations
| Minimum |
Nominal |
Maximum |
| 100Vac | 110Vac/220Vac | 240Vac |
Input Frequency
Table 2: List the AC input operating frequency range. The power shall work normally and meet all electrical requirements throughout this range.
Table 2: AC Input Frequency Limitations
| Minimum | Nominal | Maximum |
| 47Hz | 50Hz/60Hz | 63Hz |
Efficiency
The power supply efficiency shall be greater than 80% under rated input voltage. It will be measured at the typical load and maximum load.
Output Specification
DC Voltage Regulation
DC Output voltage regulation limits
|
Parameter |
Line Regulation | Load regulation | Cross regulation |
| V1:16.8V | ±5.0% | ±5.0% | N/A |
DC Output Current
| Parameter | Min Current | Rate Current | Max Current | Unit |
| V1:16.8V | 0.1 | 1 | - | A |
Dielectric Strength Testing
| item | specification | Remark | ||
| Primary to secondary | 1.5KVac | <5mA | No arcing No broken |
|
| Primary to P.G | N/A | N/A | ||
Overshoot at turn-on/ turn-off
Any overshootat turn on or turn off shall be less than 150% of rated output voltage.
Over Current Protection
The power supply shall meet the limitation requirement as below table without any damage, the unit shall recover and function automatically after the protection is removed.
Over Current Protection limits
| Parameter | Max | Unit |
| V1:16.8V | 1.5 | A |

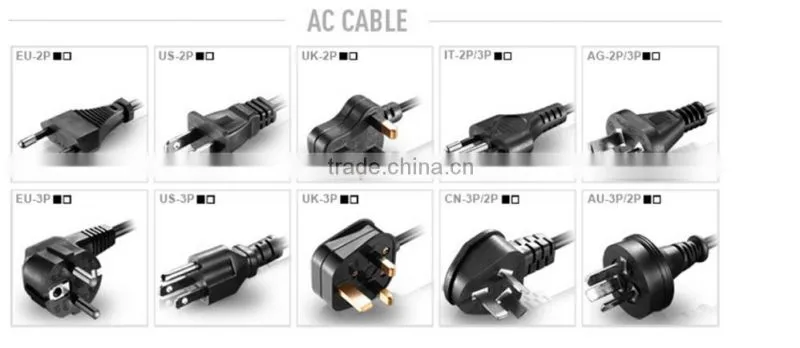

Choose your standard:

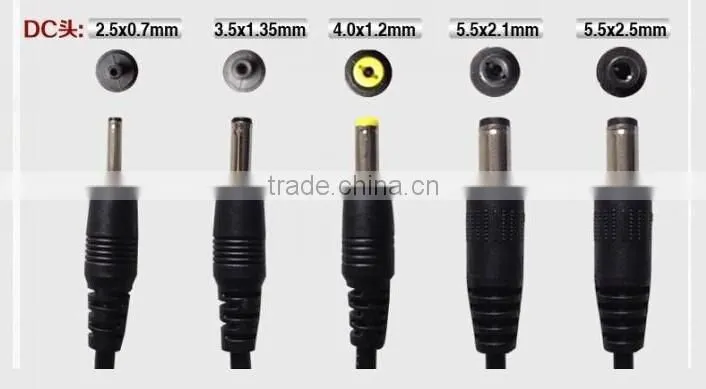

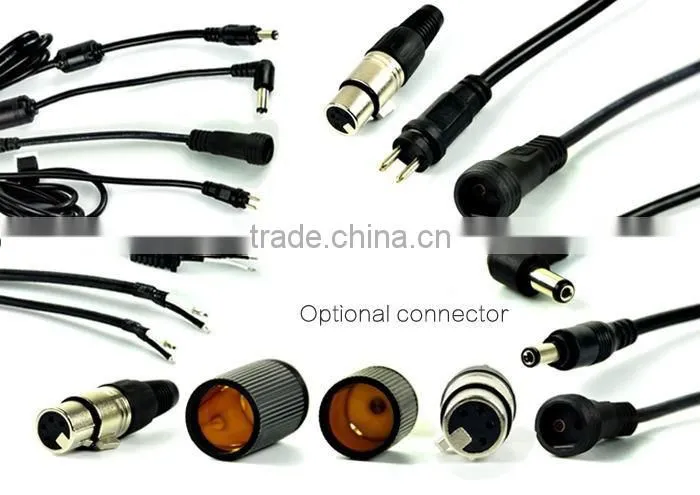

DC Connector
Adavantage
- Fast Delivery: 7-10 working days

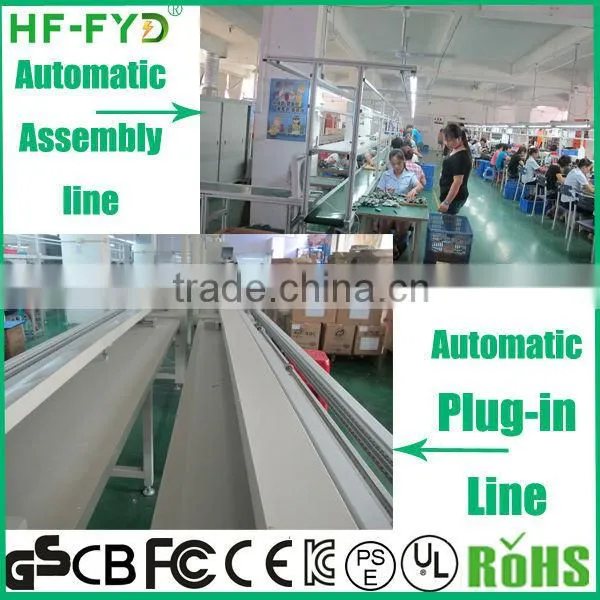

- Advanced Equipment : Imported Machines
- Attractive Price: Help you save cost
- Powerful Quality: 2-year quality guarantee
- Considerate Service: Reply in Time,Delivery on Time
- Complete Certificate
hipping & Handling
- Delivery Time:USA/UK/Canada/Australia/West and North Europe 7 Business Days, Other country 1.5 weeks
- Shipping address:Please provide us with correct and detailed shipping Address.
- Send Time:Items will be shipped within 7 to 10 business days upon payment received
- Note:If you don't receive items over 10 business days , please notify us
Feedback
- We appreciate your positive feedback,our system will automatically leave positive feedback
- If you have any problems please email us before leaving negative feedback.
- We answer all emails as quickly as possible
- Just give us the opportunity to resolve a problem.
- Before you leave a negtive feedback, why don't you email us first? Promised 100% satisfaction!
5V 4A Power Supply with for Power Supply 5V 4A
or 5.5*2.5mm/3.5*1.35mm .
NOTE: Please make sure the DC output and tip size of ac dc power supply are accordant before you bid.
