FY1204000 230V AC DC 12V 4A Switching Power Supply Adapter

Specifications

 230V AC DC 12V 4A switching power supply adapter 48W

Dear Sir or Madam ,

This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484

Looking forward to your any inquires !

Application

Widely used in the electronic digital, communication, security, lighting, medical, etc.

Specification

Description

1.All range voltage input.

2.High efficiency,low loss

3.Meet" European commission of energy"

4.Built in EMC/EMI filter.

5.You can choose the output voltage/current arbitrarily.

Electric performance

1.Output power(max):90-120W

2.Input voltage:90-264Vac

3.Input current(max):1.0A

4.Input frequency:47-63HZ

5.Depletion(no load):<0.3W min

6.Efficieny(max):85%

7.Output voltage:DC12V

8.Output current:4A

9.Short circuit protection:can continuous(auto recover)

Environmental and reliability

Operating temperature:0-40°C

Operating humidity:10-90%RH

Storage temperature:-20-+80°C

Storage humidity:5-90%RH

Protection

1.Over current protection

2.Over power protection

3.Over voltage protection

Advantage

1.2 years warranty
2.100% frull-load burning test
3.With CE,FCC,RoHS,etc

After service

This product can be repair within one year for any defects or irregularities caused by the factory.

Remarks

Indooruse only
Usein dry environment
Donot open the charger if not professional person

Packing

1.Inner package:PEbag,white box or as your demand
2.Outer package:Carton or according your requirement

AC Input Voltage.............96~264V AC 47~63 Hz

Inrush Current..............<50A(AC 240V  at 25°C)

input Current Limiting..............<2.5A(under min AC input and full load)

Efficiency..............>80%

DC Voltage Regulation

DC Output Current

Output Ripple & Noise............120mVp-p@25 °C

Output Dynamic Load Response

Overshoot at turn-on/ turn-off.............<10%

SCP...........<0.1 ohms

OCPlimits..........8 A

Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)

Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)

Working temp...........0°C~ 40°C

Storage temp Range..........-10°C~ +85°C

Working humidity..........25%~90% relative humidity (Non- condensing)

Storage humidity Range..........10%~90% relative humidity (Non- condensing)

MTBF............ 50K hours (25°C , Full load and rated voltage input)

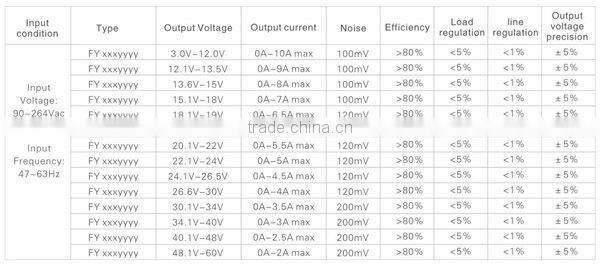

Output voltage and current

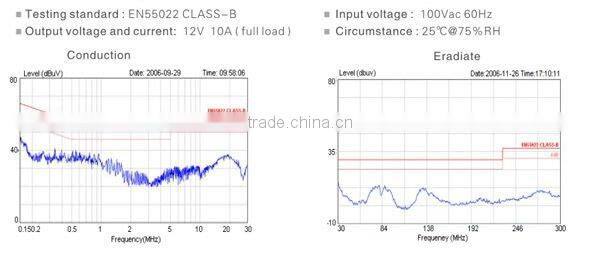

Conduction and Eradiate
