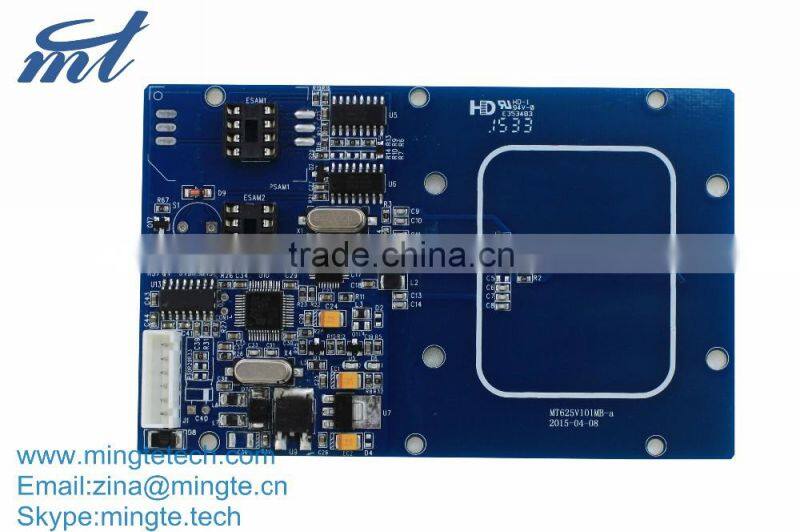

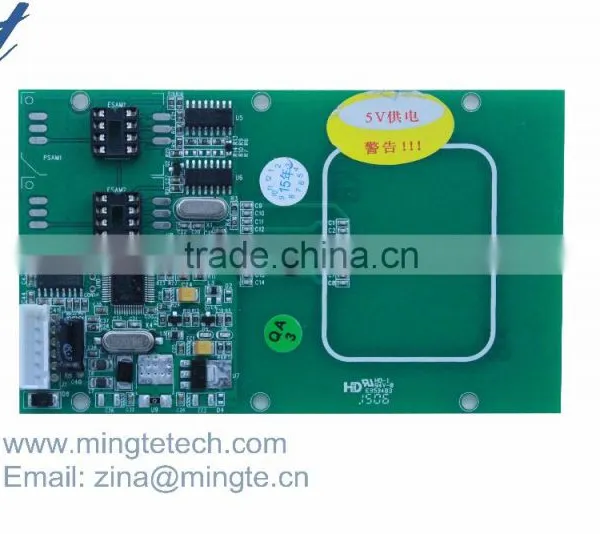

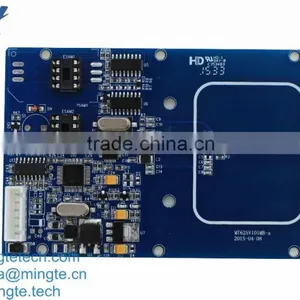

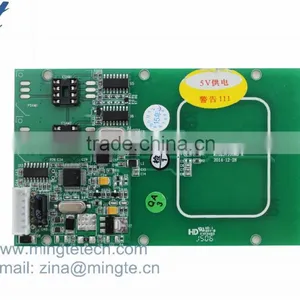

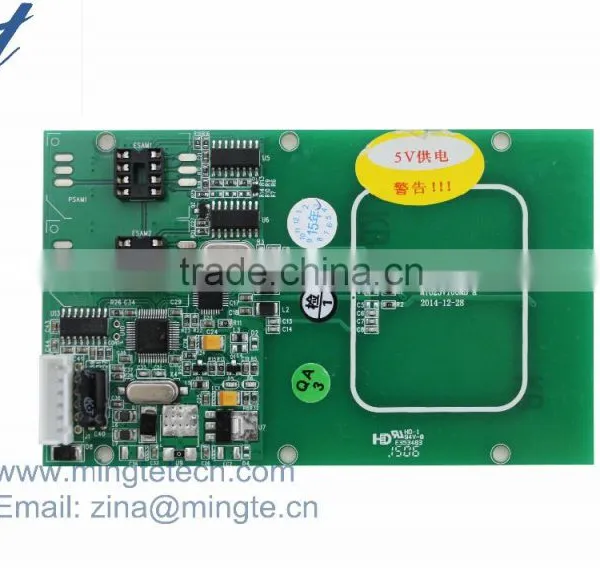

RFID Mifare card reader Module proximity reader MT318-625
- Shen zhen/Guang zhou/Hong kong
- Credit Card
You May Like
-
contactless proximity reader RFID/RF radio IC card reader and writer MT318-620
-
contactless proximity reader RFID/RF radio IC card reader MT318-622
-
proximity reader Contactless card reader/Writer MT318-626 with ABS shell
-
RFID Mifare IC card reader Module contactless proximity Reader/Writer MT318-628 for parking system
-
gating alarm abs plastic enclosure for pcb MT318-626 for contactless ic rfid card
-
mobile card reader and writer on plastic card MT531 for smart phone and tablet
Product Details
| Place of Origin | Guangdong, China | Brand Name | MT | |
| Model Number | MT318-625 |
Product Description
Features
1:Support contactless IC card (ISO14443 TYPE A & B)
2:Support S50 & S70 (Mifare) card (ISO14443 TYPE A & B)
3:Support 2 PSAM & ESAM card (ISO7816), optional PSAM and ESAM
4:Customized for compatible with application flow of charging points from China Southern Power Grid or State Grid
5:Customized for related or financial applications, easy and cost-effective for secondary development
6:Various corresponding and custom design
7:Software updated via RS232 supported
8:Carefully-designed antenna size for most installation design
9:Various installation dimensions design, temperature-proof
Applications
1:Electric Vehicle Charging Points/Piles & Stations, Fuel Dispensers, CNG Dispensers
2:ATMs, Kiosk Terminals, Payment Systems, Vending Machines, Gaming Machines, Parking Systems
3:POS Terminals, ID Terminals, Security and Access Control Terminals, Credit Authorization Terminals
Specifications(R: Read only, R/W: Read & Write)
CATEGORY | Contactless | |
CARD TYPE | Contactless IC Cards SIM Cards, PSAM Cards, ESAM Cards | |
CONTACTLESS CARD | ISO14443 Type A & B & Mifare | R/W |
IC CARD | SIM/PSAM/ESAM | R/W |
EMV | Level 1 Compliant | |
CARD READING DISTANCE |
4-8cm and 106Kbit (Related to cards and installation environment) | |
INTERFACE | RS-232/TTL(uart) | |
BAUD RATE | 9600/38400/57600/115200bps | |
ANTENNA | PCB Antenna | |
FREQUENCY | 13.56MHz | |
COMMUNICATION SPEED | 106Kbit(212Kbit & 424Kbit pps commands optional) | |
SECONDYARY DEVELOPMENT | VC, Linux | |
OPERATING SYSTEM | Windows 98, Me, 2K, XP, 2003, Vista and Linux | |
DATA STORAGE CAPACITY | Standard capacity inside reader: 4k bytes | |
STATUS DISPLAY | LED indication light & buzzer | |
POWER SUPPLY | DC5V or +8-15V± 5% | |
CURRENT | Current: ≤25mA(5V) Max: ≤130mA(5V) | |
WORKING TEMPERATURE | -40-+65°C | |
WEIGHT | Approx 32g | |
