Specifications
1.FY0502000 5V 2A AC/DC universal Adapter2.High quality
3.With IC control
4.Efficiency:88%
5.100% full-load burning test
FY0502000 5V 2A AC/DC universal Adapter
Dear Sir or Madam ,
This is Hera Cao .If you are interested at our products ,please kindly E-MAIL me or call me if you can .My mobile is 86 150 1363 3484
Looking forward to your any inquires !
Specification
| Color | Black or as your demand |
| Input Frequency | 50-60Hz |
| Input Voltage | AC 110V or AC240V |
| Operation Temperature | 0°C ~ +40°C |
| Vibration Input Voltage Range | AC95V-265V |
| Input Rated Current | 0.4-0.6AMP |
| Efficiency | >88%(TYP) |
| Output Power | 10W |
| Output Current | 2AMP |
| Output Voltage | 5V |
| Overload Protection | YES |
| Short Circuit Protection | YES |
| Ripple Noise | 500mv |
| Line Regulation | 1% |
| Load Regulation | 1% |
| Warranty | 2 years |
| Size | 75*40*38.5mm |
| Weight | 80 g |
Switching mode power supply
1.Rated input voltage:AC100-240V 50-60Hz
2.Output voltage:DC 5V 2A

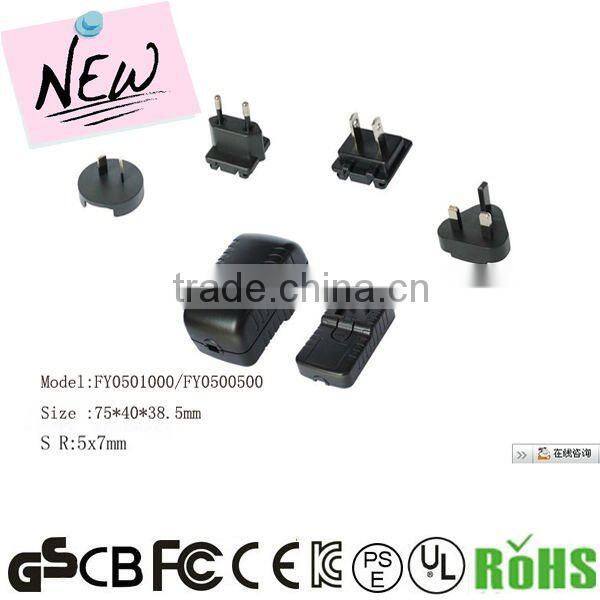

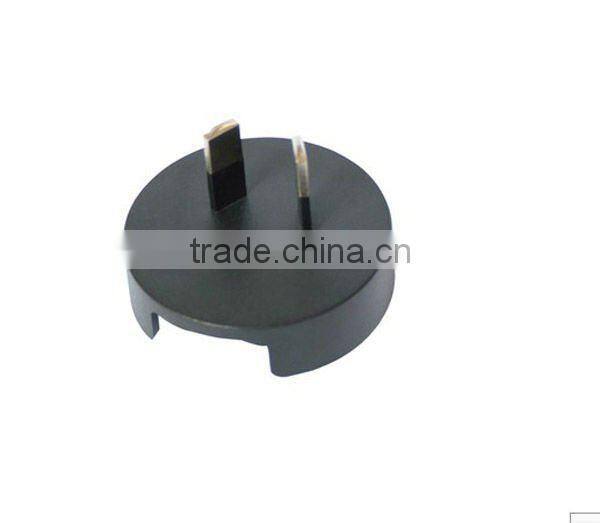

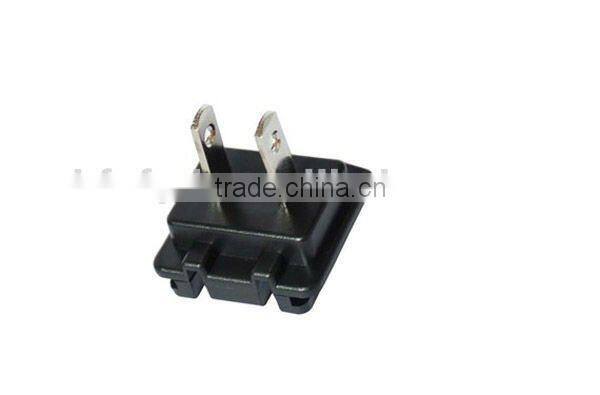

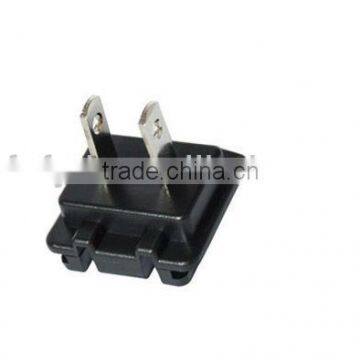

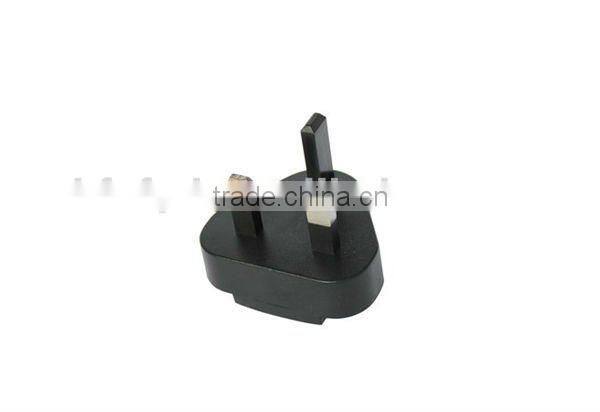

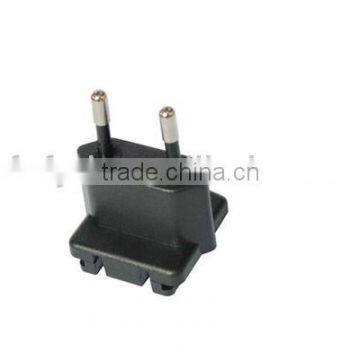

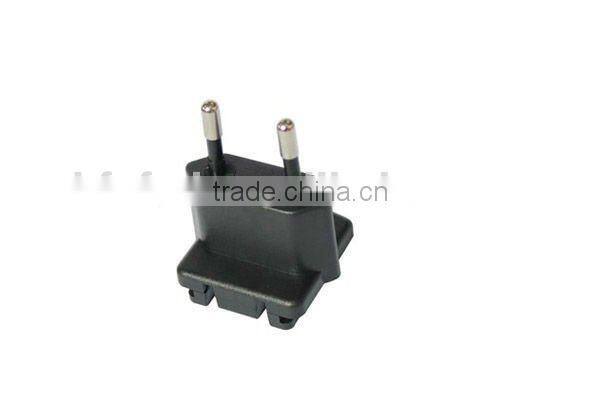

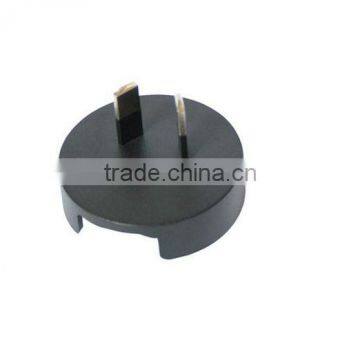

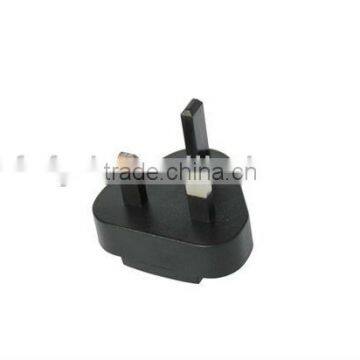

3.Plug in:Can change 4 kinds:UK(BS)--3pin,UL --2pin,GS --2 round pin,SAA--2pin
4.Operation temperature:0 to +45 degrees
5.Input current fuse protection
6.Output short Circuit Protection
7.Overvoltage protection
8.Overcurrent protection

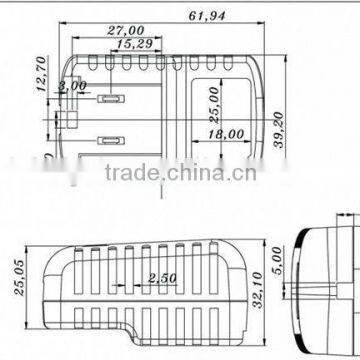

9.Demension:75*40*38.5mm
10.Application:Vacuum Cleaner,Lighting,Gifts,Toys,Power tools ,IT equipment.......
Protection
Over voltage protection: 120%min
Over current protection: 120%min
Over load protection: 5%
Short-circuit protection: automaticrecovery
Packing
1.Inner package:PEbag,white box or as your demand
2.Outer package:Carton or according your requirement
After service
This product can be repair within one year for any defects or irregularities caused by the factory.
Remarks
Indooruse only
Usein dry environment
Donot open the charger if not professional person
Usagedguide
1.insertthe AC adapter prongs fully into the wall outlet.
2.Regmovehe AC adapter from the wall outlet when it is fully charged or not in use
if you are interested in any of our products,please feel free to visit our website,or contact us for more information,we look forward to establish friendly business relations with you in near future.
AC Input |
AC Input Voltage.............100~240V AC 47~63 Hz
Inrush Current..............<30A(AC 240V at 25°C)
input Current Limiting..............<2.5A(under min AC input and full load)
Efficiency..............>80%
DC Output |
DC Voltage Regulation
Parameter |
Line Regulation |
load Regulation |
Cross Regulation |
V1:5V |
±5.0% |
±5.0% |
N/A |
DC Output Current
Parameter |
Min Current |
Rate Current |
unit |
V1:5V |
0.1 |
2 |
A |
Output Ripple & Noise............. 50 mVp-p@ 25 degrees C
Output Dynamic Load Response
Dynamic Load |
DC Voltage Regulation |
50%~100%~50% |
±10% |
Overshoot at turn-on/ turn-off.............<10%
Protection Function |
SCP...........<0.1 ohms
OCPlimits.........6A
Timing |
Hold up time...........>5mS(100Vac/47Hz),>10mS(110/220Vacc/50/60Hz)
Start up time..........<3S(100Vac/47Hz),<2S(110/220Vac/50/60Hz)
Environment Requirement |
Working temp...........0°C~ 40°C
Storage temp Range..........-10°C~ +85°C
Working humidity..........25%~90% relative humidity (Non- condensing)
Storage humidity Range..........10%~90% relative humidity (Non- condensing)
MTBF............ 50K hours (25°C , Full load and rated voltage input)
Product Safety Requirement |
Standards............Meet IEC60950-1standard requirement
Leakage Current.............not exceed 0.25mA at 220Vac/50Hz
Insulation Resistance...........≥50MΩ ,500VDC
Overshoot at turn-on/ turn-off.............<10%
Dielectric Strength Testing |
100%Hi-pot test
Item |
Specification |
Remark |
|
Primary to Secondary |
1.5KVac |
<5mA |
No arcing No broken |
Primary to P.G |
N/A |
N/A |
|
Dielectric Strength Testing |
100%Hi-pot test
Item |
Specification |
Remark |
|
Primary to Secondary |
1.5KVac |
<5mA |
No arcing No broken |
Primary to P.G |
N/A |
N/A |
|
