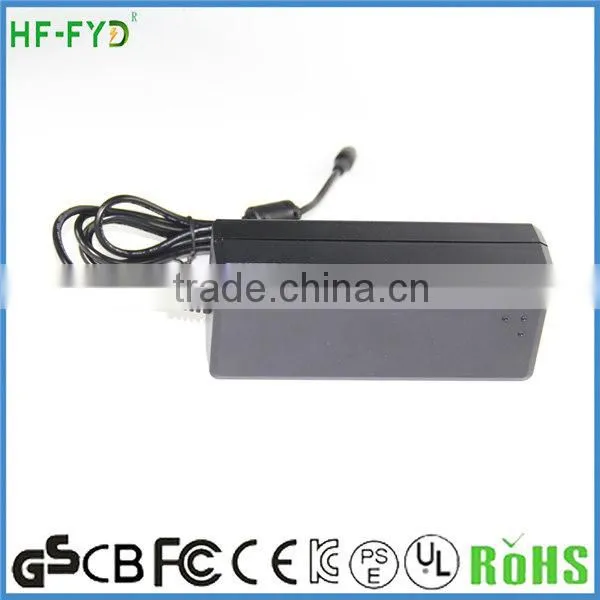

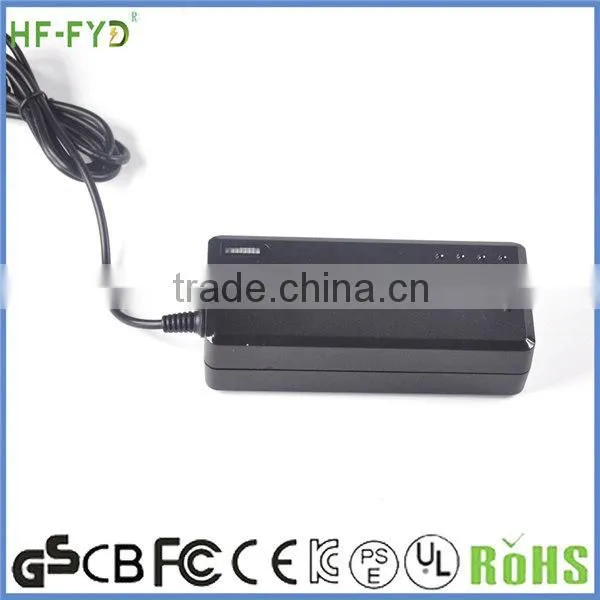

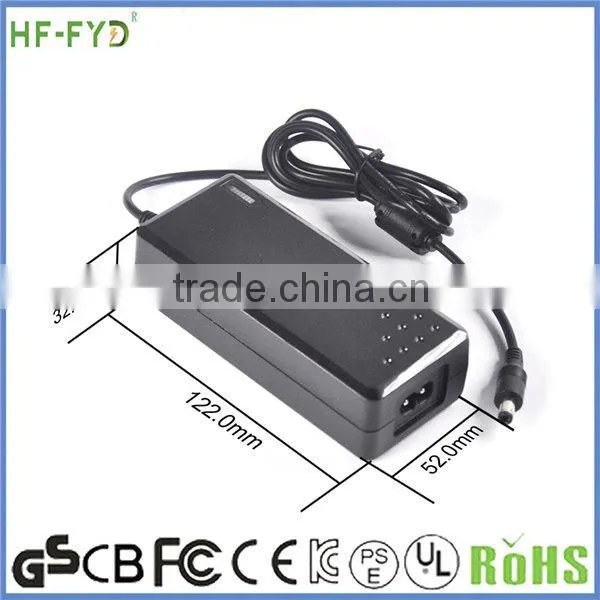

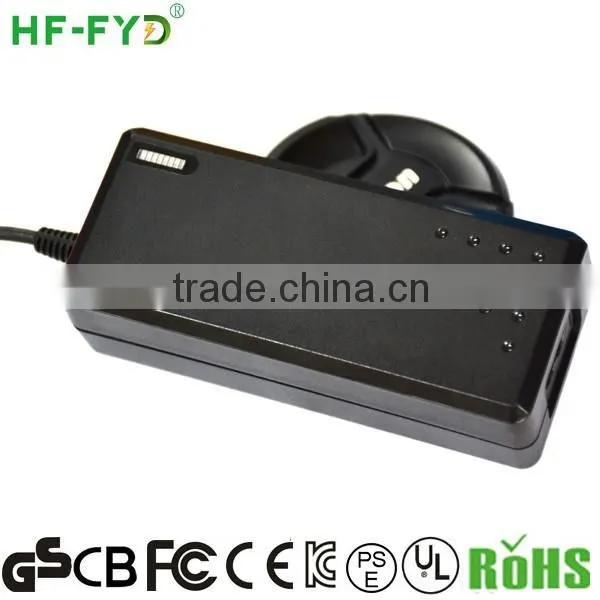

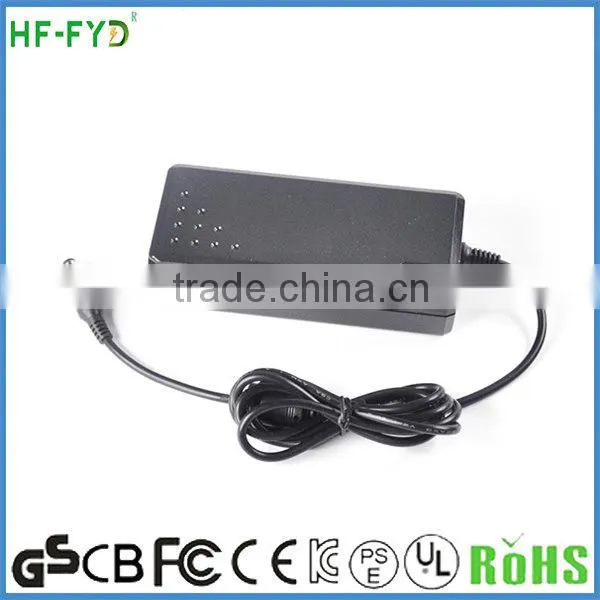

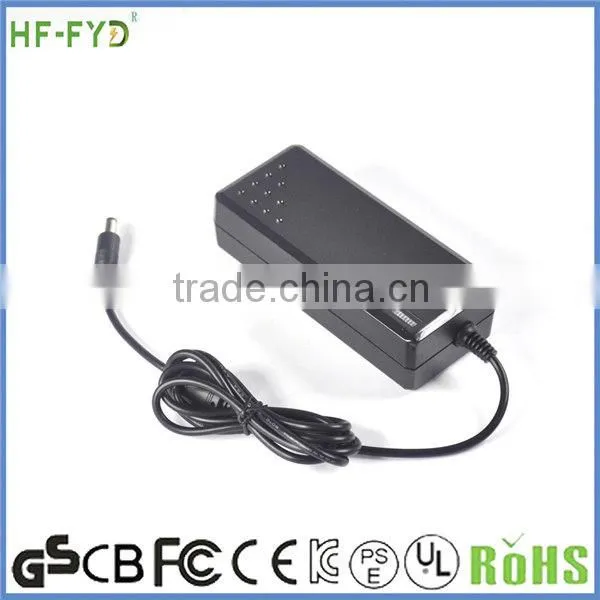

NEWEST 19V 3.42A 65W LAPTOP AC ADAPTER FOR LAPTOP POWER CHARGER SUPPLY
Widely used in the electronic digital, communication, security, lighting, medical, led lighting, led display, etc
v Power:65W
v Model:FY1903420
v Input voltage: AC 110-240V
v Universal input voltage
v Frequency: 47-63HZ
v Output voltage:DC 19V
v Output current:3.42A
v Color:Black or white
v Certification:CE,UL,SAA,CB,FCC,GS,KC,PSE,etc
v 2years warranty
v High quality,competitive price
v Punctual and Fast delivery
v Efficiency:85%
Input Voltage
| Minimum | Nominal | Maximum |
| 100Vac | 110Vac/220Vac | 240Vac |
Input Frequency
| Minimum | Nominal | Maximum |
| 47Hz | 50/60Hz | 63Hz |
Input Current Limiting
The input current should be less than 2.5A, under minimum AC input and full load.
Efficiency
The power supply efficiency shall be greater than 80% under rated input voltage. It will be measured at the typical load and maximum load.
DC Voltage Regulation
| Parameter | Line Regulation | Load regulation |
Cross regulation |
| V1:19V | ±5.0% | ±5.0% | N/A |
| Parameter | Min Current | Rate Current | Max Current | Unit |
| V1:19V | 0.1 | 3.42A | - | A |
| Parameter | Max. |
V1:19V |
120mVp-p@25 degrees C |
| Item | Specification | Remark | |
Primary to Secondary |
3KVac | <5mA | No arcing |
| Primary to P.G | N/A | N/A | No broken |
Overshoot at turn-on/ turn-off
Any overshoot at turn on or turn off shall be less than 150% of rated output voltage.
Over Current Protection
The power supply shall meet the limitation requirement as below table without any damage, the unit shall recover and function automatically after the protection is removed.
Over Current Protection limits
| Parameter | Max | Unit |
| V1:19V | 5.13 | A |
² Over-voltage protection: 120%min
² Over-current protection: 120%min
² Short-circuit protection: automatic recovery
² over protection
² Load regulation: ±5%
Standard
Meet IEC60950-1 (information technology and similar electric apparatus -safety requirement) standard requirement.
Advantage of the product
l range voltage: AC 90-264V 47/63HZ
l High efficiency and low operation temperature
l AC input power suitable for the world
l Soft-start current can reduce the AC input impact efficiency
l Compact size ,light weight
l With short-circuit and overload protection
l 100%full-load burning test
l Installed with EMI filter ,minimum wave
Environmental requirement
1)operating temperature: 0-40°C
2)storage temperature: -20-85°C
3)opera ting relative humidity:595%RH
4)Withstanding voltage: AC 3,000V (minimum), 5mA (maximum)
5)Insulation resistance: DC 500V 100MΩ (minimum)
BASIC TERMS:
MOQ (Min Order Qty): 300PCS / 1 CT or 50PCS/CT
Lead-Time: 7-15 Working Days Normally
Warranty Period: 2 years
Payment Methods: T/T, Paypal, Western Union, etc
Shipping Mode: Express Courier, Air, Sea or as your demand
Description:
Ø Universal input voltage
Ø 5 Years Experience Factory
Ø High quality,best price
Ø Punctual and Fast delivery
About us
We are a professional adapters factory for more than 5 years
Quality control:our defectie products rate is 0.01%
Economically priced, exquisitely made Experience&responsible QC that you can reply on
Adequate supply capacity, Punctual delivery time
Best after sales service are provided
After service
This product can be repair within one year for any defects or irregularities caused by the factory.
1.Inner package:PEbag,white box or as your demand
2.Outer package:Carton or according your requirement
| Inside package | PE bag |
| Package | 40 PCS/CT |
| Outer package | Carton |
Welcome to your inquiry ,any questions feel free let me know !
My contact ways : whatsapp:+86-15800081399
Mobile phone No. +86-13048938476
