2014 6.5ton Articulated Mini Wheel Loader

US$ 14,000 - 150,000 MOQ: 1 Piece

Key Specifications

Condition:

New

Brand Name:

YJF

Model Number:

loader 6500D

Weifang Yijia Imp. & Exp. Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name YJF

Model Number loader 6500D

Place of Origin Shandong, China

Type Skid Steer Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 3666x1980x2080mm

Rated Load 1200kgs

Certification CE

Warranty one year

After-sales Service Provided Overseas third-party support available

Specifications

1) articulated mini wheel loader

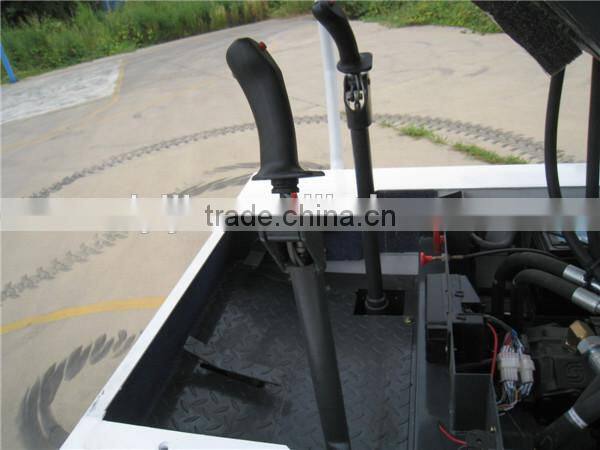

2)Hydraulic Servo Joystick
3) Two Speeds
4) Rexroth Control Valve
5) CE

2014 6.5ton articulated mini wheel loader

1) articulated mini wheel loader

2)Hydraulic Servo Joystick
3) Two Speeds
4) Rexroth Control Valve
5) CE

The specification of 6.5ton articulated mini wheel loader

Model	WT650D	Model	WT650D
Engine model	China engine C490BPG	Overall operating height (mm)	3850
Bore×stroke (mm)	90×105	Height to bucket hinge pin (mm)	3225
Rated power (kw)	40	Height to top of cab (mm)	2070
Rotating speed (rpm)	2650	Height to bottom of level bucket (mm)	3065
Number of cylinders	4	Overall length without bucket (mm)	2538
Max. Torque (n.m)	156	Overall length with bucket (mm)	3345
Displacement (L)	2.67	Dumping angle at maximum height(°)	42
Max. Speed (km/h)	12	Dumping height (mm)	2445
Vacuum tire	10-16.5	Dumping reach (mm)	585
Operating load (kg)	650	Rollback of bucket on ground (°)	31
Max. Loading (kg)	1200	Rollback of bucket at full height(°)	86
Lifting Type	Radial	Wheelbase (mm)	991
Bucket lifting force (kN)	1500	Ground clearance (mm)	210
Arm lifting force (kN)	1300	Angle of departure(°)	30
Total cycling time (s)	10.2	Turning radius front without bucket (mm)	1380
Bucket capacity (m³)	0.47	Front turning radius (mm)	2027
Pressure of working system(bar)	160	Rear turning radius (mm)	1527
Rated flux (L/min)	60	Rear axle to bumper (mm)	981
High flow flux(optional)	---	Tread width, centerline to centerline (mm)	1465
Fuel tank capacity (L)	79	Width between outside of two wheels (mm)	1730
Self-weight with bucket (kg)	2850	Bucket width (mm)	1800
