Steel formwork props scaffolding props steel props
TIANJIN YOUFA GROUP located in Daqiuzhuang Industrial park ,Tianjin city China .Youfa Group is the strongest steel product manufacturing group, and YOUFA brand is the No.1 brand in the same industry of China.Our products are sold to all over the country and exported to more than 50 countries such as the EU,the United States,Australia,Southest,Asia,the Middle East,etc.
Detailed Description:
Props scaffolding props steel props are widely used in different supporting areas. Slab formwork and table formwork with its high loading capacity may meet maximum stability for your site jobs. steel props also can be adjust to different sizes.
Props scaffolding props steel props
1.Diameter of inner tube: 40mm,48mm,etc.
2.Diameter of outer tube: 48m,56mm,60mm etc.
3.Wall thickness:1.6mm,1.7mm,1.8mm,2mm etc.
4.Adjustable length:heavy duty 1800-3200mm,2100-3400mm,2200-3900mm ,
2200-4000mm,3000-5000mm,3500-4000mm etc.
light duty 1600-3000mm,1800-3500mm,2000-3500mm etc.
5.Base plate:120*120*4mm/4.5mm/5mm,150*150*6mm
6.Shape of base plate:flower or square
7.Surface : paint,hot dipped galvanized,pre-galvanized,electrical galvanized
8.Type:with hands cup or open thread
9.OEM service is available
10.Package:in bundle or in bulk
Standard size:
props scaffolding props steel props
Components |
Description |
Inner tube |
OD:40mm,48mm etc. |
Outer tube |
OD:48mm,56mm,60mm etc |
Screw |
Φ60*3*200 mm |
Nut |
0.45kg or 0.7KG |
Base |
flower plate, square plate Size:120*120*5mm or 120*120*4 mm |
Top plate |
U size, flower plate, square plate Size:120*120*5mm or 120*120*4 mm |
Lock pin |
Φ12 mm |
Photos of props scaffolding props steel props

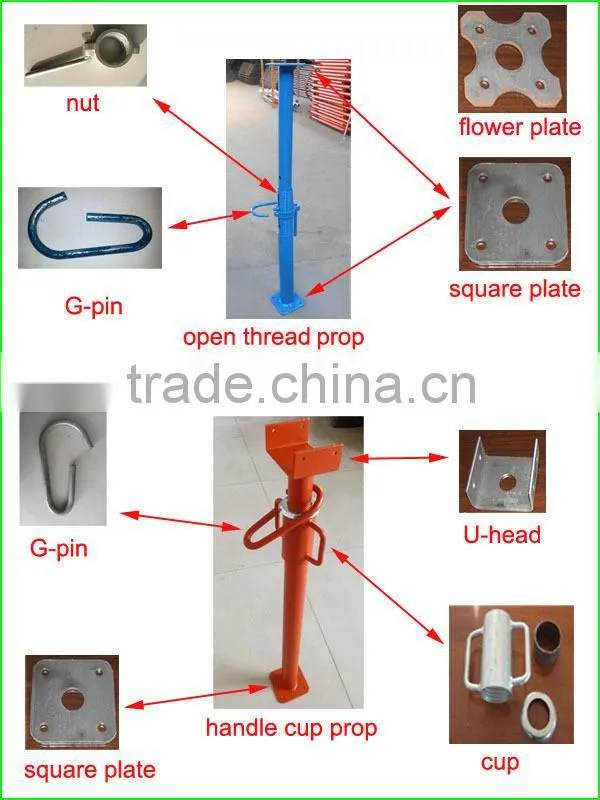

More details of props scaffolding props steel props :

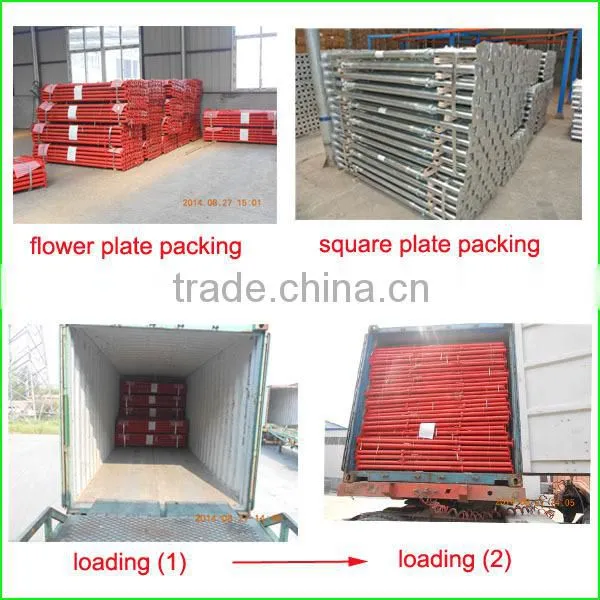

How we packed and loaded: props scaffolding props steel props .
Payment terms:
Why choose us:
Have our own factory which is a leading manufacturer of walkboard scaffolding couplers ,
system scaffoldings and accessories,galvanized steel tube,Frames,steel props, metal planks
and other related products.
1).Good quality control in production process, ISO9001:2008,SGS, approved.
2). Excellent quality and Competitive price, OEM is available.
3).Available in an extensive range of stock or custom size.
4).The whole process from material to finished products can be traced.
5).Our factory is close to the Xingang port.
Enough production lines and workers to delivery on time.Our products have passed the customer`s
quality test, and the factories have thequality testing instruments.
Our scaffolding items:
For more detais of props scaffolding props steel props , please contact me direactly, thank you.
Steel formwork props scaffolding props steel props
