parallel twin Barrel screws for machines used for moulding pneumatic tires
USD $100 - $10,000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Ningbo
- T/T
You May Like
-
Low Price PVC WPC profile for Window and Door Profile Production Line making machine
-
Double corner automatic plastic refrigerator gasket welding machine PVC gasket welding machine
-
PLA PBS PBAT Starch Straw Sheet Extrusion Line
-
Sheet Extrusion Line / APET PETG CPET sheet extrusion line
-
Ice Chest/Freezer Sealing Strip Door Gasket Magnetic Strip Making Machine/Magnet Strip Extruder for refrigerator door gasket
-
Magnet Strip Extruder for refrigerator door gasket
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | QunYing | Model Number: | QY-LG107 |
Product Description
Specifications
1.parallel twin screw and barrel for extruder2.material:alloy-steel of high quality
cessed to drawing or your request

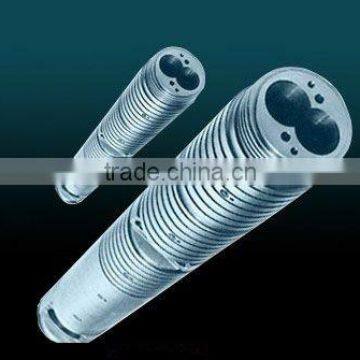

Parallel twin screw and barrel for extruder
Material:
Alloy-steel of high-quality
1. 38 CrMoAIA(JIS SACM645)
2. 42CrMo(AISI4140)
3. 9Cr18MoV
4. CW6Mo5Cr4V2
5. SKD61
Processes:
1.Heat-treatment
2.Nitriding treatment
3.Electroplate hard-chrome
4.High-frequency quenching
5.Spraying corrosion wear-resisting dual metal layers
6.Vacuum quenching
Technical Parameters:
Screw
1. Nitride Depth: 0.55-0.7mm
2. Nitride Hardness: 850-960HV
3. Surface Roughness: Ra≤0.8um
4. Screw Straightness: 0.015mm
5. Bimetallic Hardness: HRC50-62
6. Bimetallic Depth: 1.5-2.0mm
Barrel
1. Nitride Depth: 0.55-0.7mm
2. Nitride Hardness: 960-1020HV
3. Surface Roughness: Ra≤1.6um
4. Bimetallic Hardness: HRC50-65
5. Bimetallic Depth: 1.5-2.0mm
Our products can ensure high performance and low energy consumption of extruder and Injection molding machine. More over, we can supply professional screw and barrel to your order! Sincerely looking forward to establishing new business ship with you in the near future.
|
