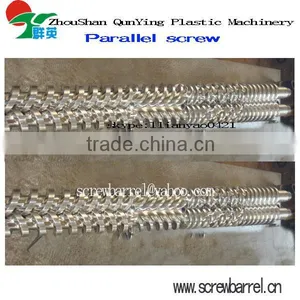

Parallel Twin Screw Barrel With Bimetallic for Extruder

Parallel Twin Screw Barrel With Bimetallic for Extruder thumbnail-1
Parallel Twin Screw Barrel With Bimetallic for Extruder photo-1
US$ 1,500 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
QunYing
Model Number:
Parallel twin screw barrel
Contact Supplier Request Quote Chat Now
Zhoushan Qunying Plastic Machinery Manufactory
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name QunYing
Model Number Parallel twin screw barrel

Specifications

1.Parallel twin screw barrel with bimetallic for extruder
2.ISO9001:2008,SGS approved
3.Basic Material: High quality Steel

Parallel twin screw barrel with bimetallic for extruder

Parallel twin screw barrel are widely used in producing pipe,cable,plate,profile and ect with plastic material pvc+caco3,WC pp pe and ect.

All our parallel twin screw and barrel adopt the quality 38crmoala as the basic material,but that could change if you want.

Our manufactory have been already passed the ISO 9001:2008 and SGS certificate.


Dimension Avaliable

Parallel twin screw barrel---Screw Diameter : 55/2,65/2,70/2,80/2,88/2,90/2,100/2,110/2,130/2...



We also could produce unconventional parallel twin screw and barrel,and our engineer could design the screw according to your plastic material and products.

And our manufactory even have many parallel twin screw barrel designs of word-famous brand: such as CINCINNATI,BATTENFELD,KRUSSMAFFEI,BAUSANO,WEBER,AMUT....

So dear customer,if you are need to change your parallel twin screw barrel recently,please contact us! we could satified you.


Material
Normal Material we use as following:
1.38CrMoAlA(JIS SACM645),( this are the best common material in producing parallel twi screw and barrel)
2.Cr12MOV(JIS SKD-11)
3.4Cr5MoSiV1(JIS SKD-61)
4.42CrMo(AISI 4140)

The foreign material we used as following:



1. Germanysteel, GH113 ,2250 ,2842 ,1.8509 ,1.442 ,1.6582 ,1.6523 ,1.2080,1.4542,
2. USA steel, P20,420,L6,H13,W110,D3,A2,D6,O1,S1,M35,8620,3115,K52440
3. Sweden steel, 718S,718H,S136,S136H,STAVAX,ASP-23,ASP-30
4. Australia Steel, M202,M300,W302,K460,W300,K900,K100,W321
5. Hardnesssteel, YG6X,YG 6A,YG 6,YG8N,YG8,YG8C,YG11C,YG 15,YT5,YT14,YT30
6. Japan Steel, SKT 4,YXM 4,YXM 42,SNC 815,SK -3,SKS 3,and etc.
Treatment
Parallel twin SCREW and BARREL GRADE
Nitrided
Bimetallic
Grade A - containing Tungsten of 40%
Grade B - containing tungsten of 25%
Grade C - containing tungsten of 9.5%

Technical Parameter
Nitride Case Depth
0.5mm-0.8mm
Nitride Hardness
950-1150HV
Nitride Brittleness
≤Grade One
Surface Roughness
Ra0.4um
Screw Straightness
0.015mm
Alloy Hardness
HRC58-75
Alloy Depth
0.8mm-3.5mm
Bimetallic Thickness
2-4mm

Advantage of parallel twin screw and barrel
1. Parallel twin screw barrel has the advantage of lower rotation speed, smaller shear stress between the small screw
2. Good plasticization, high productivity, small shear force, stable pressure , less wear and tear and low cost.
3. Parallel twin screw barrel is widely used in PVC products processing, especially for the production of PVC products with the output over 350Kg / h, because the parallel screw barrel costs less than conical twin-screw and barrel while it has more mature technologe.
4. Parallel twin screw and barrel is successfully applied in PVC plate, pipe, profile, pellet and mould, at the same time, it solved the technical problem of low foaming, high foaming, high filling, wear and corrosion.

AT LAST, LET'S SHOW YOU PHOTOES OF PARALLEL TWIN SCREW BARREL WE TAKE IN OUR WORKSHOP:
PROCESSING:
CUSTOMER TESTING
CUSTOMER VISITING US:

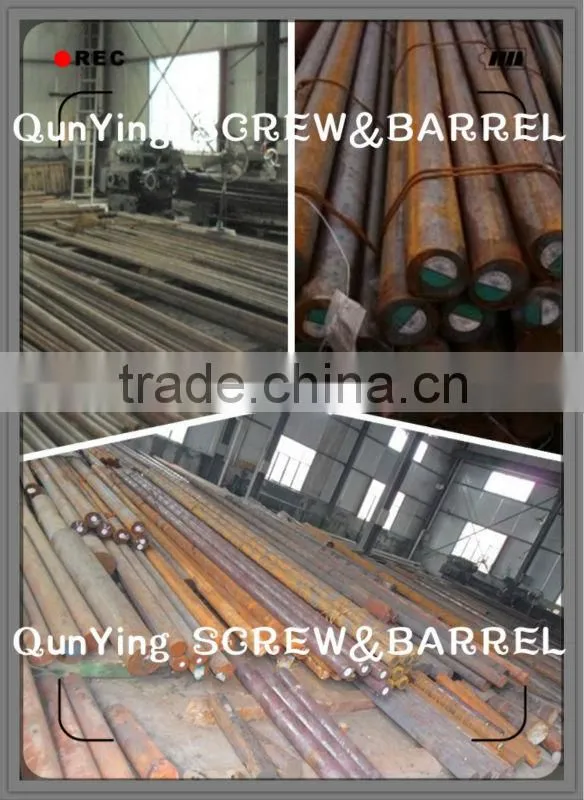

Raw Material Show:
parallel twin screw barrel with bimetallic for extruder

Certificate Show:

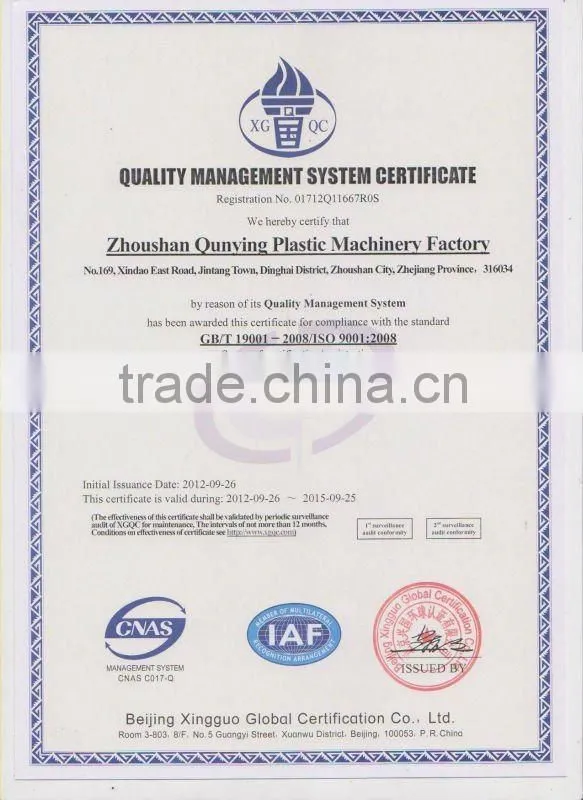

ISO9001:2008
parallel twin screw barrel with bimetallic for extruder

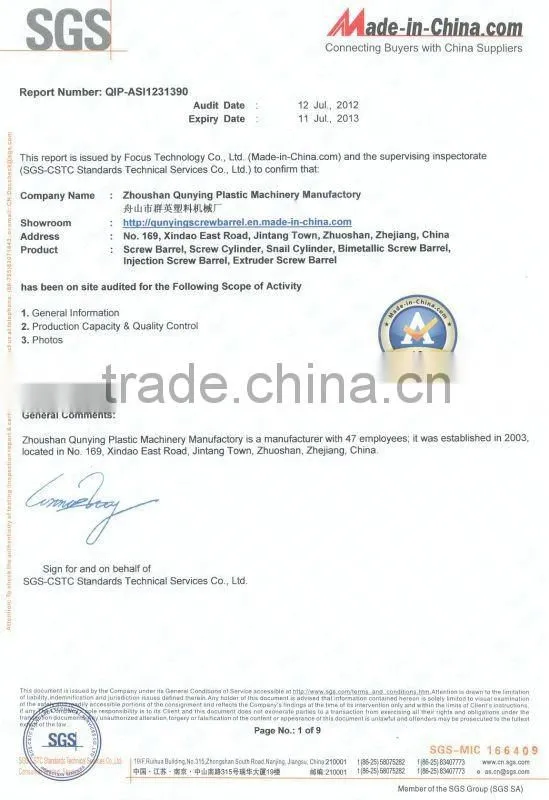

SGS
parallel twin screw barrel with bimetallic for extruder
We promise all our screw barrel are strictly quality controled as ISO 9001:2008 International Quality System&SGS System.


Like Former Prime Minister Wen Jiabao said in 2000,We should not only keep the quality with the word,but also to lead the world.

"QUNYING" Brand believe that Quality is the life, reputation is the cornerstone of development!

Choose QUNYING.
                                    That's your best choice!
