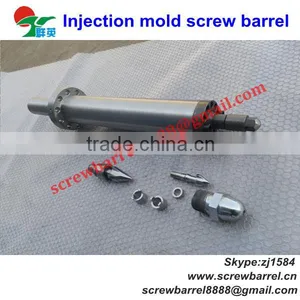

Screw Components Screw Tip Barrel Nozzle Injection
US$ 100 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
QunYing
Model Number:
QY-LG088
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Injection Screw Tip for Injection Screw Components ElementUS$ 100 - 10,000MOQ: 1 Set -
Bimetal Screw Barrel for Injection Molding MachinesUS$ 1 - 10,000MOQ: 1 Set
-
Injection Molding Bimetallic Barrel ScrewUS$ 200 - 20,000MOQ: 1 Piece
-
Huge Injection Screw and Cylinder(dia 215)US$ 500 - 20,000MOQ: 1 Piece
-
Injection Screws and Barrels Rebuilder and ManufacturerUS$ 100 - 100,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
QunYing
Model Number
QY-LG088
Product Description
Features specifications: screw tip barrel nozzle injection
Instructions for screw tip barrel nozzle injection :

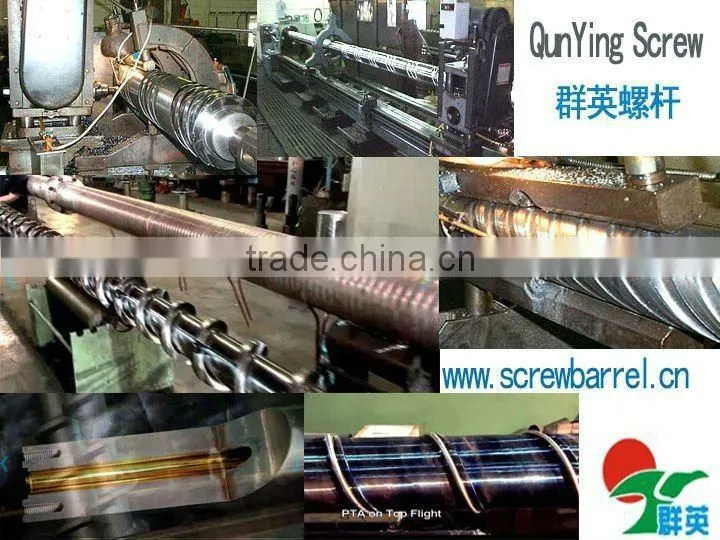

1.We are a professional company specialized in manufacturing many types of screw, the barrel can be applied on all types of injection moulding machine,rubber hot-feeding extruder, rubber cold-feeding extruder, pin barrel cold feed extruder, plastic extruder with different specifications.
2.The models of screw include:
2.The models of screw include:
Variable pitch and variable depth, variable pitch and equal depth, variable depth and equal pitch, and equal depth and pitch.
Groove multi-die type, composite type, mixing type and separating type.
Material:
Alloy-steel of high-quality
1)38 CrMoAIA(JIS SACM645)
2)42CrMo(AISI4140)
3)9Cr18MoV
4)CW6Mo5Cr4V2
5)SKD61
Heat-treatment
Nitriding treatment
Electroplate hard-chrome
High-frequency quenching
Spraying corrosion wear-resisting dual metal layers
Vacuum quenching
Technical Parameter for screw tip barrel nozzle injection |
| Steel Material | DIN 41CrA1Mo7 / AST M4140 / GB 38CrMoAlA |
| Deepness of Nitriding Layer | 0.7 mm -0.9 mm |
| Hardness of Nitriding | HV900 - HV1,000 |
| Nitriding Brittleness | ≤Grade 1 |
| Chromate plating |
Thickness 0.05 mm - 0.10 mm, hardness HV950 |
| Special treatment |
Carbide coating on screw flight and bimetallic barrel |
| Screw straight tolerance | 0.015 mm/m |
| Surface roughness | Ra 0.4μm |
